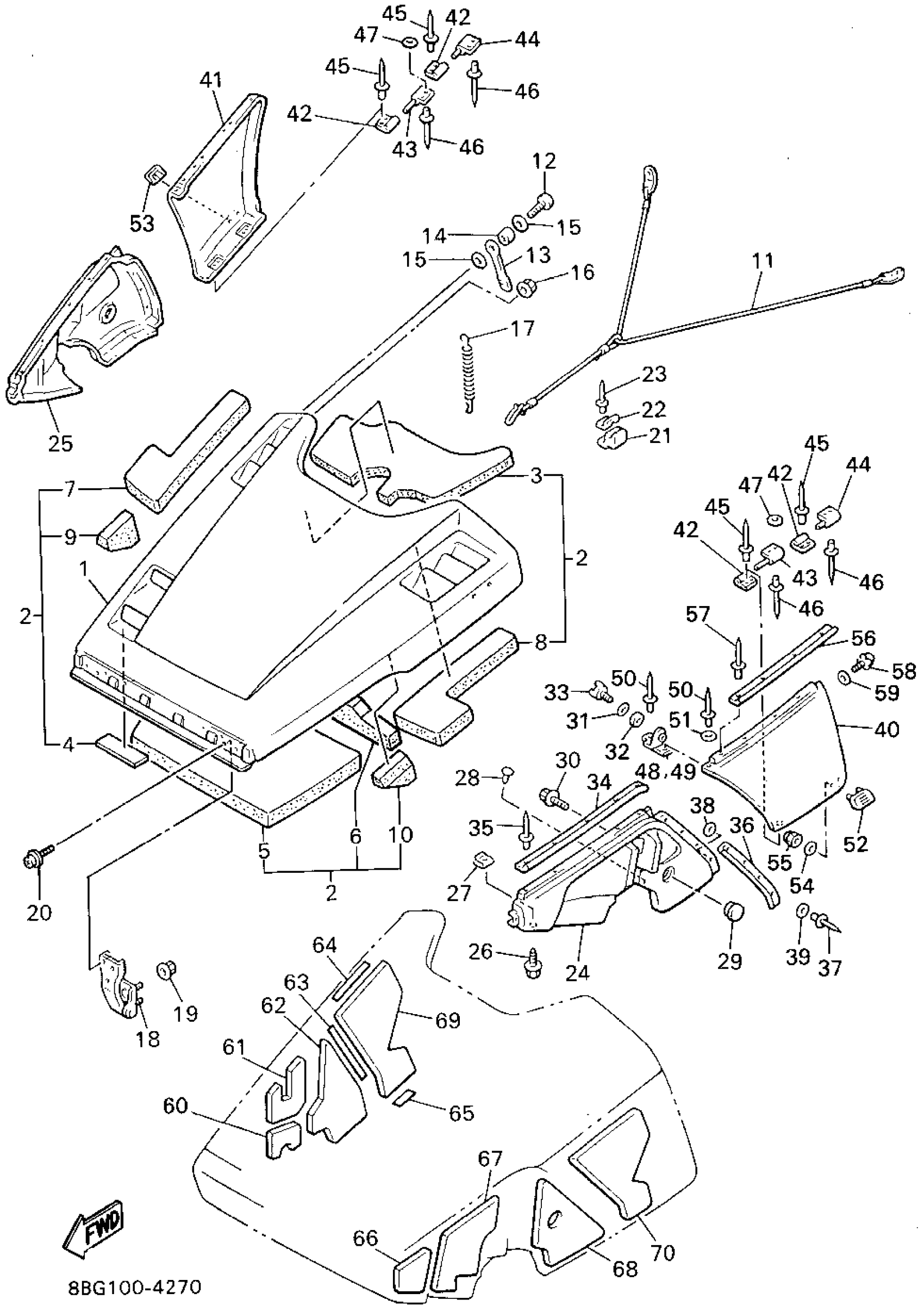

Yamaha PZ480EU (PHAZER II LE (ELEC START)) 8BG1 1994 SHROUD Diagram
#
1
SHROUD ASY
87H-Y7711-31-00
Unavailable
2
LINING SET
87H-W7726-00-00
Unavailable
3
. LINING, SHROUD 1
8V0-77261-01-00
Unavailable
4
. LINING, SHROUD 2
80L-77262-00-00
Unavailable
5
. LINING, SHROUD 7
8V0-77267-03-00
Unavailable
6
DAMPER, NOISE 16
80L-77276-00-00
Unavailable
7
. DAMPER, NOISE 11
8V0-77271-01-00
Unavailable
8
. DAMPER, NOISE 17
8V0-77277-01-00
Unavailable
9
. DAMPER, NOISE 18
8V0-77278-01-00
Unavailable
10
. DAMPER, NOISE 19
8V0-77279-00-00
Unavailable
11
STOPPER, SHROUD
88F-77118-00-00
Unavailable
12
SCREW, BINDING
98907-06030-00
$8.49
13
BODY, LATCH 1
8V0-77171-00-00
$21.99
14
COLLAR (420)
90387-06241-00
$8.49
15
WASHER, PLATE 8221447500
90201-06057-00
$5.60
16
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
17
CLAMP, ROD
80L-77159-00-00
Unavailable
18
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
19
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
20
SCREW, WITH WASHER
90159-05137-00
Unavailable
21
STOPPER
8V0-77188-00-00
Unavailable
22
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
23
RIVET, BLIND (J10)
90267-40077-00
Unavailable
24
HOOD 1
87H-21982-01-00
Unavailable
25
HOOD 2
87H-21983-00-00
Unavailable
26
BOLT, WITH WASHER
90119-06226-00
Unavailable
27
NUT, SPRING (26H)
90183-06023-00
Unavailable
28
RIVET(81E)
90269-05055-00
Unavailable
29
GROMMET
90480-40382-00
Unavailable
30
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
31
WASHER, PLATE
90201-06020-00
Unavailable
32
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
33
BOLT, WING (36F)
90122-06020-00
Unavailable
34
BUSH, RUBBER 1
87F-77515-00-00
Unavailable
35
RIVET(81E)
90269-05055-00
Unavailable
36
TRIM 1
8V0-2196T-00-00
Unavailable
37
RIVET, BLIND
90267-40029-00
Unavailable
38
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
39
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
40
HOOD 3
80L-2197H-00-00
Unavailable
41
HOOD 4
80L-2198H-00-00
Unavailable
42
BRACKET, 1
88F-2194X-00-00
Unavailable
43
BRACKET 2
88R-2195X-00-00
Unavailable
44
BRACKET 3
88F-2196F-00-00
Unavailable
45
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
46
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
47
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
48
PROTECTOR 3 (LH)
87F-77553-01-00
Unavailable
49
PROTECTOR 4
87F-77554-01-00
Unavailable
50
RIVET, BLIND (8R4)
90267-48088-00
Unavailable
51
WASHER(1RW)
92907-05600-00
Unavailable
52
PROTECTOR 1
85L-77551-00-00
Unavailable
53
PROTECTOR 2
85L-77552-00-00
Unavailable
54
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
55
NUT, NYLON
95707-05300-00
Unavailable
56
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
57
RIVET(81E)
90269-05055-00
Unavailable
58
HOLDER, LATCH
8V0-77175-00-00
Unavailable
59
PLATE
4U5-2176E-00-00
Unavailable
60
LINING, SHROUD 5
87F-77265-01-00
Unavailable
61
LINING, SHROUD 6
87F-77266-01-00
Unavailable
62
DAMPER, NOISE 16
87F-77276-01-00
Unavailable
63
TAPE 1
8V0-7717E-01-00
Unavailable
64
TAPE 1
8V0-7717F-01-00
Unavailable
65
TAPE 3
82M-7717G-01-00
Unavailable
66
DAMPER, NOISE 12
87F-77272-00-00
Unavailable
67
DAMPER, NOISE 13
87F-77273-00-00
Unavailable
68
DAMPER, NOISE 14
87F-77274-00-00
Unavailable
69
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
70
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
