- PZ480EU (PHAZER II LE (ELEC START)) 8BG1 1994
ELECTRICAL 1

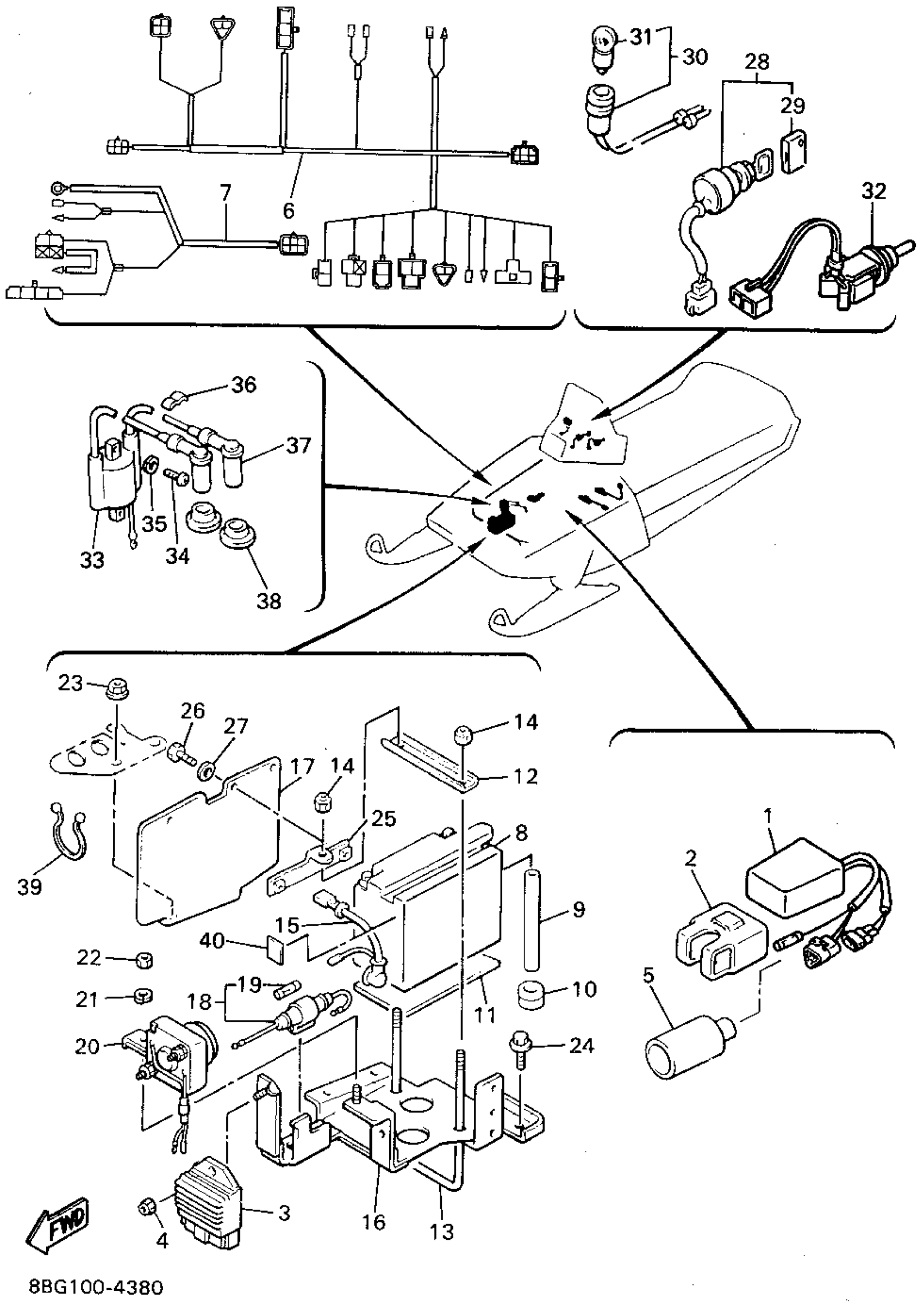

Yamaha PZ480EU (PHAZER II LE (ELEC START)) 8BG1 1994 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
8BL-85540-00-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
4
NUT, NYLON
95707-06300-00
$3.50
5
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
6
WIRE HARNESS ASSEMBLY
8BG-82590-00-00
Unavailable
7
WIRE HARNESS ASSEMBLY 2
8BG-82580-00-00
Unavailable
8
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
9
HOSE (L340)
90445-08684-00
$4.29
10
GROMMET(3AA)
90480-12497-00
Unavailable
11
. SEAT, BATTERY
82L-82122-00-00
Unavailable
12
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
13
. SCREW, FITTING
8J4-82133-00-00
Unavailable
14
NUT, NYLON
95707-06300-00
$3.50
15
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
16
BRACKET, BATTERY
89H-2199G-00-00
Unavailable
17
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
18
FUSE HOLDER ASSY
8BE-82150-00-00
Unavailable
19
FUSE (10A)
42X-82151-00-00
Unavailable
20
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
NUT, HEXAGON
95380-06600-00
Unavailable
23
NUT, U FLANGE
95604-06200-00
Unavailable
24
BOLT, FLANGE
95817-06010-00
Unavailable
25
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
26
BOLT (682)
97095-05010-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
29
CAP, KEY
526-82579-00-00
Unavailable
30
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
31
. BULB (12V5W)
8V0-85353-00-00
Unavailable
32
SWITCH
8BF-82917-00-00
Unavailable
33
IGNITION COIL ASSY
8AB-82310-07-00
Unavailable
34
SCREW PAN HEAD
98580-06020-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
CLAMP, CORD
861-82361-00-00
Unavailable
37
PLUG CAP ASSY
85G-82370-20-00
Unavailable
38
SEAL, PLUG CAP
8V0-82372-00-00
Unavailable
39
CLAMP (3Y2)
90464-16039-00
Unavailable
40
DAMPER
22F-2139X-00-00
Unavailable
