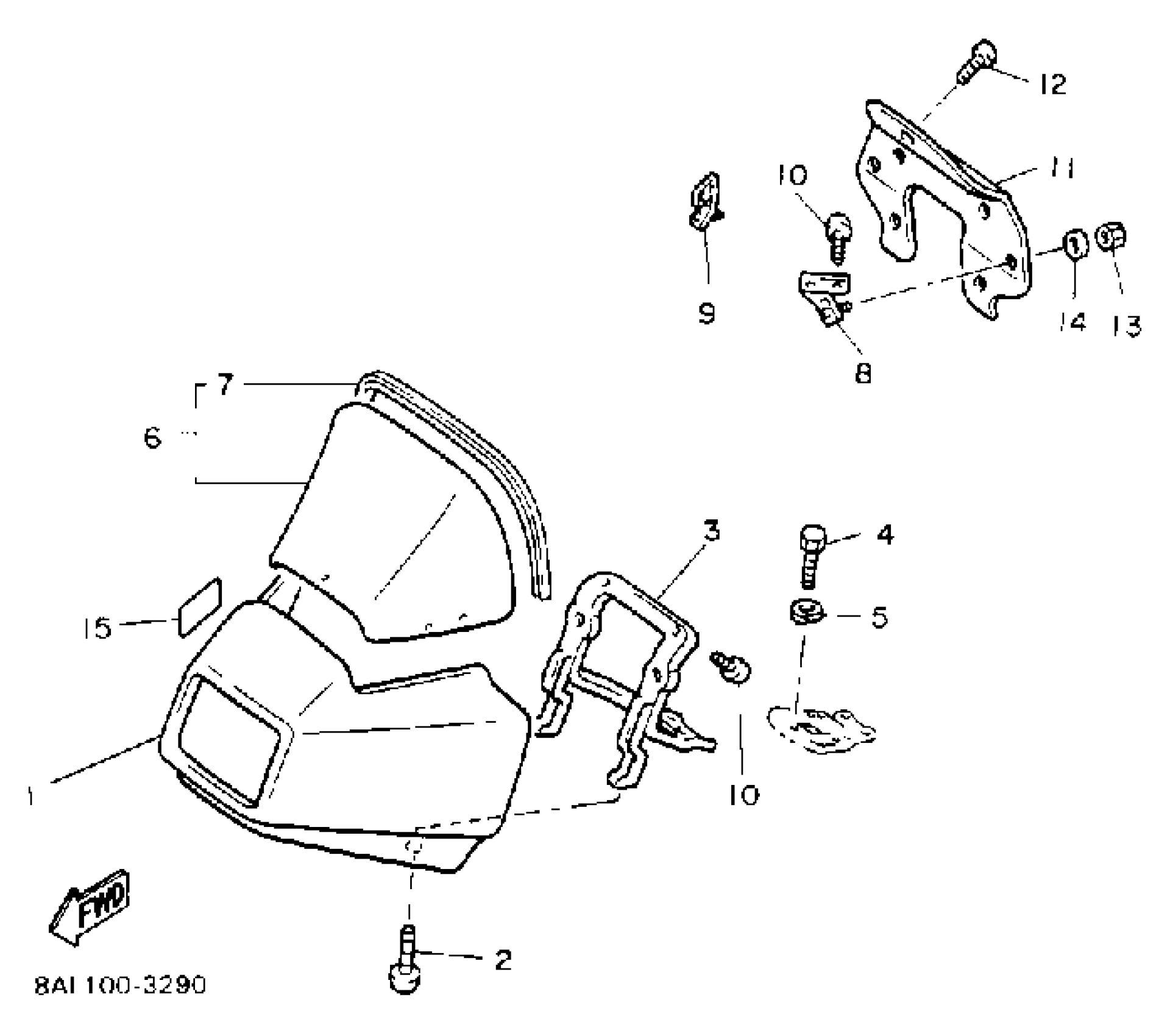

Yamaha PZ480ET (PHAZER II LE (ELEC START)) 8AL1 1993 WINDSHIELD Diagram

#

Description
Price

1

FAIRING

80L-77231-01-00

Unavailable

1

FAIRING 1

86F-77231-00-00

Unavailable

2

SCREW, BINDING

98907-06010-00

$1.65

3

STAY, FAIRING

8V0-77241-00-00

Unavailable

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WINDSHIELD

8BH-77210-00-XX

Unavailable

7

TRIM,UPPER

87K-77213-00-00

Unavailable

8

WASHER 1

8X9-77218-00-00

Unavailable

9

WASHER 2

8X9-77219-00-00

Unavailable

10

SCREW, PAN HEAD

98502-05006-00

$0.54

11

COVER, HEADLIGHT

8X9-77251-00-00

Unavailable

12

SCREW, BINDING (8J0)

90154-05005-00

$4.73

13

NUT, CROWN(8V0)

90176-05059-00

$2.44

14

WASHER PLATE (664)

90201-05556-00

Unavailable

15

EMBLEM,YAMAHA(PSG)

3WF-2153E-51-00

Unavailable

15

EMBLEM 16

89F-77372-00-00

Unavailable
