- PZ480ET (PHAZER II LE (ELEC START)) 8AL1 1993
TRACK SUSPENSION 1

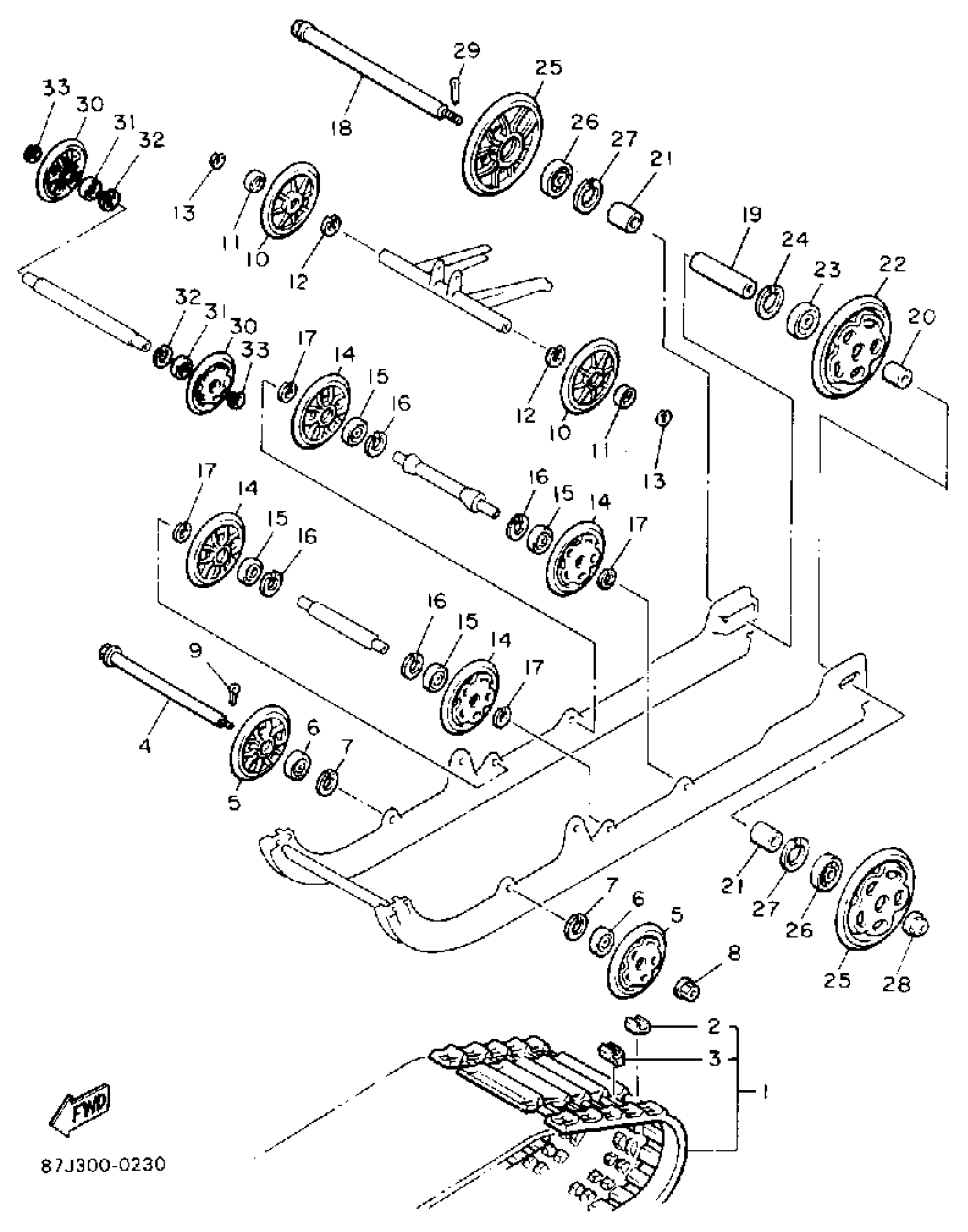

Yamaha PZ480ET (PHAZER II LE (ELEC START)) 8AL1 1993 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSEMBLY
87F-47110-01-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
SHAFT 5
82M-47487-00-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91490-30030-00
$8.49
10
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
15
BEARING(8AB)
93306-00444-00
$41.99
16
CIRCLIP(5U8)
99009-42500-00
$8.49
17
CIRCLIP(1AR)
99009-20400-00
$8.49
18
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
19
COLLAR
90387-20023-00
Unavailable
20
COLLAR
90387-204R3-00
Unavailable
21
COLLAR
90387-20022-00
Unavailable
22
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
23
BEARING(8AE)
93306-20469-00
Unavailable
24
CIRCLIP(48Y)
99009-47500-00
Unavailable
25
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
25
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
26
BEARING(8AE)
93306-20469-00
Unavailable
27
CIRCLIP(48Y)
99009-47500-00
Unavailable
28
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
29
PIN, COTTER
91490-30030-00
$8.49
30
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
31
BEARING(8AB)
93306-00444-00
$41.99
32
CIRCLIP(5U8)
99009-42500-00
$8.49
33
CIRCLIP(1AR)
99009-20400-00
$8.49
