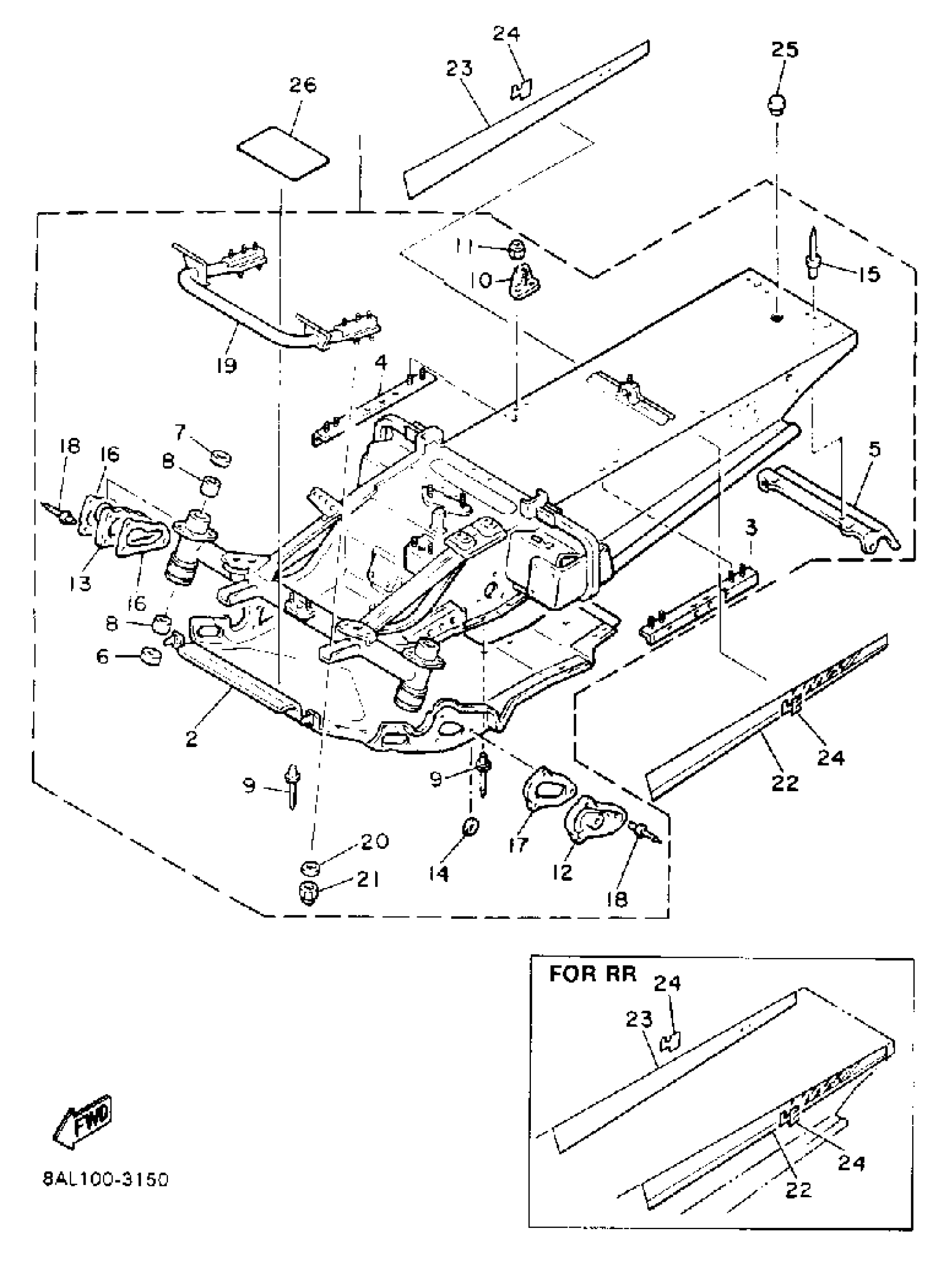

Yamaha PZ480ET (PHAZER II LE (ELEC START)) 8AL1 1993 FRAME Diagram
#
1
FRAME COMP
89F-21910-01-00
Unavailable
1
FRAME COMP
89H-21910-01-00
Unavailable
2
BELLY PAN
87F-21912-00-00
Unavailable
3
. PATCH 4
86M-21964-00-00
Unavailable
4
. PATCH 5
86M-21965-00-00
Unavailable
5
REINEFORCEMENT, FRAME REAR 1
8V0-21923-01-00
Unavailable
6
OIL SEAL (8M6)
93103-36117-00
$21.99
7
OIL SEAL (8M6)
93102-36232-00
$11.49
8
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
COVER 1
8M6-2198F-00-00
$31.99
13
. COVER 2
80L-2198G-00-00
Unavailable
14
WASHER, PLATE
90201-04027-00
$3.02
15
. RIVET
90266-04019-00
Unavailable
16
. WASHER 2
80L-77526-00-00
Unavailable
17
SPACER
8M6-21998-00-00
Unavailable
18
RIVET, BLIND
90267-40029-00
Unavailable
19
. BUMPER, FRONT 2
87F-77512-00-00
Unavailable
20
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
21
NUT, NYLON
95717-08300-00
Unavailable
22
EMBLEM 1
8AK-77351-00-00
Unavailable
22
EMBLEM 1
8AL-77351-00-00
Unavailable
23
EMBLEM 2
8AK-77352-00-00
Unavailable
23
EMBLEM 2
8AL-77352-00-00
Unavailable
24
EMBLEM 3
8AL-77143-00-00
Unavailable
24
EMBLEM 3
8AL-77143-10-00
Unavailable
25
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
26
SHIELD, HEAT
87F-2199H-00-00
Unavailable
