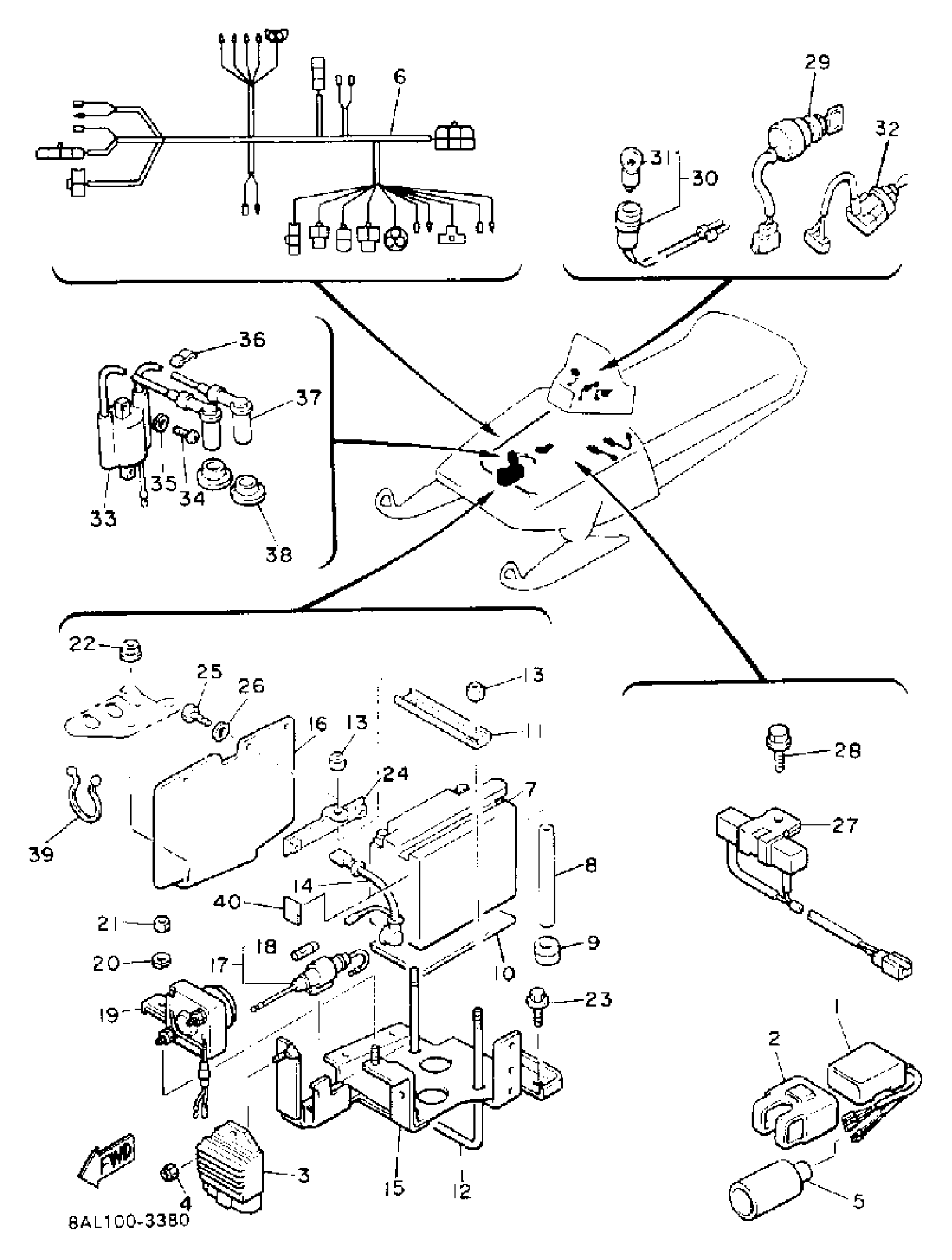

Yamaha PZ480ET (PHAZER II LE (ELEC START)) 8AL1 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

4

NUT, NYLON

95707-06300-00

$3.50

5

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

6

WIRE HARNESS ASSEMBLY

89H-82590-00-00

Unavailable

7

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

8

HOSE (L340)

90445-08684-00

$4.29

9

GROMMET(3AA)

90480-12497-00

Unavailable

10

. SEAT, BATTERY

82L-82122-00-00

Unavailable

11

PLATE, BATTERY FITTING

8J4-82136-00-00

Unavailable

12

. SCREW, FITTING

8J4-82133-00-00

Unavailable

13

NUT, NYLON

95707-06300-00

$3.50

14

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

15

BRACKET, BATTERY

89H-2199G-00-00

Unavailable

16

SHIELD, HEAT

8V0-2199H-00-00

Unavailable

17

FUSE HOLDER ASSY

1E6-82150-00-00

Unavailable

18

FUSE (10A)

1E6-82151-00-00

Unavailable

19

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

NUT, U FLANGE

95604-06200-00

Unavailable

23

BOLT, FLANGE

95812-06010-00

Unavailable

24

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

25

BOLT (682)

97095-05010-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

27

RESISTOR ASSEMBLY

89H-85370-00-00

Unavailable

28

BOLT, FLANGE

95812-06010-00

Unavailable

29

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

30

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

31

. BULB (12V5W)

8V0-85353-00-00

Unavailable

32

SWITCH

88H-82917-00-00

Unavailable

33

IGNITION COIL ASSY

8AB-82310-07-00

Unavailable

34

SCREW PAN HEAD

98580-06020-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

CLAMP, CORD

861-82361-00-00

Unavailable

37

PLUG CAP ASSY

85G-82370-20-00

Unavailable

38

SEAL, PLUG CAP

8V0-82372-00-00

Unavailable

39

CLAMP (3Y2)

90464-16039-00

Unavailable

40

DAMPER

22F-2139X-00-00

Unavailable
