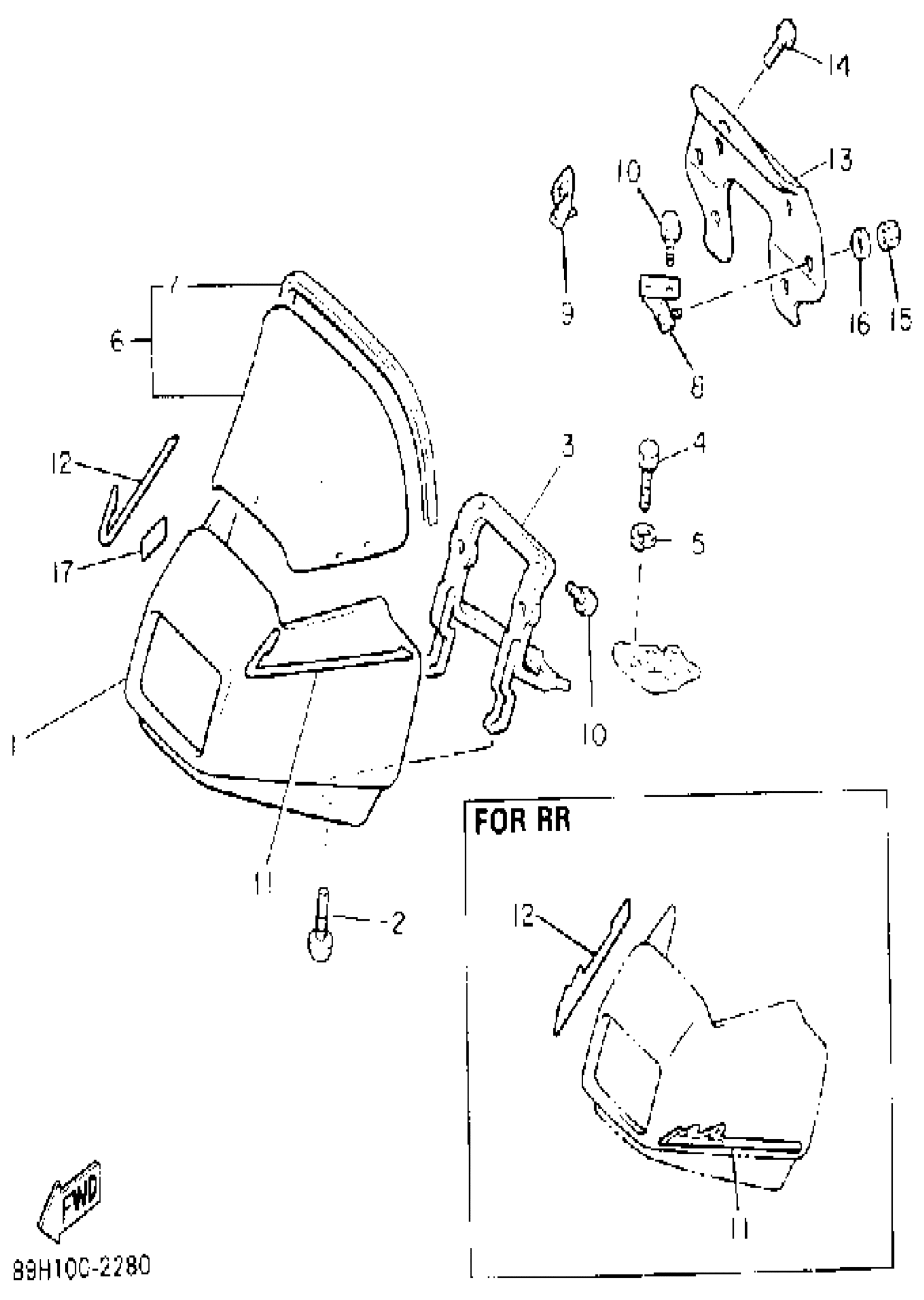

Yamaha PZ480ES (PHAZER II LE (ELEC START)) 89H1 1992 WINDSHIELD Diagram

#

Description
Price

1

FAIRING

80L-77231-01-00

Unavailable

1

FAIRING 1

86F-77231-00-00

Unavailable

2

SCREW, BINDING

98907-06010-00

$1.65

3

STAY, FAIRING

8V0-77241-00-00

Unavailable

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WINDSHIELD

8BH-77210-00-XX

Unavailable

7

TRIM,UPPER

87K-77213-00-00

Unavailable

8

WASHER 1

8X9-77218-00-00

Unavailable

9

WASHER 2

8X9-77219-00-00

Unavailable

10

SCREW, PAN HEAD

98502-05006-00

$0.54

11

STRIPE 1

89F-77281-00-00

Unavailable

11

STRIPE 1

89H-77281-00-00

Unavailable

12

STRIPE 2

89F-77282-00-00

Unavailable

12

STRIPE 2

89H-77282-00-00

Unavailable

13

COVER, HEADLIGHT

8X9-77251-00-00

Unavailable

14

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

15

NUT, CROWN(8V0)

90176-05059-00

Unavailable

16

WASHER PLATE (664)

90201-05556-00

Unavailable

17

EMBLEM,YAMAHA(PSG)

3WF-2153E-51-00

Unavailable
