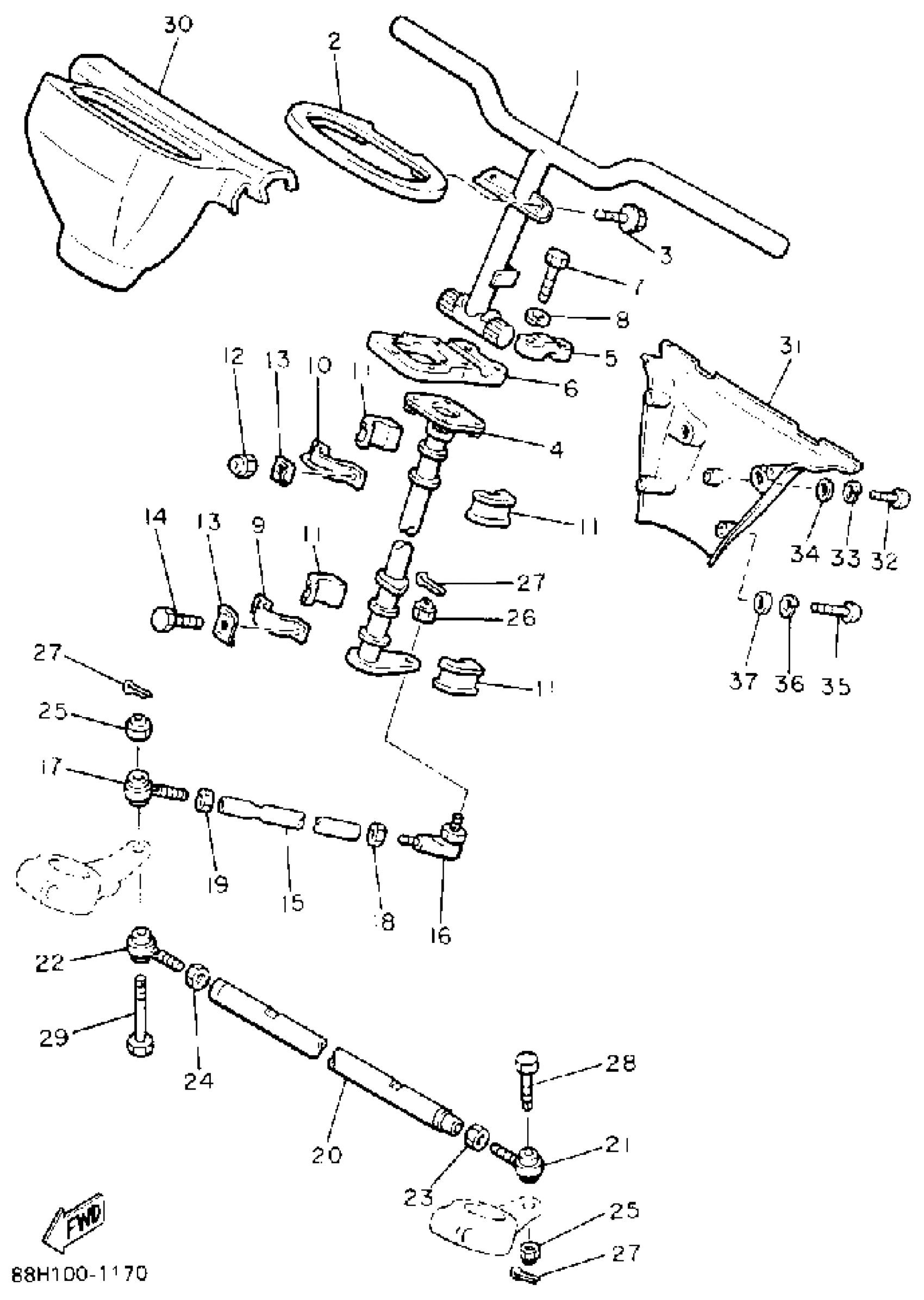

Yamaha PZ480ES (PHAZER II LE (ELEC START)) 89H1 1992 STEERING Diagram
#
1
COLUMN, STEERING
88H-23811-00-00
Unavailable
2
BRACKET 10
8V0-23878-00-00
Unavailable
3
BOLT, FLANGE
95812-06010-00
$2.98
4
COLUMN, STEERING 2
83V-23813-01-00
Unavailable
5
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
6
HOLDER, HANDLE UPPER
8V0-23814-01-00
Unavailable
7
BOLT, HEXAGON
97017-08055-00
$9.49
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
10
HOLDER, BEARING
84M-23872-00-00
Unavailable
11
BEARING, STEERING
8F3-23812-00-00
Unavailable
12
NUT, NYLON
95717-08300-00
$2.70
13
WASHER, LOCK 1
8AC-23894-01-00
$4.78
14
BOLT, HEXAGON
97017-08020-00
$9.49
15
ROD,STEERING RELAY
87F-23821-00-00
Unavailable
16
JOINT, UNIVERSAL 1
86X-23841-00-00
Unavailable
17
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
18
NUT (682)
95380-10700-00
Unavailable
19
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
20
ROD,TIE
89X-23831-00-00
Unavailable
21
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
22
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
23
NUT (682)
95380-10700-00
Unavailable
24
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
25
NUT, NYLON
95707-10300-00
Unavailable
26
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
27
PIN, COTTER
91490-25020-00
Unavailable
28
BOLT, WITH HOLE
90102-10031-00
Unavailable
29
BOLT
90109-10767-00
Unavailable
30
PAD, STEERING
8X9-23815-00-00
Unavailable
31
PAD,STEERING
80L-23817-02-00
Unavailable
32
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
33
WASHER(3SX)
92907-05100-00
Unavailable
34
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
35
SCREW, PAN HEAD
98517-05030-00
Unavailable
36
WASHER(3SX)
92907-05100-00
Unavailable
37
WASHER(1RW)
92907-05600-00
Unavailable
