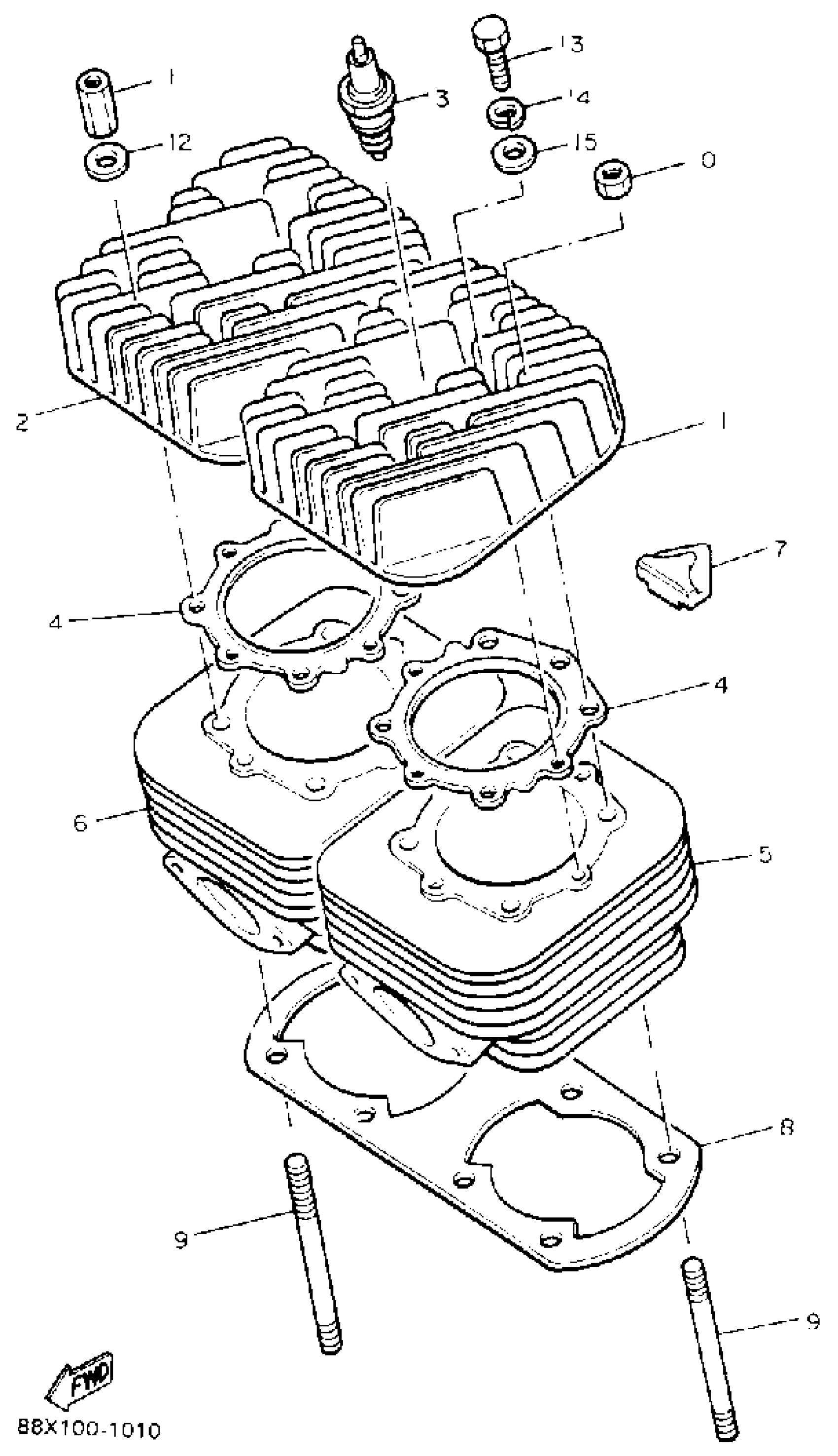

Yamaha PZ480ES (PHAZER II LE (ELEC START)) 89H1 1992 CYLINDER Diagram

HEAD, CYLINDER 1

8V0-11111-01-00

Unavailable

HEAD, CYLINDER 2

8V0-11121-01-00

Unavailable

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

$4.03

GASKET, CYLINDER HEAD 1

87F-11181-00-00

$28.27

CYLINDER 1

8V0-11311-01-00

Unavailable

CYLINDER 2

8V0-11321-01-00

Unavailable

SEAL, CYLINDER 1

8V0-11355-00-00

Unavailable

GASKET, CYLINDER

88F-11351-01-00

$16.69

BOLT, STUD

95617-08740-00

Unavailable

NUT, FLANGE

95704-08500-00

$6.09

NUT (8H8)

90179-08269-00

$10.39

WASHER, PLATE (397)

90201-08100-00

$5.87

BOLT (682)

97095-06040-00

$2.80

WASHER, SPRING

92995-06100-00

$2.83

WASHER, PLAIN (646)

92990-06600-00

$2.43
