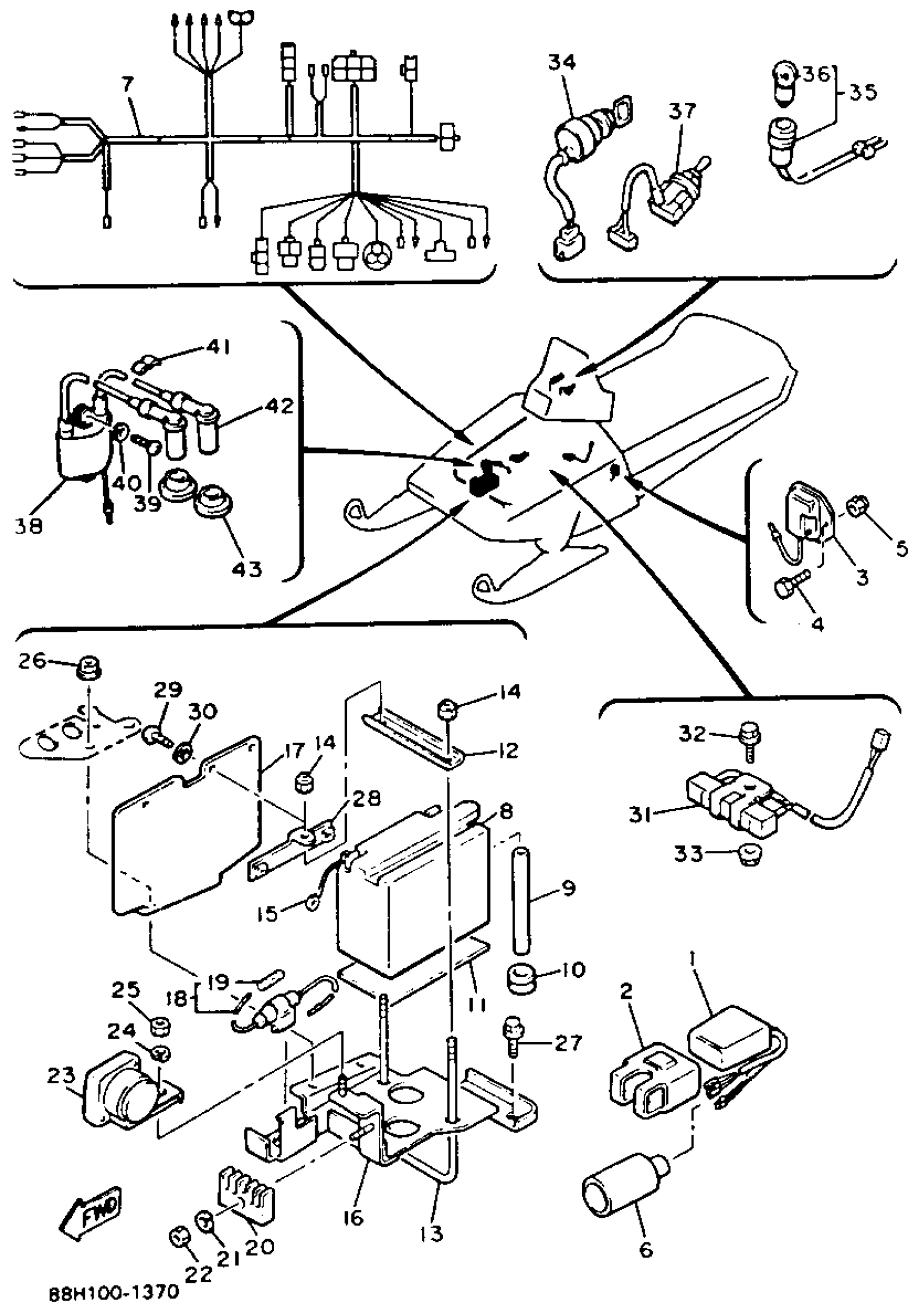

Yamaha PZ480ER (PHAZER II LE (ELEC START)) 88H1 1991 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

7

WIRE HARNESS ASSEMBLY

88H-82590-00-00

Unavailable

8

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

9

HOSE (L340)

90445-08684-00

$4.29

10

GROMMET(3AA)

90480-12497-00

Unavailable

11

. SEAT, BATTERY

82L-82122-00-00

Unavailable

12

PLATE, BATTERY FITTING

8J4-82136-00-00

Unavailable

13

. SCREW, FITTING

8J4-82133-00-00

Unavailable

14

NUT, NYLON

95707-06300-00

$3.50

15

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

16

BRACKET, BATTERY

87H-2199G-00-00

Unavailable

17

SHIELD, HEAT

8V0-2199H-00-00

Unavailable

18

FUSE HOLDER ASSY

1E6-82150-00-00

Unavailable

19

FUSE (10A)

1E6-82151-00-00

Unavailable

20

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable

26

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

27

BOLT, FLANGE

95817-06012-00

Unavailable

28

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

29

BOLT (682)

97095-05010-00

Unavailable

30

WASHER, PLAIN (646)

92990-05600-00

Unavailable

31

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

34

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

35

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

36

. BULB (12V5W)

8V0-85353-00-00

Unavailable

37

SWITCH

88H-82917-00-00

Unavailable

38

IGNITION COIL ASSY

85T-82310-06-00

Unavailable

39

SCREW PAN HEAD

98580-06020-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

CLAMP, CORD

861-82361-00-00

Unavailable

42

PLUG CAP ASSY

85G-82370-20-00

Unavailable

43

SEAL, PLUG CAP

8V0-82372-00-00

Unavailable
