- PZ480ER (PHAZER II LE (ELEC START)) 88H1 1991
CRANKSHAFT-PISTON

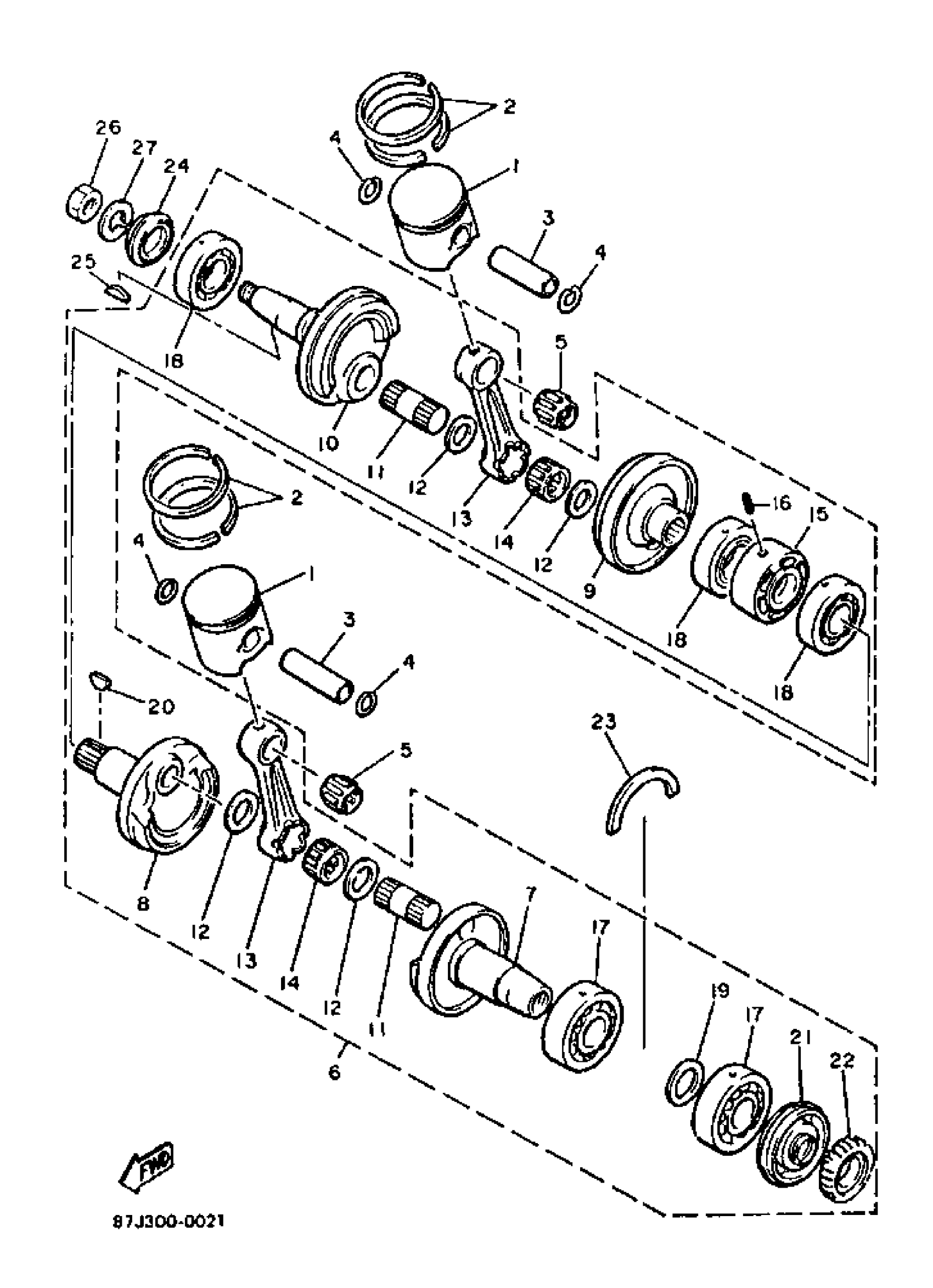

Yamaha PZ480ER (PHAZER II LE (ELEC START)) 88H1 1991 CRANKSHAFT-PISTON Diagram
#
1
PISTON (STD)
8V0-11631-00-96
$179.99
1
PISTON 1 O/S 0.25 (0.25MM O/S)
8V0-11635-00-00
Unavailable
1
PISTON 2 O/S 0.50 (0.50MM O/S)
8V0-11636-00-00
Unavailable
2
PISTON RING SET
8V0-11601-00-00
$106.99
2
PISTON RINGSET 1ST (1ST O/S)
8V0-11601-10-00
Unavailable
2
PISTON RINGSET 2ND (2ND O/S)
8V0-11601-20-00
Unavailable
3
PIN, PISTON
818-11633-00-00
$31.99
4
CIRCLIP (2F1)
93450-19052-00
$7.49
5
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
6
CRANKSHAFT ASSEMBLY
89F-11400-00-00
Unavailable
7
CRANK 1
99999-02819-00
Unavailable
8
. CRANK 2
8V0-11422-00-00
Unavailable
9
. CRANK 3
8V0-11432-00-00
Unavailable
10
. CRANK 4
8V0-11442-00-00
Unavailable
11
. PIN, CRANK 1
857-11681-00-00
Unavailable
12
WASHER (152-11685-00)
90209-24073-00
Unavailable
13
. ROD, CONNECTING
8V0-11651-00-00
Unavailable
14
. BEARING, CYLINDRICAL
93310-424L8-00
Unavailable
15
. SEAL, LABYRINTH 1
8V0-11515-01-00
Unavailable
16
PIN (2H7)
93603-10049-00
Unavailable
17
BEARING
93306-38201-00
Unavailable
18
BEARING(8V0)
93306-20633-00
Unavailable
19
. WASHER, PLATE
90201-327F7-00
Unavailable
20
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
21
OIL SEAL (8V0)
93103-32151-00
Unavailable
22
GEAR, PUMP DRIVE
8K2-13178-00-00
Unavailable
23
CIRCLIP
93450-78091-00
Unavailable
24
OIL SEAL(83V)
93103-32155-00
Unavailable
25
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
26
NUT
90170-16425-00
Unavailable
27
WASHER(JN5)
92907-16100-00
Unavailable
