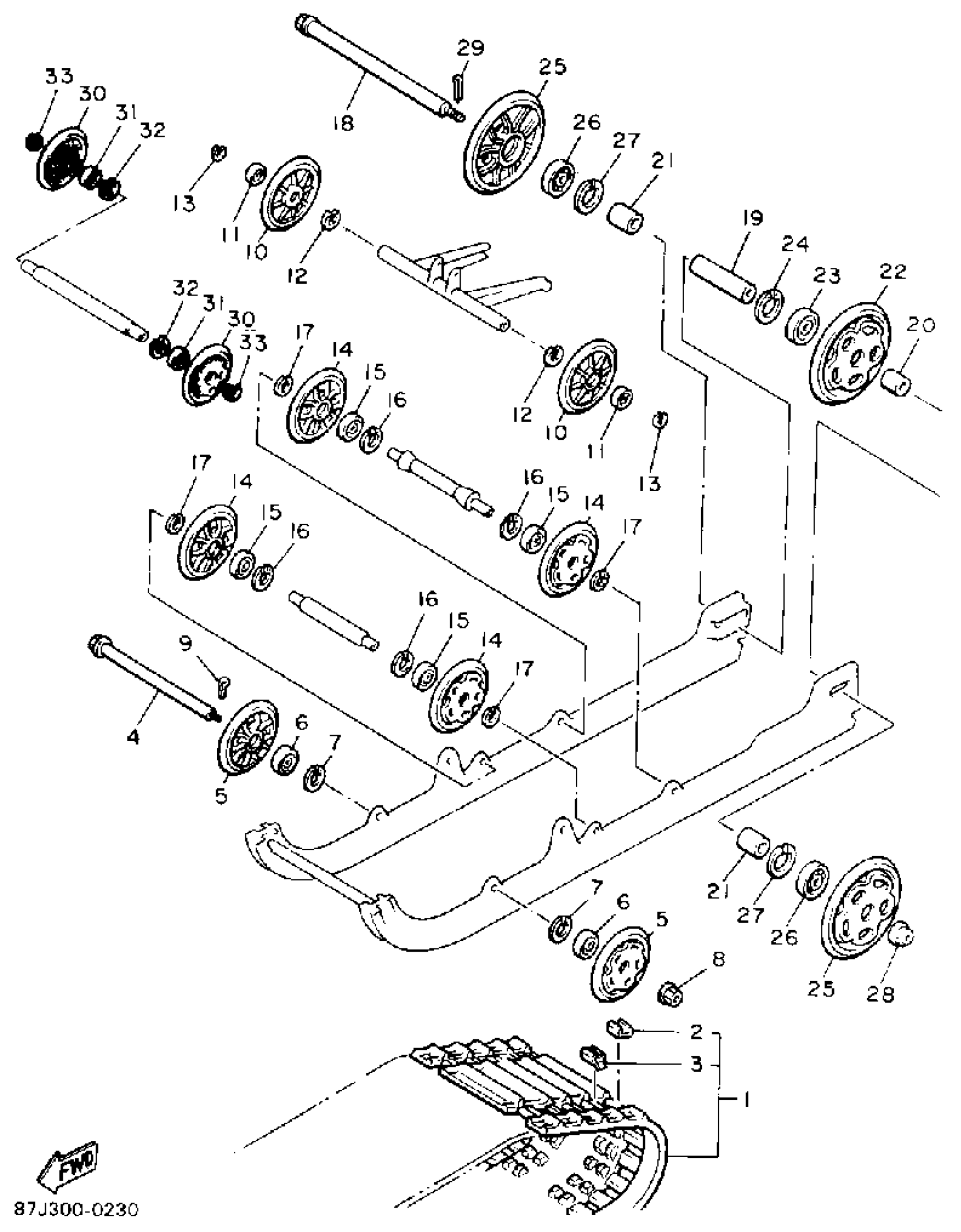

Yamaha PZ480EP (PHAZER II LE (ELEC START)) 87H1 1990 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

87F-47110-01-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

CIRCLIP(5U8)

99009-42500-00

$8.49

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

9

PIN, COTTER

91490-30030-00

$8.49

10

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

CIRCLIP(1AR)

99009-20400-00

$8.49

18

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

19

COLLAR

90387-20023-00

Unavailable

20

COLLAR

90387-204R3-00

Unavailable

21

COLLAR

90387-20022-00

Unavailable

22

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

23

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

24

CIRCLIP(48Y)

99009-47500-00

Unavailable

25

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

26

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

27

CIRCLIP(48Y)

99009-47500-00

Unavailable

28

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

29

PIN, COTTER

91490-30030-00

$8.49

30

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

31

BEARING(8AB)

93306-00444-00

$41.99

32

CIRCLIP(5U8)

99009-42500-00

$8.49

33

CIRCLIP(1AR)

99009-20400-00

$8.49
