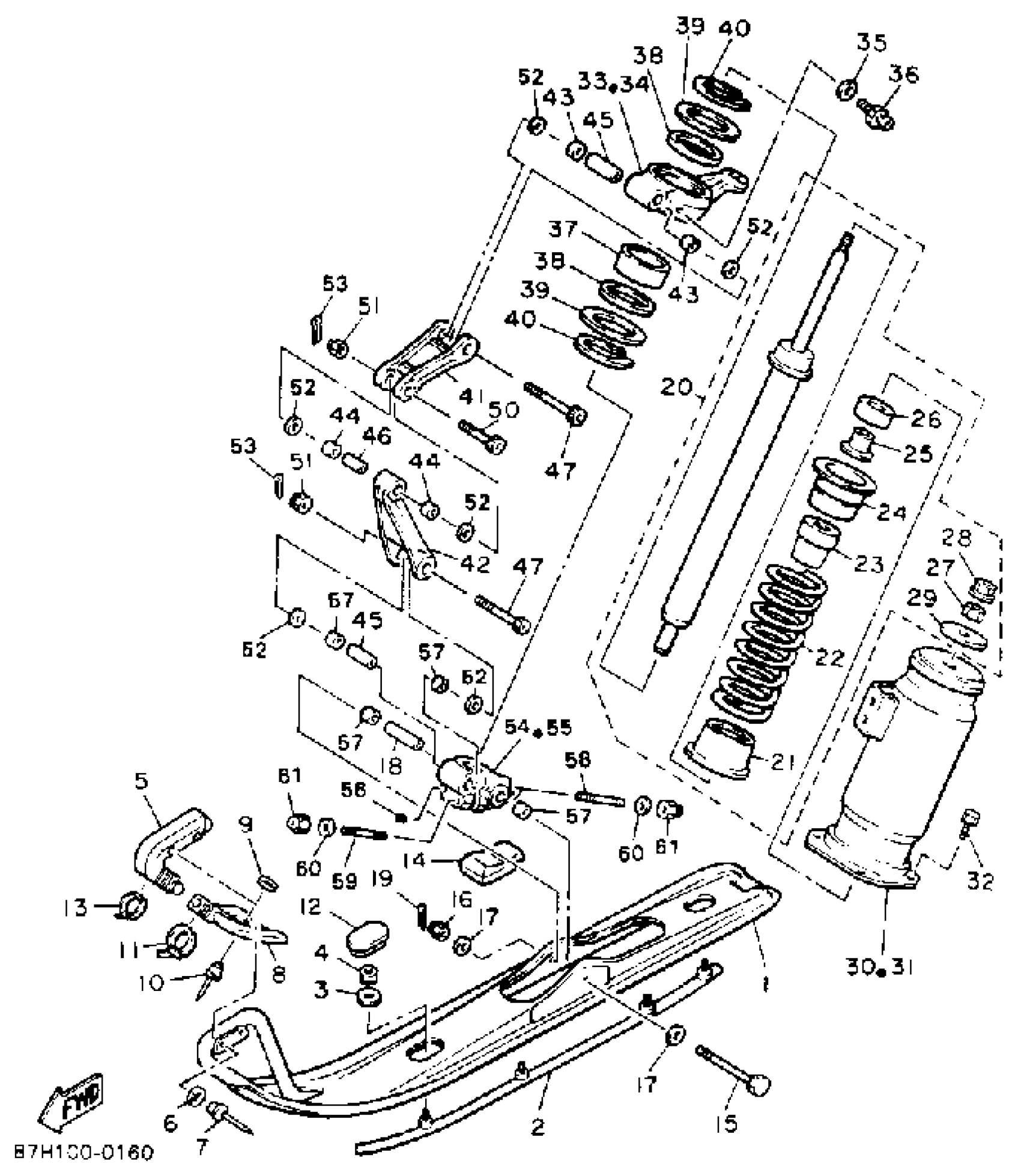

Yamaha PZ480EP (PHAZER II LE (ELEC START)) 87H1 1990 SKI Diagram
#
1
SKI 1 (88F-23710-00-00)
88F-23710-01-00
Unavailable
2
SKI RUNNER,1
VMX-23731-01-XX
Unavailable
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
NUT, U
95617-08100-00
$9.49
5
PROTECTOR, SKI
8M6-23747-00-00
Unavailable
6
WASHER, PLATE
90201-042E0-00
$7.49
7
RIVET, BLIND
90267-40029-00
$8.49
8
PROTECTOR, SKI 2
8V0-23748-00-00
Unavailable
9
WASHER, PLATE
90201-042E0-00
$7.49
10
RIVET, BLIND (8V0)
90267-40110-00
$12.49
11
BAND
1UA-82591-00-00
$4.78
12
CAP 1
8V0-23741-00-00
Unavailable
13
BAND
1UA-82591-00-00
$4.78
14
STOPPER 1
87F-23743-09-00
Unavailable
15
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
16
NUT, NYLON
95707-10300-00
Unavailable
17
WASHER(6TA)
92907-10600-00
Unavailable
18
COLLAR (8V0)
90387-106J3-00
Unavailable
19
PIN, COTTER
91490-20025-00
Unavailable
20
ABSORBER ASSY 1
87F-2376A-00-00
Unavailable
21
SEAT, SPRING 2
82M-23777-00-00
Unavailable
22
. SPRING, COMPRESSION
90501-787F4-00
Unavailable
23
. BUMP, STOP
87F-22493-00-00
Unavailable
24
PLATE, BACK UP
8AB-23788-00-00
Unavailable
25
COLLAR(82M)
90387-084R1-00
Unavailable
26
WASHER
82M-23779-00-00
Unavailable
27
. NUT
90170-08220-00
Unavailable
28
NUT(6L2)
95333-08600-00
Unavailable
29
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
30
HOLDER, ABSORBER (L.H)
87F-2376J-00-00
Unavailable
30
HOLDER, ABSORBER (LH)
87H-2376J-00-00
Unavailable
31
HOLDER, ABSORBER 2 (R.H)
87F-2377J-00-00
Unavailable
31
HOLDER, ABSORBER (RH)
87H-2377J-00-00
Unavailable
32
BOLT, HEXAGON
97017-06020-00
Unavailable
33
ARM, OUTSIDE 1 (LH)
87F-23851-00-00
Unavailable
34
ARM, OUTSIDE 2 (RH)
87F-23852-00-00
Unavailable
35
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
36
NIPPLE, GREASE
93700-06M03-00
Unavailable
37
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
38
OIL SEAL (8U7)
93109-53036-00
Unavailable
39
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
39
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
40
CIRCLIP (8L9)
93410-52061-00
Unavailable
41
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
42
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
43
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
44
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
45
COLLAR(89A)
90387-101Y9-00
Unavailable
46
COLLAR (8L0)
90387-100A4-00
Unavailable
47
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
48
BOLT, HEXAGON SOCKET HEAD
90110-10172-00
Unavailable
49
BOLT,HEX SKT HEAD
90110-10174-00
Unavailable
50
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
51
NUT, NYLON
95707-10300-00
Unavailable
52
WASHER PLATE 626441260000
90202-14037-00
Unavailable
53
PIN, COTTER
91490-20025-00
Unavailable
54
BRACKET 1
84M-2376E-00-00
Unavailable
55
BRACKET 2
84M-2377E-00-00
Unavailable
56
BOLT, SET (8K2)
90113-06039-00
Unavailable
57
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
58
BOLT, STUD 3
95617-08655-00
Unavailable
59
BOLT, STUD 3
95617-08640-00
Unavailable
60
.. WASHER, PLATE
92990-08600-00
Unavailable
61
NUT, NYLON
95717-08300-00
Unavailable
