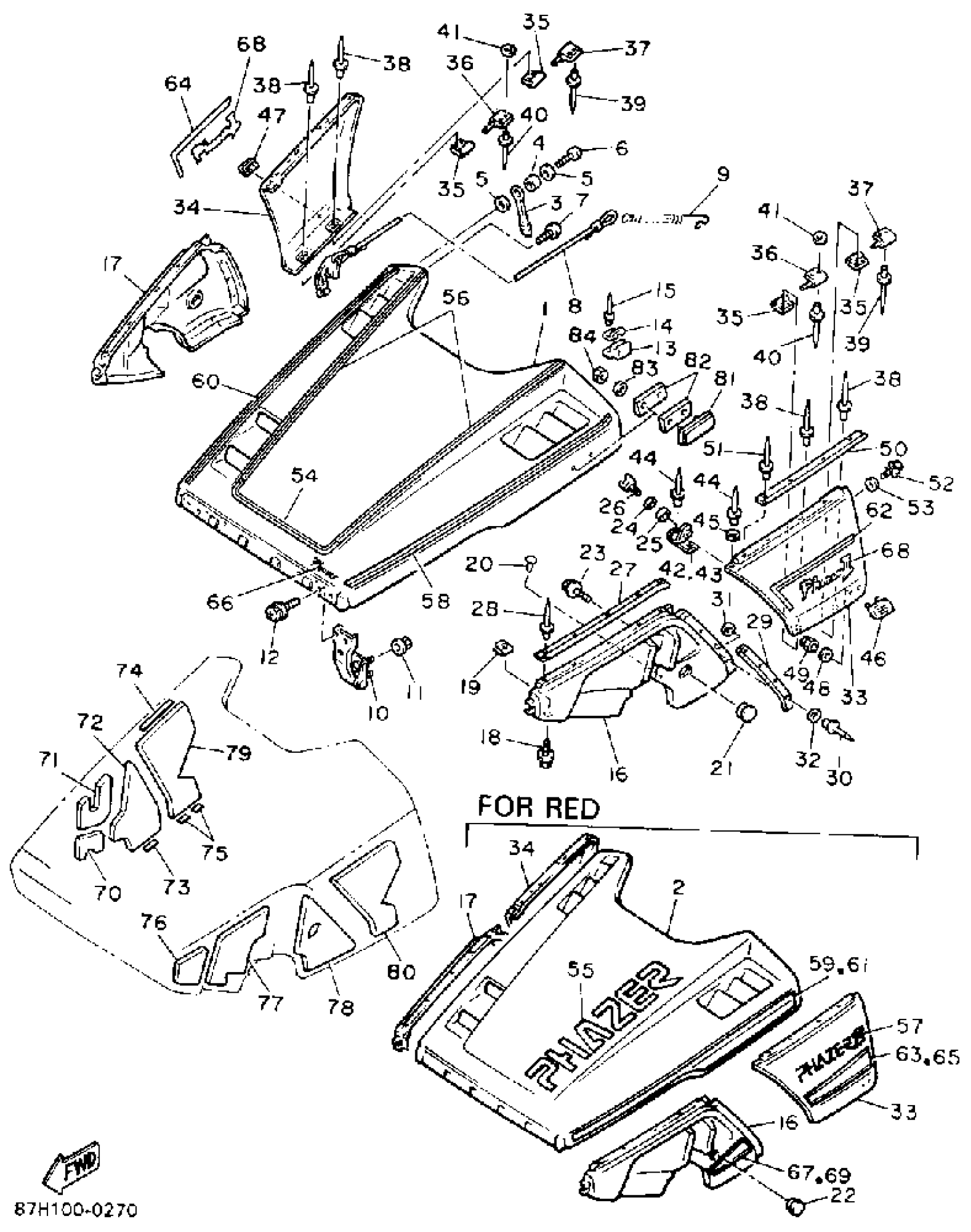

Yamaha PZ480EP (PHAZER II LE (ELEC START)) 87H1 1990 SHROUD Diagram
#
1
SHROUD ASY
87H-W7714-00-00
Unavailable
2
SHROUD ASSEMBLY.
87F-W7714-00-00
Unavailable
3
BODY, LATCH 1
8V0-77171-00-00
$21.99
4
COLLAR (420)
90387-06241-00
$8.49
5
WASHER, PLATE 8221447500
90201-06057-00
$5.60
6
SCREW, BINDING
98907-06025-00
$8.49
7
SCREW, BINDING
98907-06012-00
$9.49
8
STOPPER, SHROUD
80L-77118-01-00
Unavailable
9
CLAMP, ROD
80L-77159-00-00
Unavailable
10
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, WITH WASHER
90159-05137-00
Unavailable
13
STOPPER
8V0-77188-00-00
Unavailable
14
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
15
RIVET, BLIND
90267-40029-00
$8.49
16
HOOD 1
87F-21982-01-00
Unavailable
16
HOOD 1
87H-21982-01-00
Unavailable
17
HOOD 2
87F-21983-00-00
Unavailable
17
HOOD 2
87H-21983-00-00
Unavailable
18
BOLT, WITH WASHER
90119-06226-00
Unavailable
19
NUT, SPRING (26H)
90183-06023-00
Unavailable
20
RIVET(81E)
90269-05055-00
Unavailable
21
GROMMET
90480-40382-00
Unavailable
22
GROMMET
90480-40521-00
Unavailable
23
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
24
WASHER, PLATE
90201-06020-00
Unavailable
25
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
26
BOLT, WING (36F)
90122-06020-00
Unavailable
27
BUSH, RUBBER 1
87F-77515-00-00
Unavailable
28
RIVET(81E)
90269-05055-00
Unavailable
29
TRIM 1
8V0-2196T-00-00
Unavailable
30
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
31
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
32
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
33
HOOD 3
80L-2197H-00-00
Unavailable
33
HOOD 3
86F-2197H-70-00
Unavailable
34
HOOD 4
80L-2198H-00-00
Unavailable
34
HOOD 4
86F-2198H-70-00
Unavailable
35
BRACKET, 1
8V0-2194X-00-00
Unavailable
36
BRACKET 2
82M-2195X-00-00
Unavailable
37
BRACKET 2
88R-2195X-00-00
Unavailable
38
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
39
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
40
RIVET, BLIND
90267-48018-00
Unavailable
41
WASHER, PLATE
90201-04027-00
Unavailable
42
PROTECTOR 3 (LH)
87F-77553-01-00
Unavailable
43
PROTECTOR 4
87F-77554-01-00
Unavailable
44
RIVET, BLIND (8R4)
90267-48088-00
Unavailable
45
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
46
PROTECTOR 1
85L-77551-00-00
Unavailable
47
PROTECTOR 2
85L-77552-00-00
Unavailable
48
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
49
NUT, NYLON
95707-05300-00
Unavailable
50
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
51
RIVET(81E)
90269-05055-00
Unavailable
52
HOLDER, LATCH
8V0-77175-00-00
Unavailable
53
PLATE
4U5-2176E-00-00
Unavailable
54
STRIPE 1
87H-77281-00-00
Unavailable
55
EMBLEM 1
87F-77141-00-00
Unavailable
56
STRIPE 2
87H-77282-00-00
Unavailable
57
EMBLEM 2
87F-77142-01-00
Unavailable
58
STRIPE 4
87H-77284-00-00
Unavailable
59
STRIPE 1
87F-77281-00-00
Unavailable
60
STRIPE 5
87H-77285-00-00
Unavailable
61
STRIPE 2
87F-77282-00-00
Unavailable
62
STRIPE 6
87H-77286-00-00
Unavailable
63
EMBLEN SET
87F-W7735-00-00
Unavailable
64
STRIPE 7
87H-77287-00-00
Unavailable
65
EMBLEM 4
87F-77354-00-00
Unavailable
66
EMBLEM 1
87H-77141-00-00
Unavailable
67
EMBLEM 5
87F-77355-00-00
Unavailable
68
EMBLEM 2
87H-77142-01-00
Unavailable
69
EMBLEM 6
87F-77356-00-00
Unavailable
70
LINING, SHROUD 5
87F-77265-01-00
Unavailable
71
LINING, SHROUD 6
87F-77266-01-00
Unavailable
72
DAMPER, NOISE 16
87F-77276-01-00
Unavailable
73
TAPE 1
8V0-7717E-01-00
Unavailable
74
TAPE 1
8V0-7717F-01-00
Unavailable
75
TAPE 3
82M-7717G-01-00
Unavailable
76
DAMPER, NOISE 12
87F-77272-00-00
Unavailable
77
DAMPER, NOISE 13
87F-77273-00-00
Unavailable
78
DAMPER, NOISE 14
87F-77274-00-00
Unavailable
79
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
80
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
81
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
82
BASE, REFLECTOR
80E-85115-00-00
Unavailable
83
WASHER, PLAIN (646)
92990-05600-00
Unavailable
84
NUT, NYLON
95707-05300-00
Unavailable
