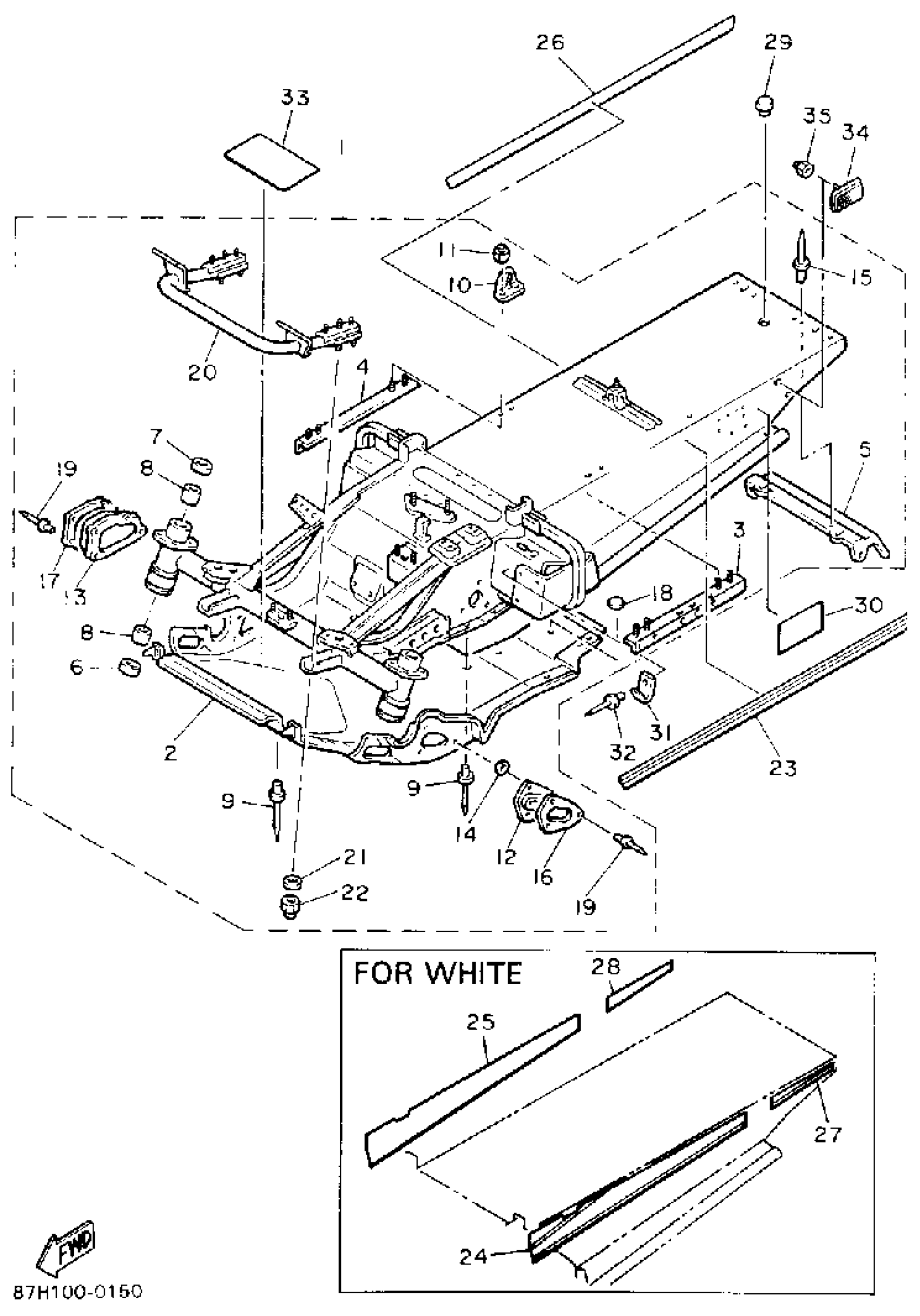

Yamaha PZ480EP (PHAZER II LE (ELEC START)) 87H1 1990 FRAME Diagram
#
1
FRAME
87F-21910-09-00
Unavailable
1
FRAME
87H-21910-00-00
Unavailable
2
BELLY PAN
87F-21912-00-00
Unavailable
3
. PATCH 4
86M-21964-00-00
Unavailable
4
. PATCH 5
86M-21965-00-00
Unavailable
5
REINEFORCEMENT, FRAME REAR 1
8V0-21923-01-00
Unavailable
6
OIL SEAL (8M6)
93103-36117-00
$21.99
7
OIL SEAL (8M6)
93102-36232-00
$11.49
8
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
COVER 1
8M6-2198F-00-00
$31.99
13
. COVER 2
80L-2198G-00-00
Unavailable
14
WASHER, PLATE
90201-04027-00
$3.02
15
. RIVET
90266-04019-00
Unavailable
16
. WASHER 1
80L-77525-00-00
Unavailable
17
. WASHER 2
80L-77526-00-00
Unavailable
18
SPACER
80F-21998-00-00
Unavailable
19
RIVET, BLIND
90267-40029-00
Unavailable
20
. BUMPER, FRONT 2
87F-77512-00-00
Unavailable
21
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
22
NUT, NYLON
95717-08300-00
Unavailable
23
STRIPE 10
87H-77291-00-00
Unavailable
24
EMBLEM 1
87F-77351-00-00
Unavailable
25
EMBLEM 2
87F-77352-00-00
Unavailable
26
STRIPE 11
87H-77292-00-00
Unavailable
27
EMBLEM 7
87F-77357-00-00
Unavailable
28
EMBLEM 8
87F-77358-00-00
Unavailable
29
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
30
INDICATOR 2
8K2-77742-00-00
Unavailable
31
CLAMP(83R)
90461-08113-00
Unavailable
32
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
33
SHIELD, HEAT
87F-2199H-00-00
Unavailable
34
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
35
NUT, NYLON
95707-05300-00
Unavailable
