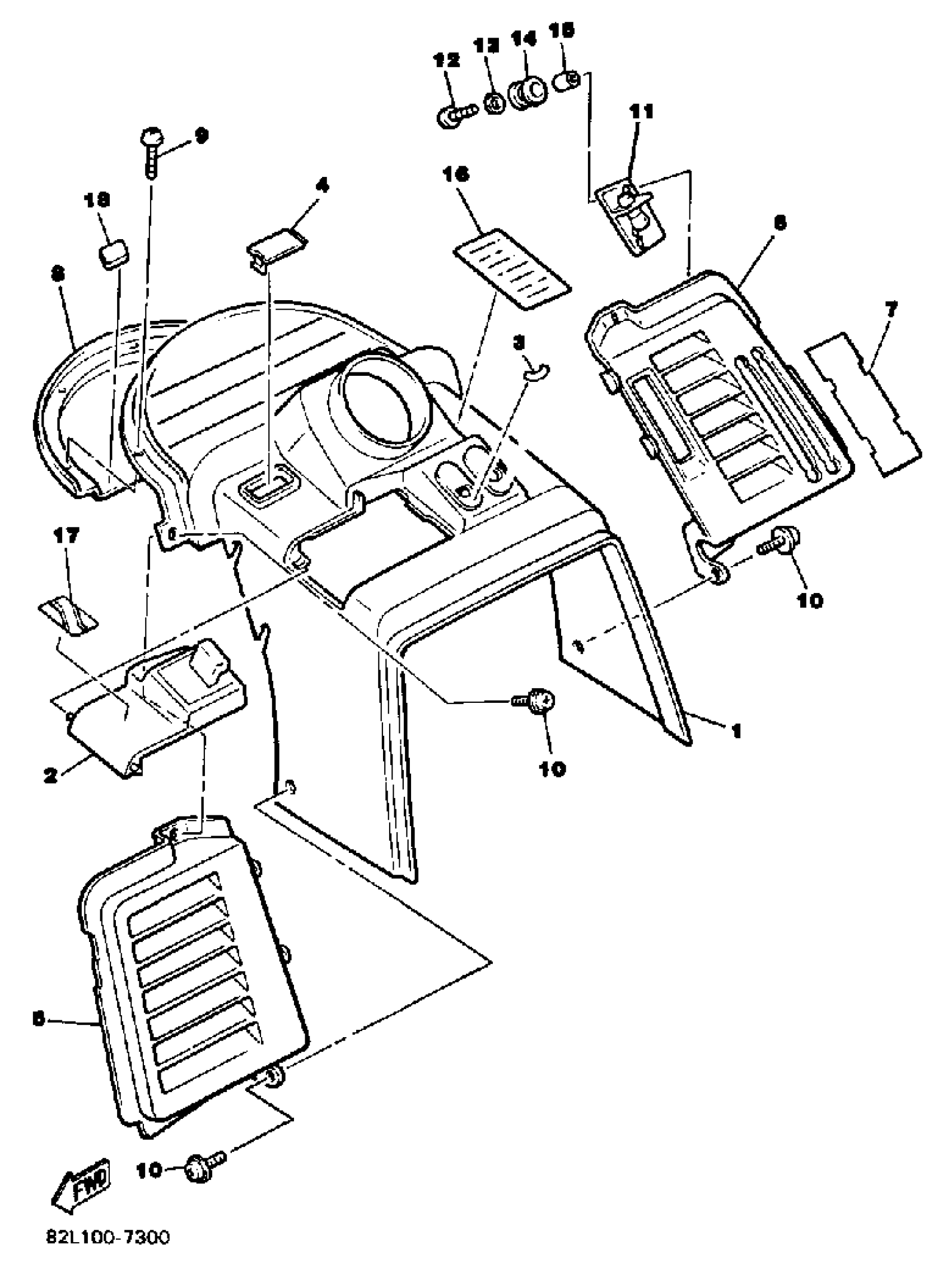

Yamaha PZ480EN (PHAZER DELUXE (ELEC START)) 86H1 1989 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

8X9-77711-01-00

Unavailable

PANEL, INSTRUMENT

8X9-77712-01-00

Unavailable

INDICATOR 2

8U9-77742-00-00

Unavailable

GROMMET, INSTRUMENT PANEL

8X9-77740-00-00

Unavailable

LOUVER 1

8X9-77131-00-00

Unavailable

LOUVER 2

8X9-77132-00-00

Unavailable

REFLECTOR 1

8V0-7716E-00-00

Unavailable

SHIELD 1

8V0-77731-00-00

Unavailable

SCREW, BINDING

98907-05012-00

$8.49

SCREW, WITH WASHER

90159-05137-00

Unavailable

BRACKET 1

80L-77721-00-00

Unavailable

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

WASHER PLATE 829771780000

90201-05033-00

$10.49

GROMMET(80K)

90480-13428-00

$8.49

COLLAR (26H)

90387-053H3-00

$2.22

LABEL, WARNING 3

80L-77763-00-00

Unavailable

ORMNT, INSTR PNL 1

86H-77715-00-00

Unavailable

SHIELD 1

81H-77731-00-00

Unavailable
