- PZ480EN (PHAZER DELUXE (ELEC START)) 86H1 1989
ELECTRICAL 1

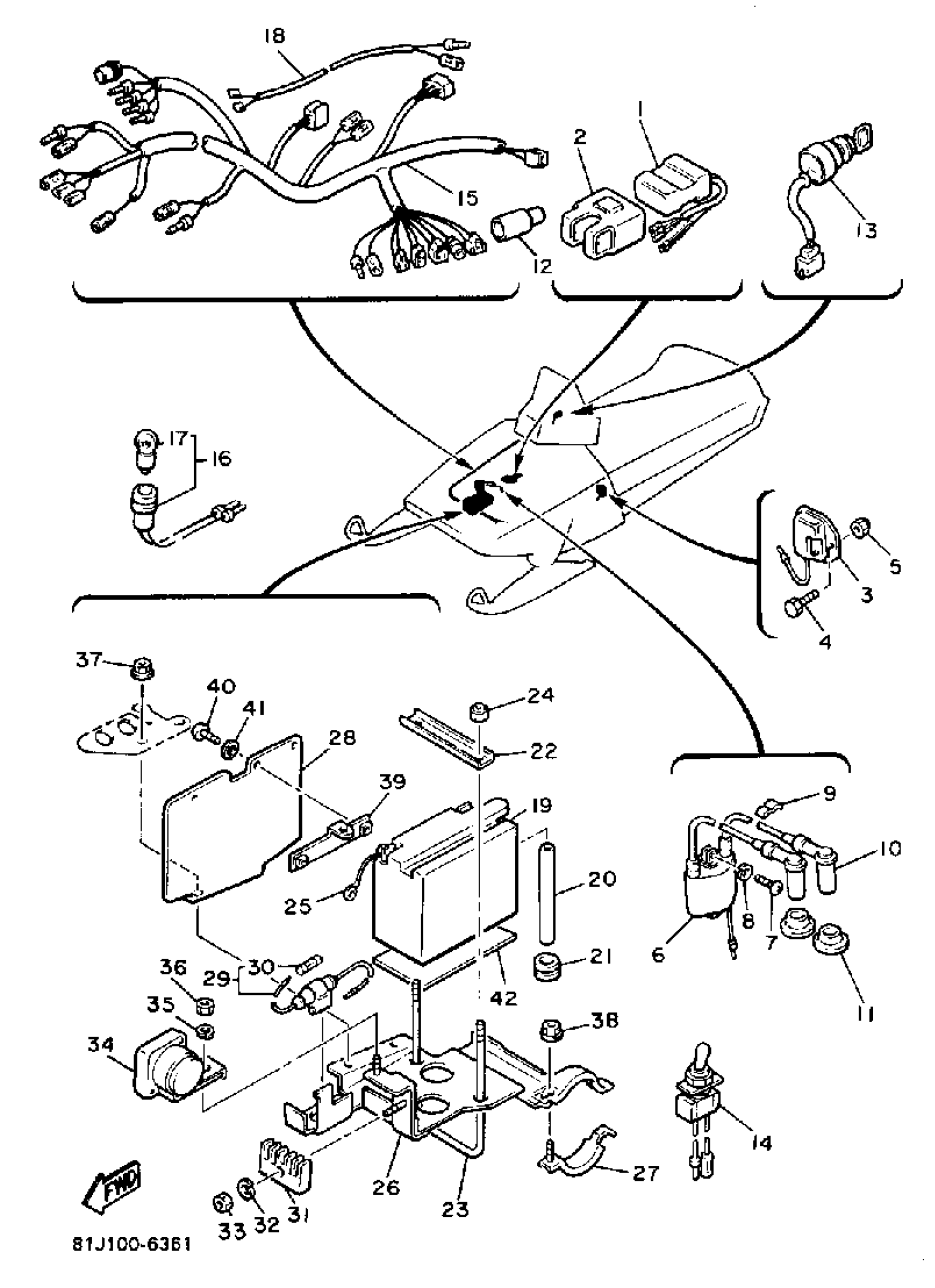

Yamaha PZ480EN (PHAZER DELUXE (ELEC START)) 86H1 1989 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
8V0-85540-21-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
4
BOLT(8CP)
97017-06014-00
$8.49
5
NUT, NYLON
95707-06300-00
$3.50
6
IGNITION COIL ASSY
85T-82310-06-00
$79.99
7
SCREW PAN HEAD
98580-06020-00
$8.49
8
WASHER, SPRING
92995-06100-00
Unavailable
9
CLAMP, CORD
861-82361-00-00
Unavailable
10
PLUG CAP ASSY
85G-82370-20-00
$34.99
11
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
12
COVER, CONNECTER
8Y0-82599-00-00
Unavailable
13
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
14
SWITCH
82J-82917-00-00
$105.99
15
WIRE HARNESS ASSEMBLY
83V-82590-20-00
Unavailable
16
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
17
. BULB (12V5W)
8V0-85353-00-00
Unavailable
18
WIRE, SUB-LEAD
80X-82318-00-00
Unavailable
19
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
20
HOSE (L340)
90445-08684-00
Unavailable
21
GROMMET 152845180000
90480-12013-00
Unavailable
22
PLATE, BATTERY FITTING
8J4-82136-00-00
Unavailable
23
. SCREW, FITTING
8J4-82133-00-00
Unavailable
24
NUT, NYLON
95707-06300-00
$3.50
25
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
26
BRACKET, BATTERY
8V0-2199G-00-00
Unavailable
27
PLATE, BATTERY FITTING
8V0-82136-00-00
Unavailable
28
SHIELD, HEAT
8V0-2199H-00-00
Unavailable
29
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
30
FUSE
682-82151-02-00
Unavailable
31
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
NUT, HEXAGON
95380-06600-00
Unavailable
34
. STARTER RELAY ASSY
8J9-81940-10-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
38
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
39
. BRACKET, BATTERY
8V0-82128-00-00
Unavailable
40
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
41
WASHER, PLAIN (646)
92990-05600-00
Unavailable
42
. SEAT, BATTERY
82L-82122-00-00
Unavailable
