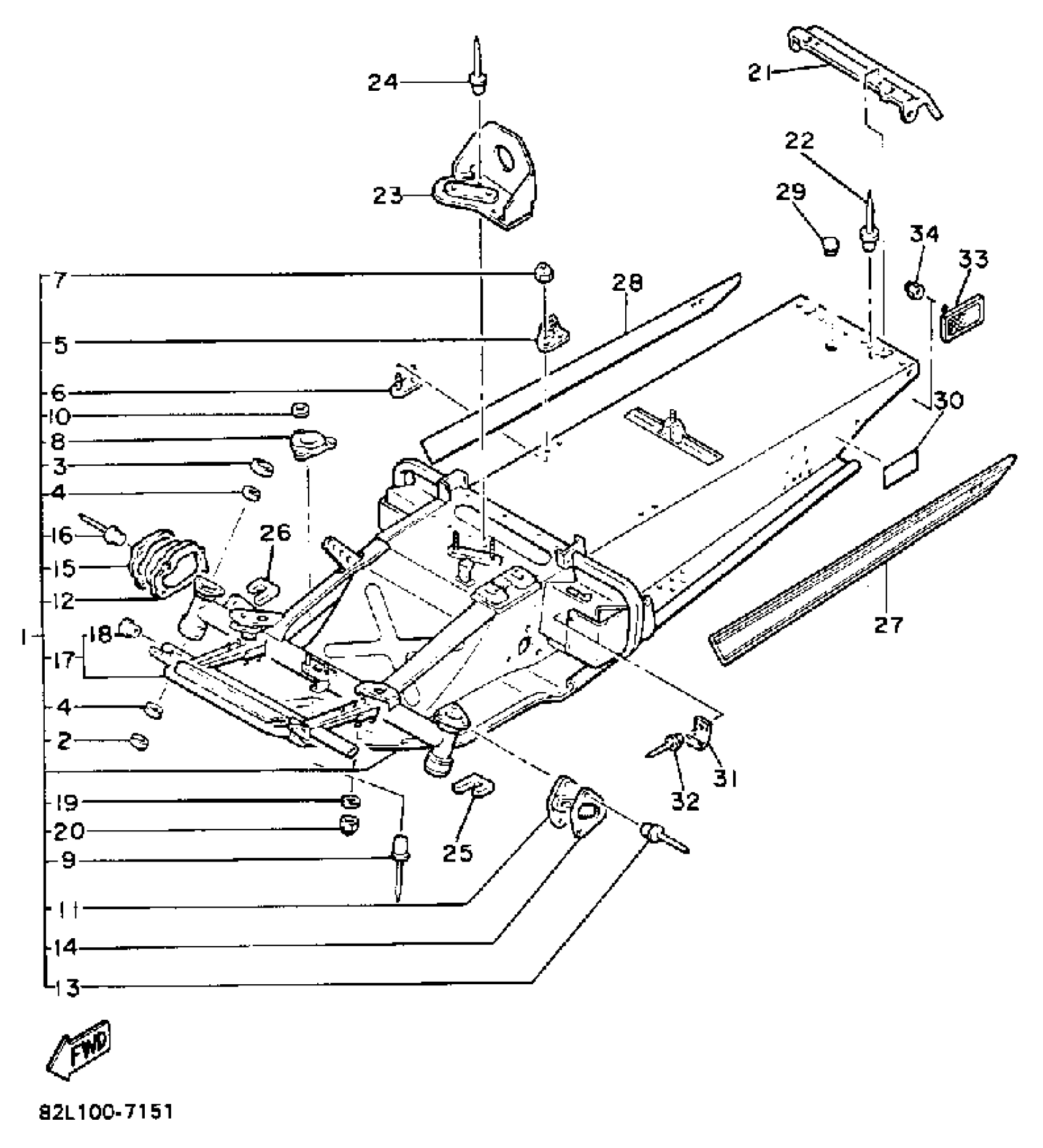

Yamaha PZ480EM (PHAZER DELUXE (ELEC START)) 83V 1988 FRAME Diagram
#
1
FRAME
83V-21910-01-00
Unavailable
2
. OIL SEAL
93103-44134-00
Unavailable
3
. OIL SEAL, SD-TYPE
93102-44280-00
Unavailable
4
. BUSH, BIMETAL FORMED
90384-44173-00
Unavailable
5
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
6
. PATCH 6
8V0-21966-00-00
Unavailable
7
NUT, NYLON
95707-06300-00
$3.50
8
. SPACER
80L-21998-00-00
Unavailable
9
RIVET, BLIND (8M6)
90267-48051-00
$1.49
10
WASHER, PLATE
90201-04027-00
$3.02
11
. COVER 1
80L-2198F-00-00
Unavailable
12
. COVER 2
80L-2198G-00-00
Unavailable
13
RIVET, BLIND(8R6)
90267-40105-00
Unavailable
14
. WASHER 1
80L-77525-00-00
Unavailable
15
. WASHER 2
80L-77526-00-00
Unavailable
16
RIVET, BLIND
90267-40029-00
Unavailable
17
. BUMPER, FRONT 2
82K-77512-00-00
Unavailable
18
.. BUSH, SOLID
90381-12047-00
Unavailable
19
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
20
NUT, NYLON
95717-08300-00
Unavailable
21
REINEFORCEMENT, FRAME REAR 1
8V0-21923-01-00
Unavailable
22
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
23
BRACKET, FUEL TNK 2
80L-2194R-00-00
Unavailable
24
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
25
TAPE 3
80L-7717G-00-00
Unavailable
26
TAPE 4
80L-7717H-00-00
Unavailable
27
EMBLEM 1
83V-77351-00-00
Unavailable
28
EMBLEM 2
83V-77352-00-00
Unavailable
29
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
30
INDICATOR 2
8K2-77742-00-00
Unavailable
31
CLAMP(83R)
90461-08113-00
Unavailable
32
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
33
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
34
NUT, NYLON
95707-05300-00
Unavailable
