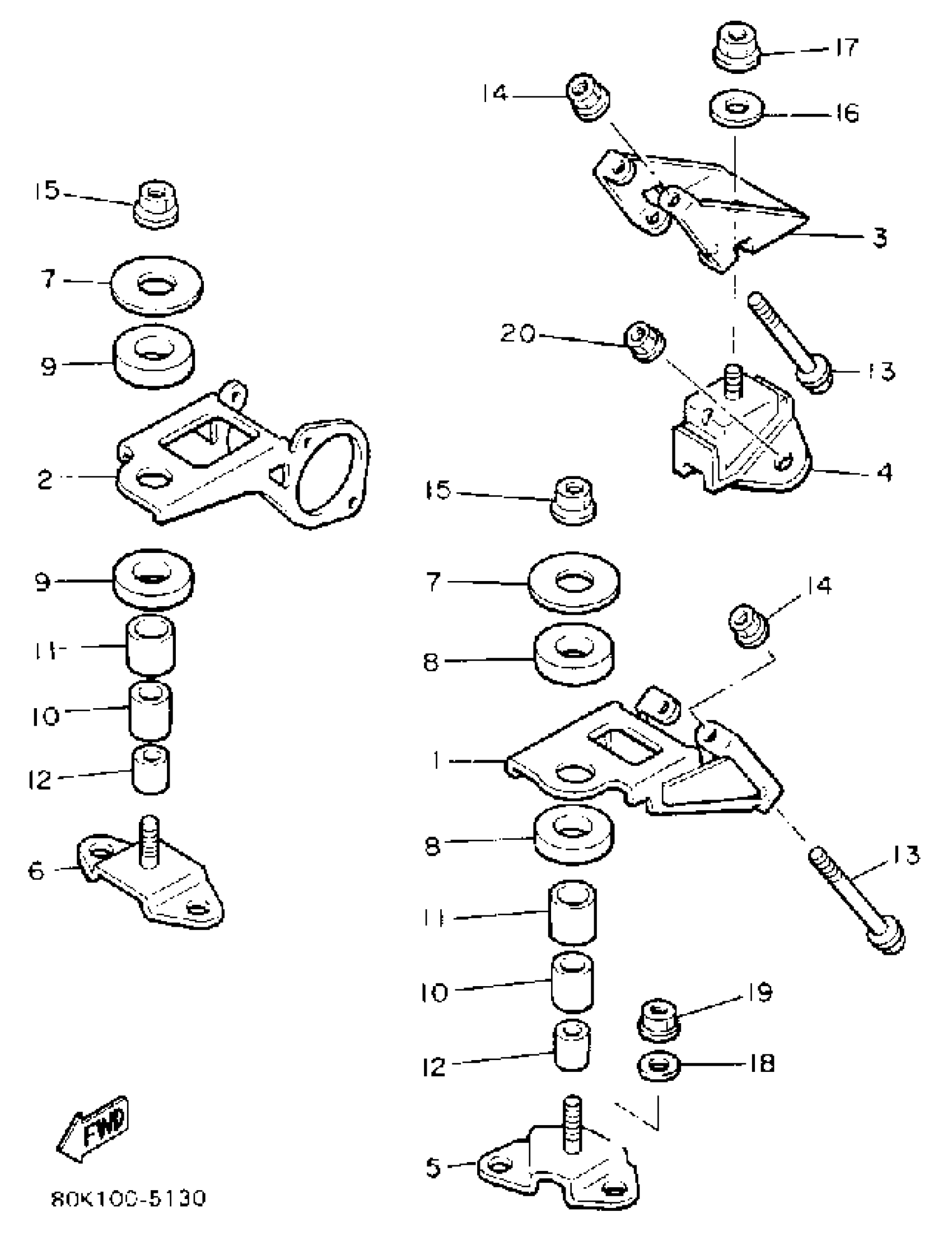

Yamaha PZ480EM (PHAZER DELUXE (ELEC START)) 83V 1988 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8V0-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

8V0-21419-00-00

Unavailable

3

BRACKET, ENGINE 3

8V0-21429-01-00

Unavailable

4

DAMPER 2

8V0-21486-00-00

Unavailable

5

BRACKET, FRT LWR 1

80L-21417-00-00

Unavailable

6

BRACKET, FRT LWR 2

80L-21418-00-00

Unavailable

7

WASHER (888)

90201-10151-00

Unavailable

8

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

9

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

10

BUSH, SPEC''L RUBBER

90385-15025-00

Unavailable

11

COLLAR

90387-21515-00

Unavailable

12

COLLAR

90387-10514-00

Unavailable

13

BOLT, FLANGE

95814-08065-00

$4.99

14

NUT, FLANGE

95704-08500-00

$8.49

15

NUT, FLANGE(3BM)

95704-10500-00

$4.29

16

WASHER, PLATE (856)

90201-10321-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

$4.29

18

WASHER, PLATE (856)

90201-10321-00

Unavailable

19

NUT, FLANGE(3BM)

95704-10500-00

$4.29

20

NUT, FLANGE

95704-08500-00

$8.49
