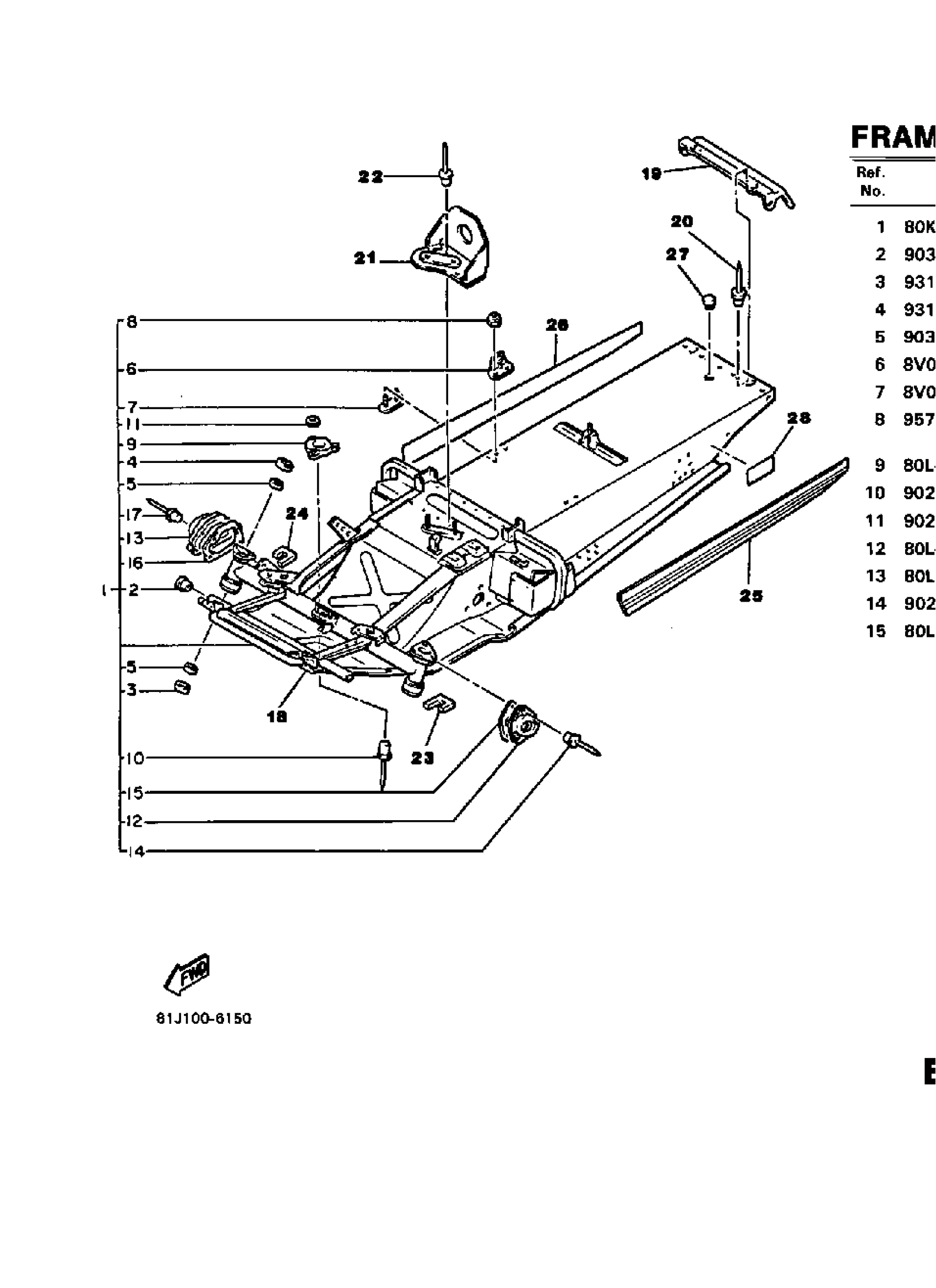

Yamaha PZ480EK (PHAZER) 1986 FRAME Diagram
#
Description
Price
1
FRAME
82K-21910-00-00
Unavailable
2
.. BUSH, SOLID
90381-12047-00
Unavailable
3
. OIL SEAL
93103-44134-00
Unavailable
4
. OIL SEAL, SD-TYPE
93102-44280-00
Unavailable
5
. BUSH, BIMETAL FORMED
90384-44173-00
Unavailable
6
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
7
. PATCH 6
8V0-21966-00-00
Unavailable
8
NUT, NYLON
95707-06300-00
$3.50
9
. SPACER
80L-21998-00-00
Unavailable
10
RIVET, BLIND (8M6)
90267-48051-00
$1.49
11
WASHER, PLATE
90201-04027-00
$3.02
12
. COVER 1
80L-2198F-00-00
Unavailable
13
. COVER 2
80L-2198G-00-00
Unavailable
14
RIVET, BLIND(8R6)
90267-40105-00
Unavailable
15
. WASHER 1
80L-77525-00-00
Unavailable
16
. WASHER 2
80L-77526-00-00
Unavailable
17
RIVET, BLIND
90267-40029-00
Unavailable
18
. BELLY PAN (80L-21912-00)
8X9-21912-00-00
Unavailable
19
REINEFORCEMENT, FRAME REAR 1
8V0-21923-01-00
Unavailable
20
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
21
BRACKET, FUEL TNK 2
80L-2194R-00-00
Unavailable
22
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
23
TAPE 3
80L-7717G-00-00
Unavailable
24
TAPE 4
80L-7717H-00-00
Unavailable
25
EMBLEM 1
81J-77351-00-00
Unavailable
26
EMBLEM 2
81J-77352-00-00
Unavailable
27
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
28
INDICATOR 2
8K2-77742-00-00
Unavailable
