Description

Price

1

TRACK ASY

8V0-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

WASHER (8G1)

90201-08681-00

$7.49

8

BOLT (8K2)

90109-08559-00

$8.49

9

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

10

BEARING(8AB)

93306-00444-00

$41.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

CIRCLIP(1AR)

99009-20400-00

$8.49

13

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

14

BEARING(8AB)

93306-00444-00

$41.99

15

CIRCLIP(5U8)

99009-42500-00

$8.49

16

CIRCLIP(1AR)

99009-20400-00

$8.49

17

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

18

COLLAR

90387-202H9-00

Unavailable

19

COLLAR

90387-20022-00

Unavailable

20

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

21

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

22

CIRCLIP(48Y)

99009-47500-00

Unavailable

23

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

24

PIN, COTTER

91490-30030-00

Unavailable

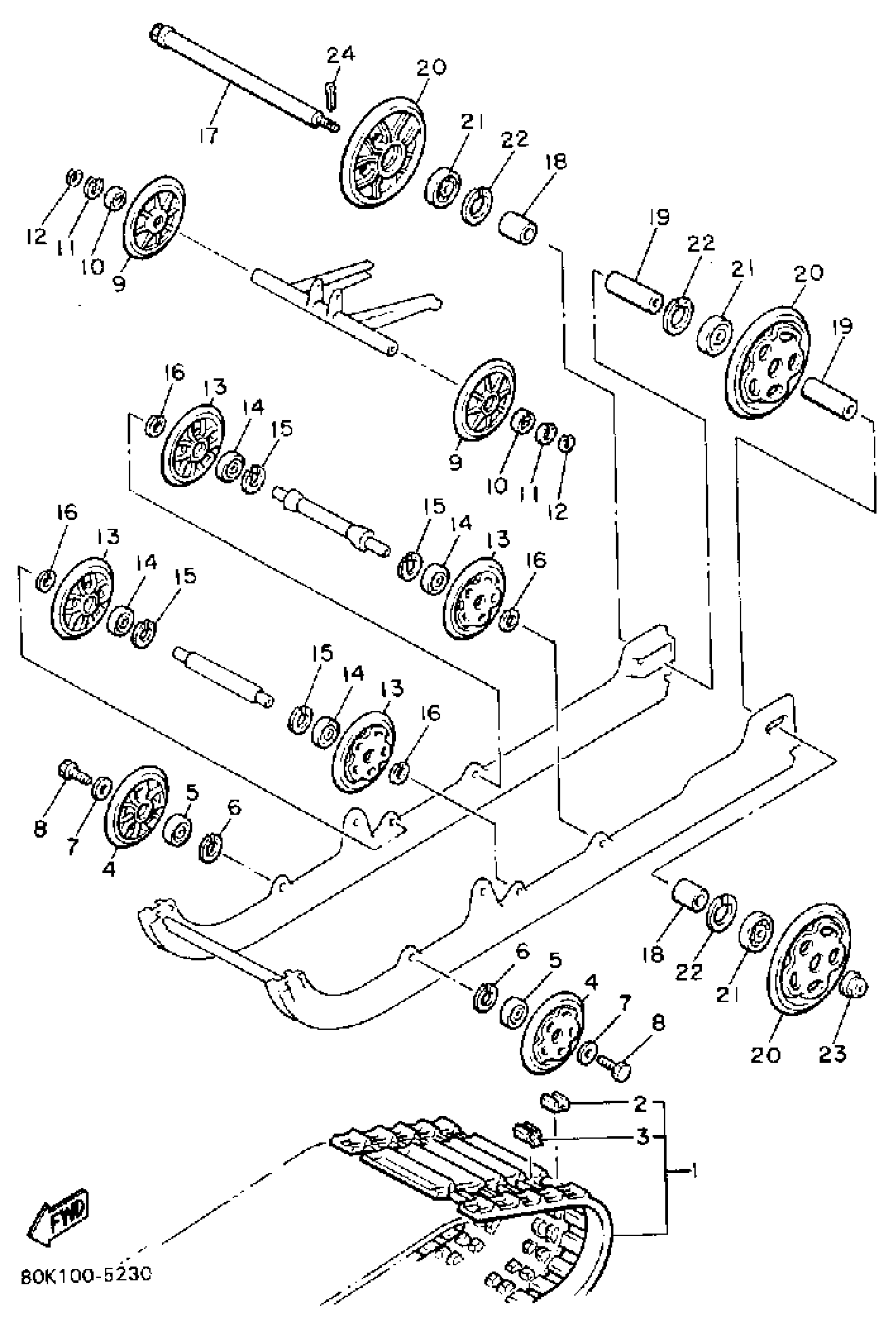

Yamaha PZ480EJ (PHAZER E (ELEC START)) 1985 TRACK SUSPENSION 1 Diagram

TRACK ASY

PLATE, REINFORCEMENT

METAL, SLIDE

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

WASHER (8G1)

BOLT (8K2)

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

REAR AXLE COMP.

COLLAR

COLLAR

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

NUT, SELF-LOCKING (8BF)

PIN, COTTER
