1985 Yamaha Phazer E (Elec Start (PZ480EJ) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

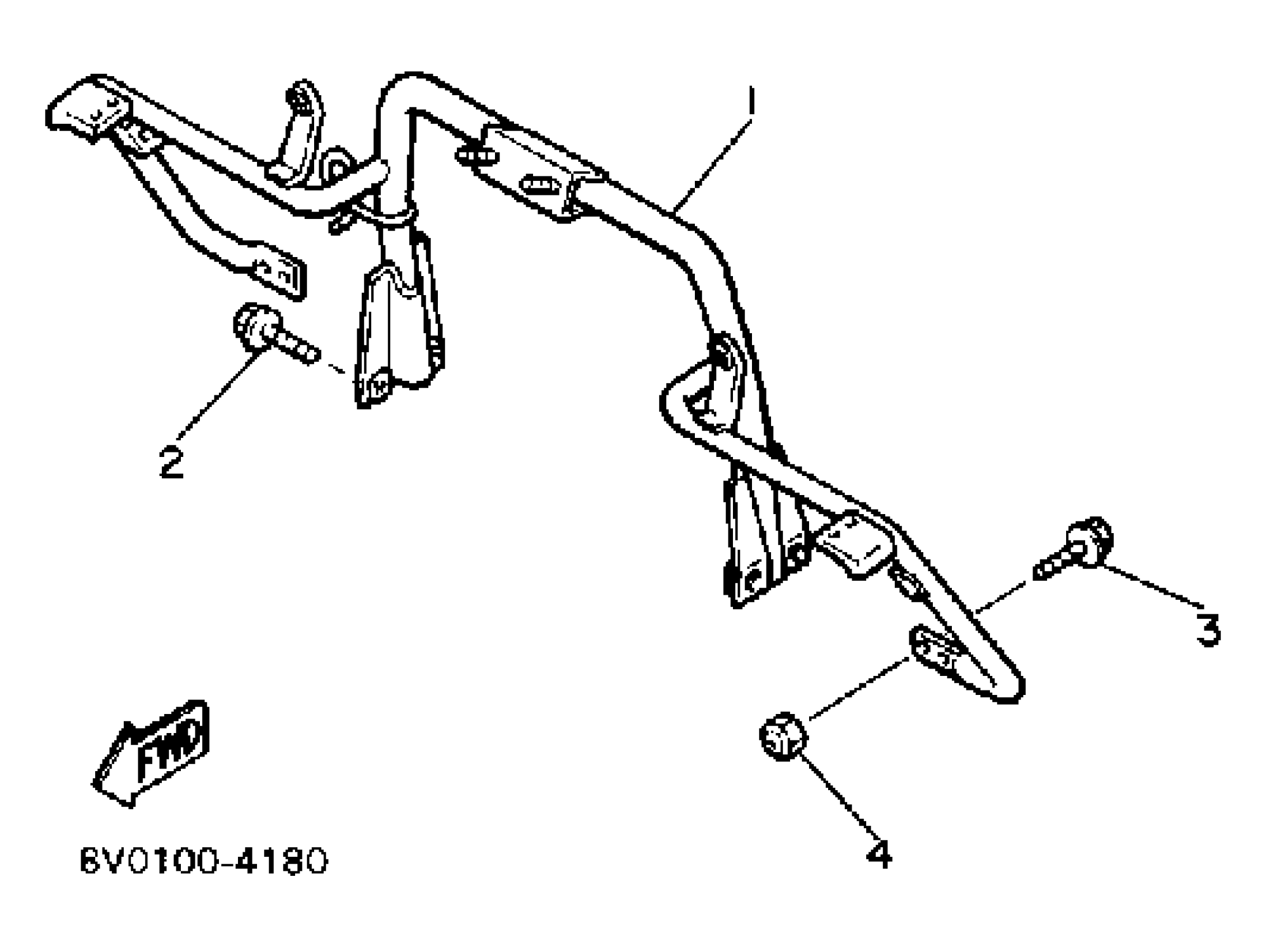

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP

87F-23870-00-00

1
Out of stock

2

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

3

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock
← Steering Electrical 1 →
