- PZ480EJ (PHAZER E (ELEC START)) 1985
SHROUD - WINDSHIELD

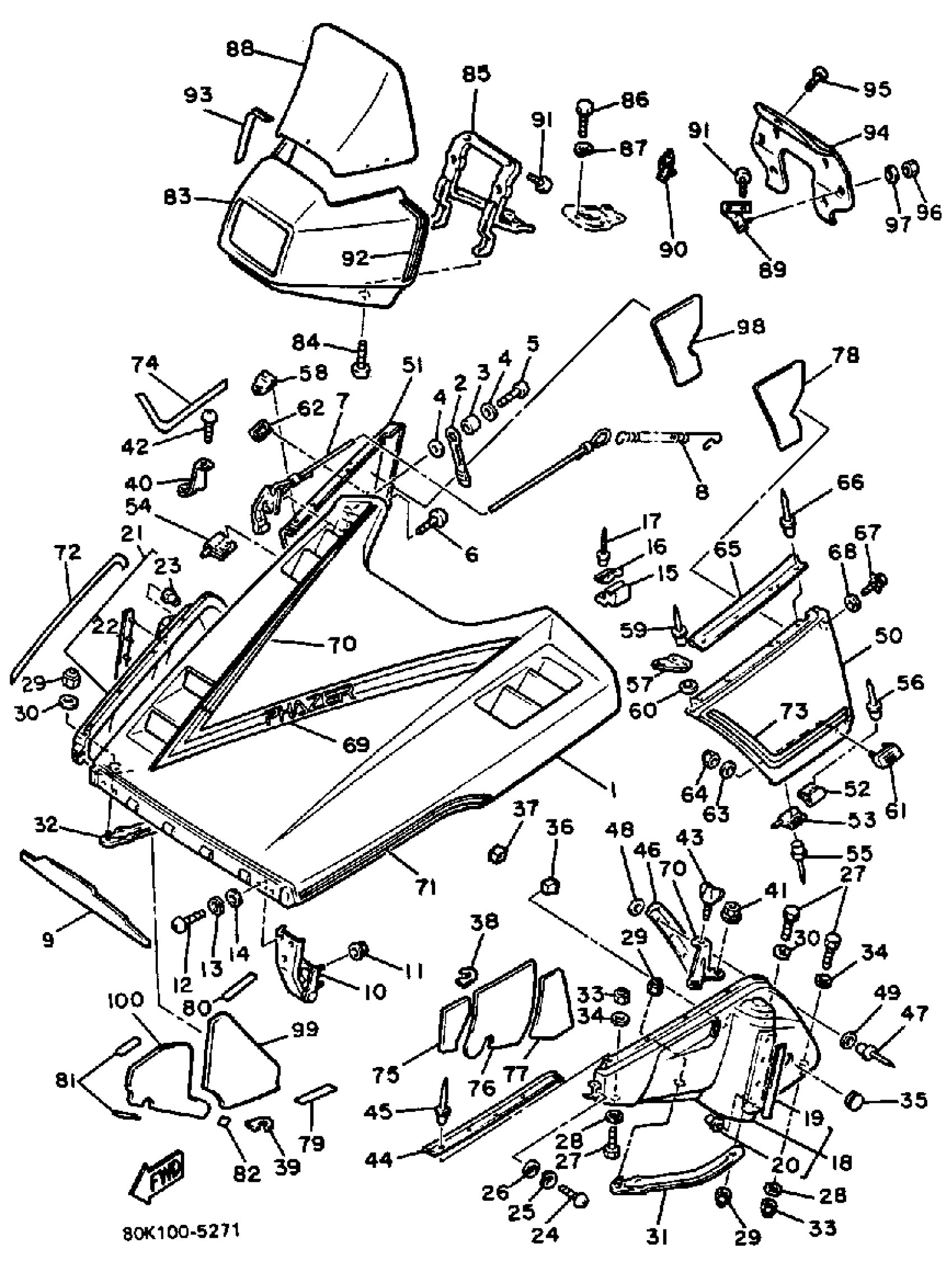

Yamaha PZ480EJ (PHAZER E (ELEC START)) 1985 SHROUD - WINDSHIELD Diagram
#
0
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
1
SHROUD ASY
80K-W7714-00-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
SCREW, BINDING
98907-06010-00
$1.65
7
STOPPER, SHROUD
80L-77118-01-00
Unavailable
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
DAMPER, NOISE 16
80L-77276-00-00
Unavailable
10
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, PAN HEAD
90157-05M19-00
Unavailable
13
WASHER(3SX)
92907-05100-00
$8.49
14
WASHER, PLAIN LARGE
92907-05200-00
$4.46
15
STOPPER
8V0-77188-00-00
Unavailable
16
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
17
RIVET, BLIND
90267-40029-00
Unavailable
18
HOOD 1 (L.H)
8X9-21982-00-00
Unavailable
19
. EMBLEM 1
8X9-77141-00-00
Unavailable
20
NUT, SPRING (1L9)
90183-04012-00
Unavailable
21
HOOD 2 (R.H)
8X9-21983-00-00
Unavailable
22
. EMBLEM 1
8X9-77141-00-00
Unavailable
23
NUT, SPRING (1L9)
90183-04012-00
Unavailable
24
SCREW, PAN
98517-05012-00
Unavailable
25
WASHER(3SX)
92907-05100-00
$8.49
26
WASHER, PLAIN LARGE
92907-05200-00
$4.46
27
BOLT, HEXAGON
97017-06016-00
Unavailable
28
WASHER, PLATE
90201-06380-00
Unavailable
29
NUT, NYLON
95707-06300-00
Unavailable
30
WASHER, PLATE
90201-06380-00
Unavailable
31
GUARD, SUB FRAMEFRAME FR 1
8V0-21995-01-00
Unavailable
32
GUARD, SUB FRAMEFRAME FR 2
8V0-21996-01-00
Unavailable
33
NUT, NYLON
95707-06300-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
GROMMET
90480-40382-00
Unavailable
36
GROMMET 1
80L-77431-00-00
Unavailable
37
GROMMET 2
80L-77432-00-00
Unavailable
38
TAPE 1
80L-7717E-00-00
Unavailable
39
TAPE 2
80L-7717F-00-00
Unavailable
40
BRACKET 3
8V0-2196F-00-00
Unavailable
41
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
42
SCREW, BIND (705)
98980-06016-00
Unavailable
43
BOLT, WING
90122-06015-00
Unavailable
44
BUSH, RUBBER 1
8V0-77515-01-00
Unavailable
45
RIVET(81E)
90269-05055-00
Unavailable
46
TRIM 1
8V0-2196T-00-00
Unavailable
47
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
48
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
49
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
50
HOOD 3
80K-2197H-00-00
Unavailable
51
HOOD 4
80K-2198H-00-00
Unavailable
52
BRACKET, 1
8V0-2194X-00-00
Unavailable
53
BRACKET 2
88R-2195X-00-00
Unavailable
54
BRACKET 2
88R-2195X-00-00
Unavailable
55
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
56
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
57
PROTECTOR 3
8V0-77553-00-00
Unavailable
58
PROTECTOR 4
8V0-77554-00-00
Unavailable
59
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
60
WASHER, PLATE
90201-04027-00
Unavailable
61
PROTECTOR 1
8V0-77551-00-00
Unavailable
62
PROTECTOR 2
8V0-77552-00-00
Unavailable
63
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
64
NUT, NYLON
95707-05300-00
Unavailable
66
RIVET(81E)
90269-05055-00
Unavailable
67
HOLDER, LATCH
8V0-77175-00-00
Unavailable
68
PLATE
4U5-2176E-00-00
Unavailable
69
STRIPE 1
80K-77281-00-00
Unavailable
70
STRIPE 2
80K-77282-00-00
Unavailable
71
ORNAMENT 1
(80K-77163-00-00)
Unavailable
72
ORNAMENT 2
80K-77164-00-00
Unavailable
73
STRIPE 5
80K-77285-01-00
Unavailable
74
STRIPE 6
80K-77286-01-00
Unavailable
75
DAMPER, NOISE 12
8V0-77272-00-00
Unavailable
76
DAMPER, NOISE 13
8V0-77273-00-00
Unavailable
77
DAMPER, NOISE 14
8V0-77274-00-00
Unavailable
78
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
79
TAPE 1
8V0-7717E-01-00
Unavailable
80
TAPE 1
8V0-7717F-01-00
Unavailable
81
TAPE 3
8V0-7717G-00-00
Unavailable
82
TAPE 3
82M-7717G-01-00
Unavailable
83
FAIRING
80K-77231-01-00
Unavailable
84
SCREW, BIND(1JK)
98980-06010-00
Unavailable
85
STAY, FAIRING
8V0-77241-00-00
Unavailable
86
BOLT, HEXAGON
97017-06025-00
Unavailable
87
WASHER, SPRING
92995-06100-00
Unavailable
88
WINDSHIELD
8BH-77210-00-XX
Unavailable
89
WASHER 1
8X9-77218-00-00
Unavailable
90
WASHER 2
8X9-77219-00-00
Unavailable
91
SCREW, PAN HEAD
98502-05006-00
Unavailable
92
STRIPE 9
80K-77289-00-00
Unavailable
93
STRIPE 10
(80K-77291-00-00)
Unavailable
94
COVER, HEADLIGHT
8X9-77251-00-00
Unavailable
95
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
96
NUT, CAP
95307-05800-00
Unavailable
97
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
98
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
99
LINING, SHROUD 1
80L-77261-00-00
Unavailable
100
LINING, SHROUD 3
8V0-77263-00-00
Unavailable
