1985 Yamaha Phazer E (Elec Start (PZ480EJ) Engine Bracket Diagram

← All diagrams

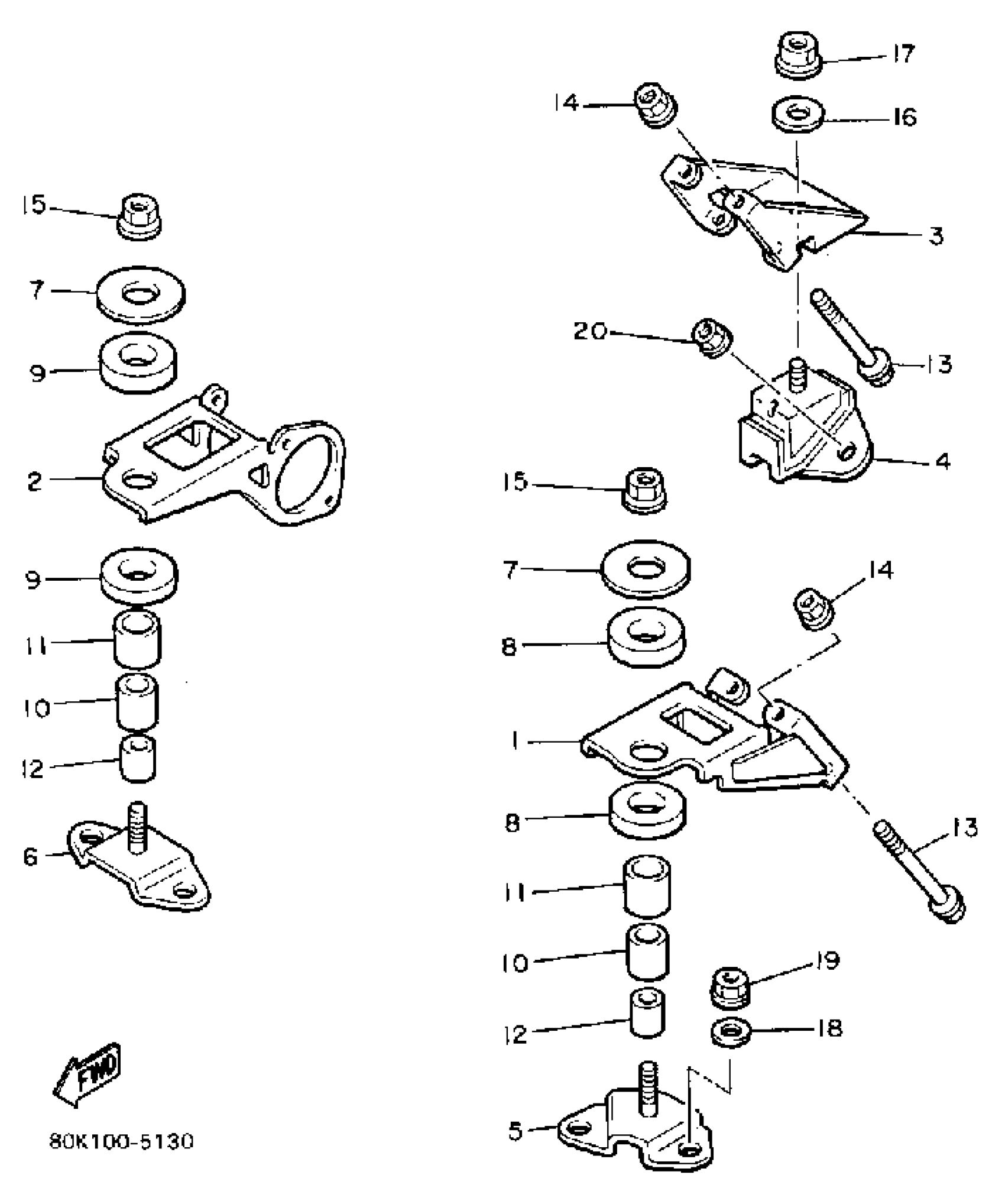

Find the part on the Engine Bracket diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8V0-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8V0-21419-00-00

1
Out of stock

3

BRACKET, ENGINE 3

8V0-21429-01-00

1
Out of stock

4

DAMPER 2

8V0-21486-00-00

1
Out of stock

5

BRACKET, FRT LWR 1

80L-21417-00-00

1
Out of stock

6

BRACKET, FRT LWR 2

80L-21418-00-00

1
Out of stock

7

WASHER (888)

90201-10151-00

—

$3.94

In stock

8

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

9

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

10

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

11

COLLAR

90387-21515-00

1
Out of stock

12

COLLAR

90387-10514-00

1
Out of stock

13

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

14

NUT, FLANGE

95704-08500-00

1
Out of stock

15

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

16

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

17

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

18

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

19

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

20

NUT, FLANGE

95704-08500-00

1
Out of stock
