1985 Yamaha Phazer E (Elec Start (PZ480EJ) Crankcase Diagram

← All diagrams

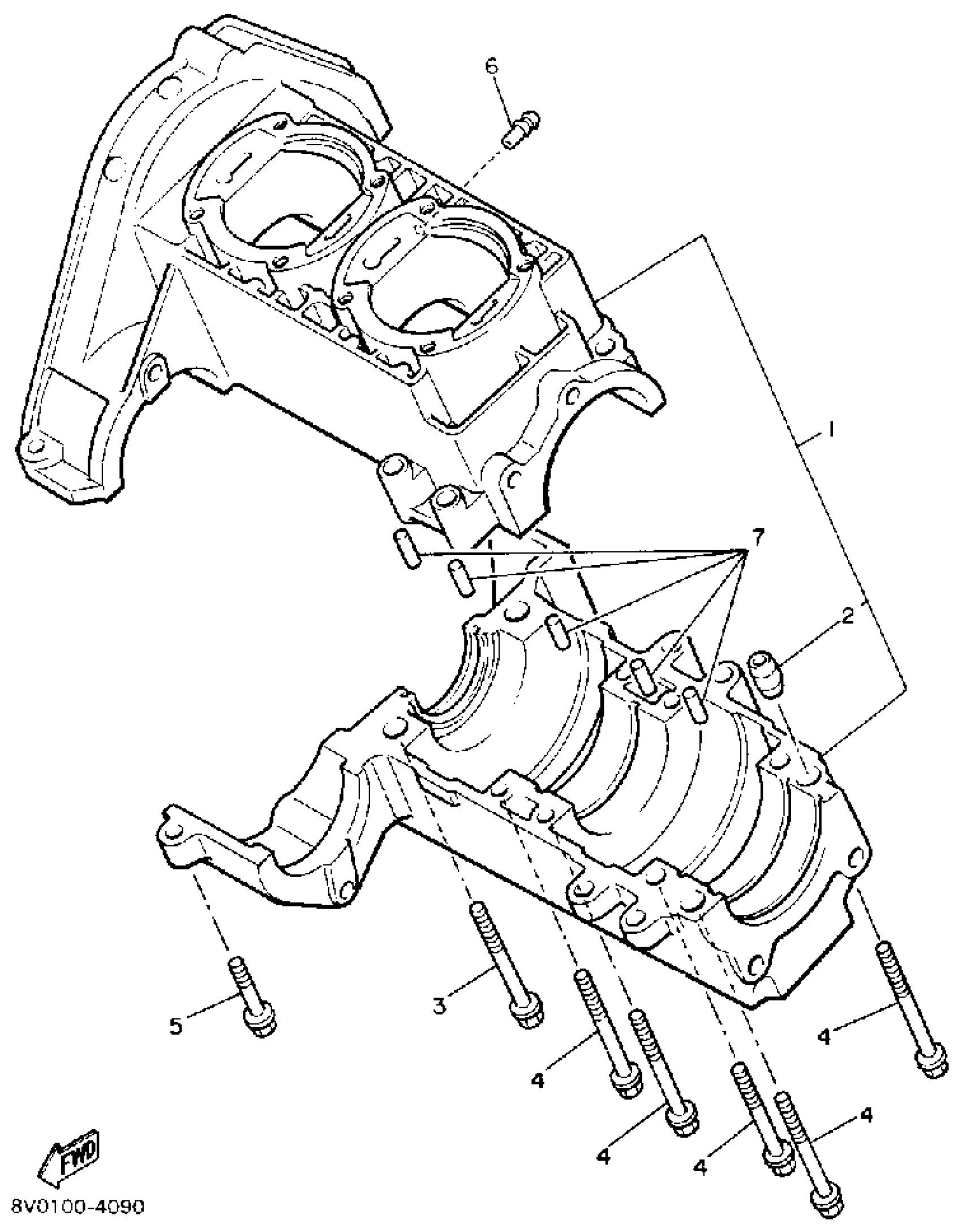

Find the part on the Crankcase diagram for your 1985 Yamaha Phazer E (Elec Start (PZ480EJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Phazer E (Elec Start (PZ480EJ) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

88T-15100-01-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

4

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

5

BOLT, FLANGE

95822-06025-00

1

$1.46

In stock

6

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

7

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock
