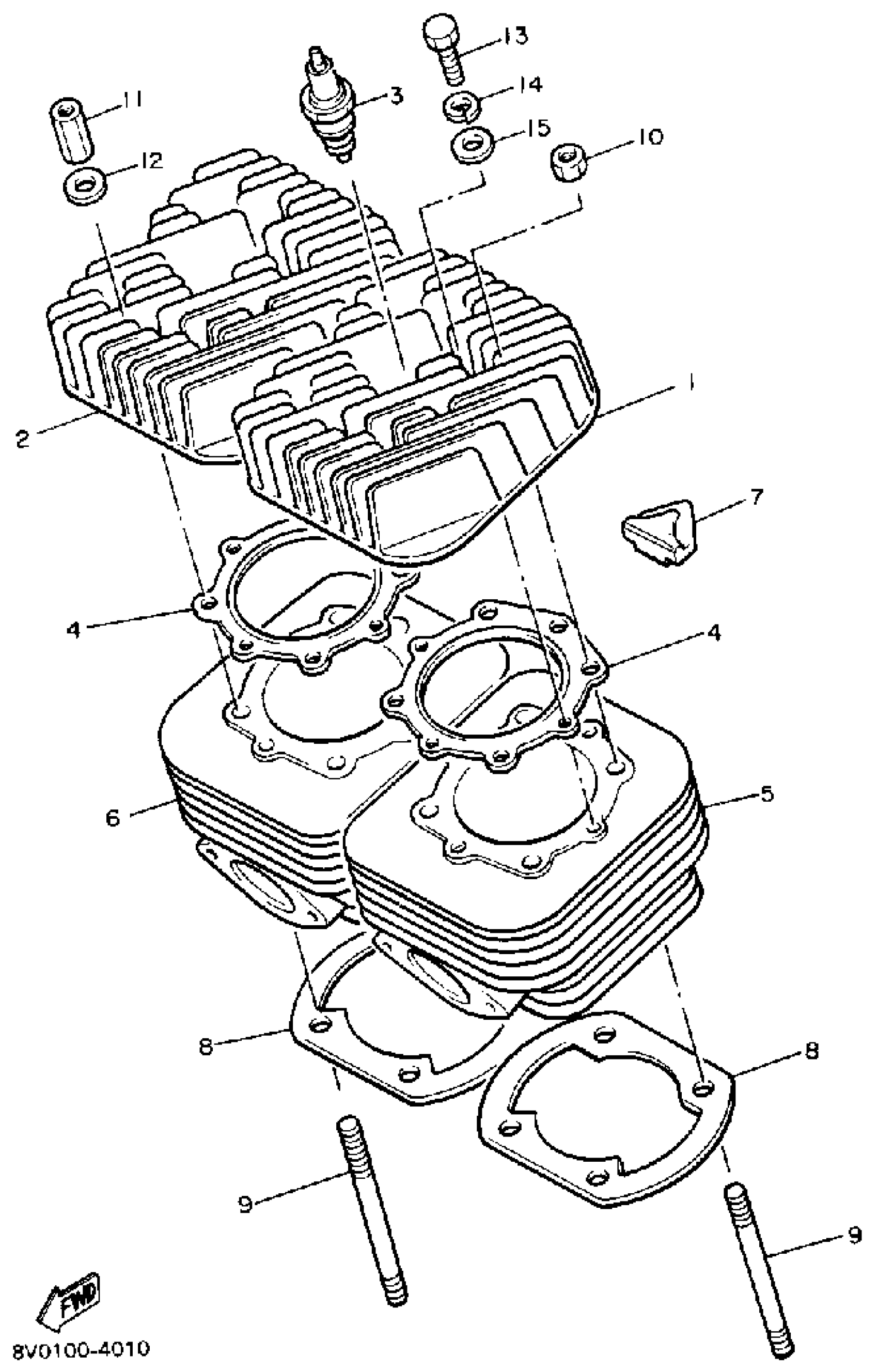

Yamaha PZ480EJ (PHAZER E (ELEC START)) 1985 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8V0-11111-01-00

Unavailable

2

HEAD, CYLINDER 2

8V0-11121-01-00

Unavailable

3

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

4

GASKET, CYLINDER HEAD 1

87F-11181-00-00

$33.99

5

CYLINDER 1

8V0-11311-01-00

Unavailable

6

CYLINDER 2

8V0-11321-01-00

Unavailable

7

SEAL, CYLINDER 1

8V0-11355-00-00

Unavailable

8

GASKET, CYLINDER

88F-11351-01-00

$19.99

9

BOLT, STUD

95617-08740-00

Unavailable

10

NUT, FLANGE

95704-08500-00

$8.49

11

NUT (8H8)

90179-08269-00

$11.49

12

WASHER, PLATE (397)

90201-08100-00

$8.49

13

BOLT (682)

97095-06040-00

$1.86

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (4H7)

90201-061A5-00

$7.49
