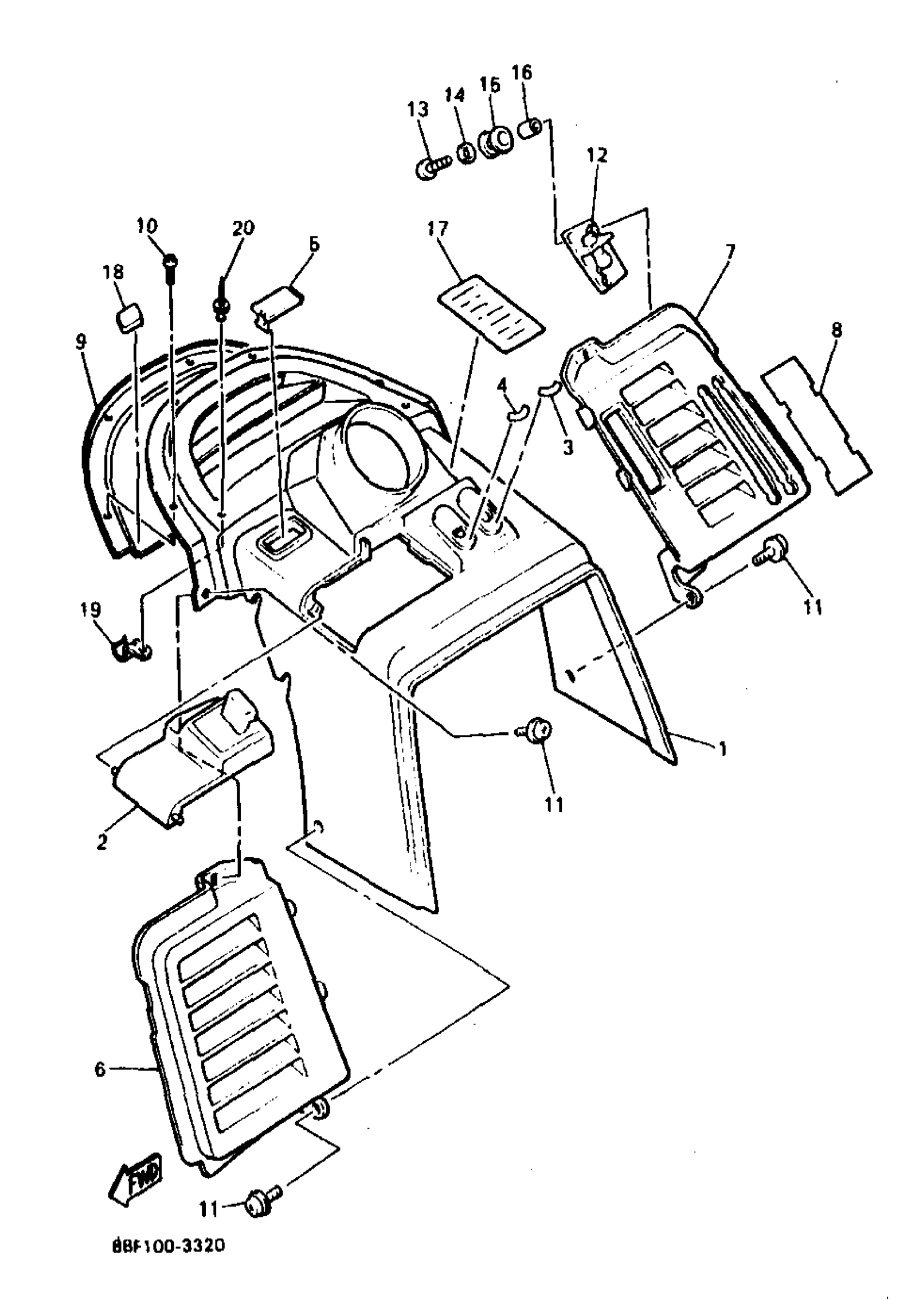

Yamaha PZ480EB (PHAZER SS ELECTRIC) 8BG5 1998 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8X9-77711-01-00

Unavailable

2

PANEL, INSTRUMENT

8X9-77712-01-00

Unavailable

3

INDICATOR 1

8BK-77741-00-00

Unavailable

4

INDICATOR 2

8U9-77742-00-00

Unavailable

5

GROMMET, INSTRUMENT PANEL

8X9-77740-00-00

Unavailable

6

LOUVER 1

8X9-77131-00-00

Unavailable

7

LOUVER 2

8X9-77132-00-00

Unavailable

8

REFLECTOR 1

8V0-7716E-00-00

Unavailable

9

SHIELD 1

8V0-77731-00-00

Unavailable

10

SCREW, BINDING

98907-05012-00

$8.49

11

SCREW, WITH WASHER

90159-05137-00

Unavailable

12

BRACKET 1

80L-77721-00-00

Unavailable

13

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

14

WASHER PLATE 829771780000

90201-05033-00

$10.49

15

GROMMET(80K)

90480-13428-00

$8.49

16

COLLAR (26H)

90387-053H3-00

Unavailable

17

LABEL,WARNING 1

87M-77761-10-00

Unavailable

18

SHIELD 1

81H-77731-00-00

Unavailable

19

CLAMP

90462-10007-00

Unavailable

20

RIVET(8BE)

90269-07071-00

Unavailable
