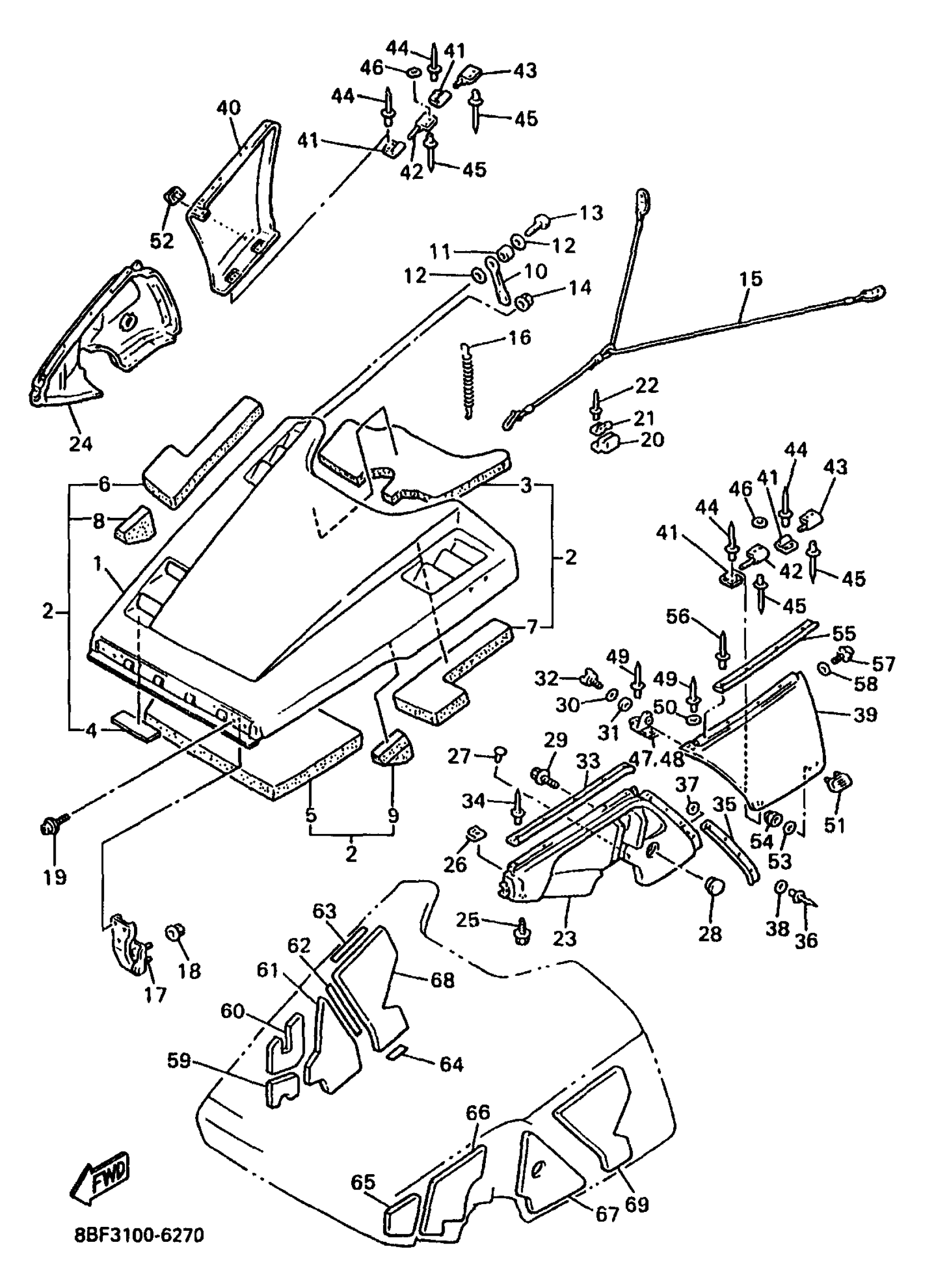

Yamaha PZ480A (PHAZER SS) 8BF4 1997 SHROUD Diagram
#
1
SHROUD
8BF-77111-10-00
Unavailable
2
LINING SET
8BF-W7726-00-00
Unavailable
3
. LINING, SHROUD 1
8V0-77261-01-00
Unavailable
4
. LINING, SHROUD 2
80L-77262-00-00
Unavailable
5
. LINING, SHROUD 7
8V0-77267-03-00
Unavailable
6
. DAMPER, NOISE 11
8V0-77271-01-00
Unavailable
7
. DAMPER, NOISE 17
8V0-77277-01-00
Unavailable
8
. DAMPER, NOISE 18
8V0-77278-01-00
Unavailable
9
. DAMPER, NOISE 19
8V0-77279-00-00
Unavailable
10
BODY, LATCH 1
8V0-77171-00-00
$21.99
11
COLLAR (420)
90387-06241-00
$8.49
12
WASHER, PLATE
90201-06020-00
$9.49
13
SCREW, BINDING
98907-06030-00
$8.49
14
NUT, FLANGE(4MV)
95707-06500-00
$1.23
15
STOPPER, SHROUD
88F-77118-00-00
Unavailable
16
CLAMP, ROD
80L-77159-00-00
Unavailable
17
HINGE ASSEMBLY
87F-77140-00-00
Unavailable
18
NUT, FLANGE(4MV)
95707-06500-00
$1.23
19
SCREW, WITH WASHER
90159-05137-00
Unavailable
20
STOPPER
8V0-77188-00-00
Unavailable
21
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
22
RIVET, BLIND (J10)
90267-40077-00
Unavailable
23
HOOD 1
8BF-21982-10-00
Unavailable
24
HOOD 2
8BF-21983-10-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
Unavailable
26
NUT, SPRING (26H)
90183-06023-00
Unavailable
27
RIVET(81E)
90269-05055-00
Unavailable
28
GROMMET 1463
90480-40578-00
Unavailable
29
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
30
WASHER, PLATE
90201-06020-00
$9.49
31
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
32
BOLT, WING (36F)
90122-06020-00
Unavailable
33
BUSH, RUBBER 1
87F-77515-00-00
Unavailable
34
RIVET(81E)
90269-05055-00
Unavailable
35
TRIM 1
8V0-2196T-00-00
Unavailable
36
RIVET, BLIND
90267-40029-00
Unavailable
37
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
38
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
39
HOOD 3
8BF-2197H-10-00
Unavailable
40
HOOD 4
8BF-2198H-10-00
Unavailable
41
BRACKET, 1
88F-2194X-00-00
Unavailable
42
BRACKET 2
88R-2195X-00-00
Unavailable
43
BRACKET 3
88F-2196F-00-00
Unavailable
44
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
45
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
46
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
47
PROTECTOR 3 (LH)
87F-77553-01-00
Unavailable
48
PROTECTOR 4
87F-77554-01-00
Unavailable
49
RIVET, BLIND (8R4)
90267-48088-00
Unavailable
50
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
51
PROTECTOR 1
85L-77551-00-00
Unavailable
52
PROTECTOR 2
85L-77552-00-00
Unavailable
53
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
54
NUT, NYLON
95707-05300-00
Unavailable
55
BUSH, RUBBER 2
8V0-77516-01-00
Unavailable
56
RIVET(81E)
90269-05055-00
Unavailable
57
HOLDER, LATCH
8V0-77175-00-00
Unavailable
58
PLATE
4U5-2176E-00-00
Unavailable
59
LINING, SHROUD 5
87F-77265-01-00
Unavailable
60
LINING, SHROUD 6
87F-77266-01-00
Unavailable
61
DAMPER, NOISE 16
87F-77276-01-00
Unavailable
62
TAPE 1
8V0-7717E-01-00
Unavailable
63
TAPE 1
8V0-7717F-01-00
Unavailable
64
TAPE 3
82M-7717G-01-00
Unavailable
65
DAMPER, NOISE 12
87F-77272-00-00
Unavailable
66
DAMPER, NOISE 13
87F-77273-00-00
Unavailable
67
DAMPER, NOISE 14
87F-77274-00-00
Unavailable
68
LINING,SHROUD 6
8V0-77266-01-00
Unavailable
69
DAMPER, NOISE 15
8V0-77275-00-00
Unavailable
