Description

Price

1

KICK AXLE ASSY

4BC-15660-00-00

Unavailable

2

GEAR, KICK

4BC-15641-00-00

Unavailable

3

CLIP(4ES)

90468-23194-00

$9.49

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP(1AR)

99009-20400-00

$8.49

6

COVER, SPRING

4BC-15676-00-00

$3.17

7

SPRING TORSION 304156650000

90508-26136-00

Unavailable

8

GUIDE, SPRING

4BC-15664-00-00

Unavailable

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER (566)

90201-15701-00

$8.49

11

KICK CRANK ASSY

4BC-15620-00-00

Unavailable

12

COVER, KICK LEVER

156-15618-01-00

$7.99

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

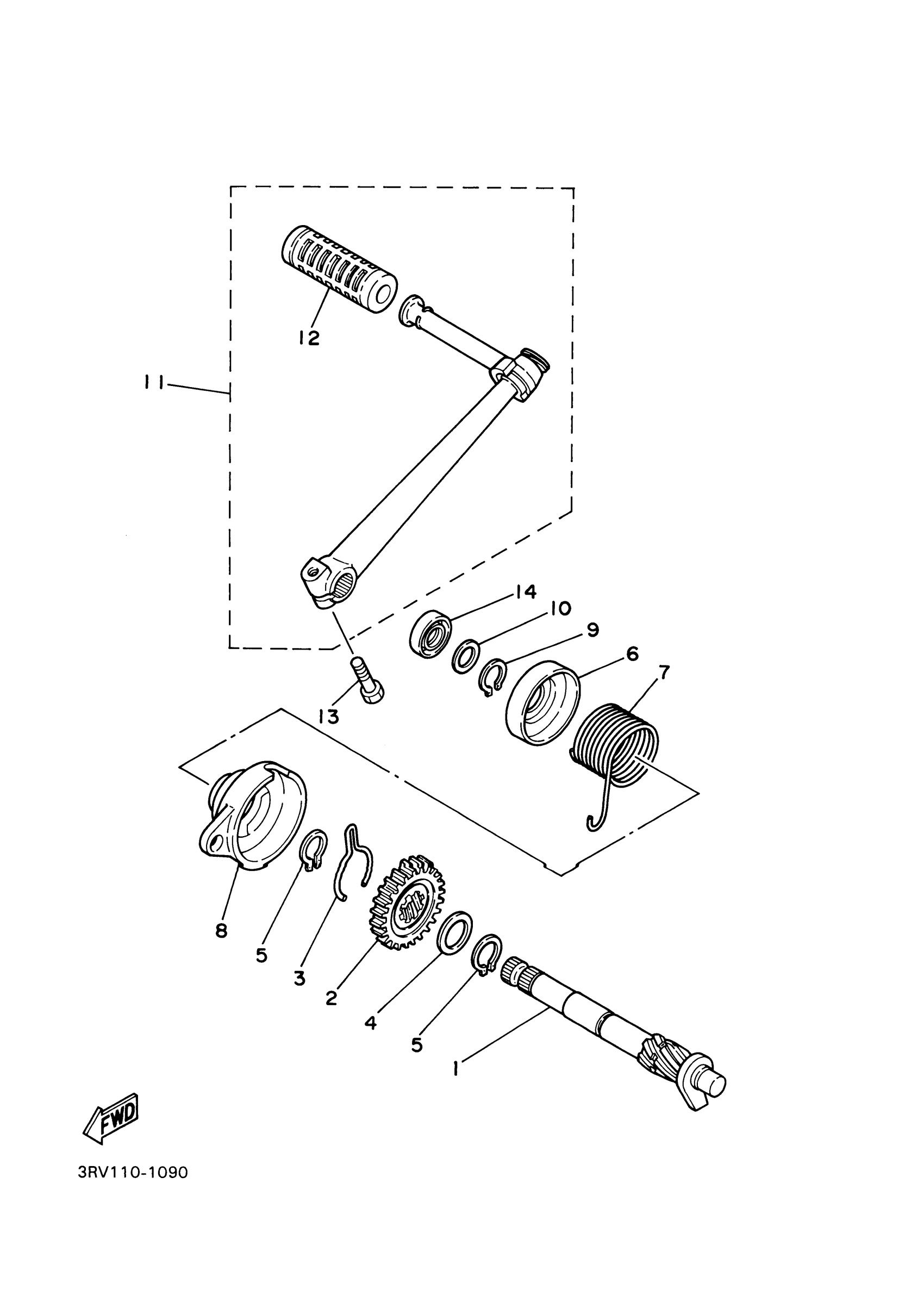

Yamaha PW80V (PW80) 3RVK 2006 STARTER Diagram

KICK AXLE ASSY

GEAR, KICK

CLIP(4ES)

WASHER PLATE 132172160000

CIRCLIP(1AR)

COVER, SPRING

SPRING TORSION 304156650000

GUIDE, SPRING

CIRCLIP(1EY)

WASHER (566)

KICK CRANK ASSY

COVER, KICK LEVER

BOLT, HEXAGON

OIL SEAL (15X26X6-102)
