Description

Price

1

REAR ARM COMP.

21W-22110-00-35

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SEAL, GUARD

3R0-22151-00-00

$25.99

4

BOLT (583 FRAME)

90105-10063-00

$11.49

5

WASHER PLATE (3L6)

90201-08759-00

$3.23

6

NUT, U

90185-10037-00

$9.49

7

SUPPORT, CHAIN

21W-22199-00-00

$32.99

8

BOLT, WITH WASHER

90119-05009-00

$3.81

9

CASE, CHAIN

21W-22311-00-00

$24.99

10

LABEL, TIRE

3RV-21668-A1-00

$4.47

11

SHOCK ABSORBER ASSY, REAR

21W-22210-03-00

Unavailable

12

BUSHING

3M7-22216-00-00

$23.99

13

LABEL, WARNING

4AA-22259-80-00

$13.49

14

PIN, CLEVIS (3R0)

90240-10072-00

$11.49

15

PIN, CLEVIS (3R0)

90240-10069-00

$11.49

16

WASHER, PLATE(56J)

90201-106H5-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

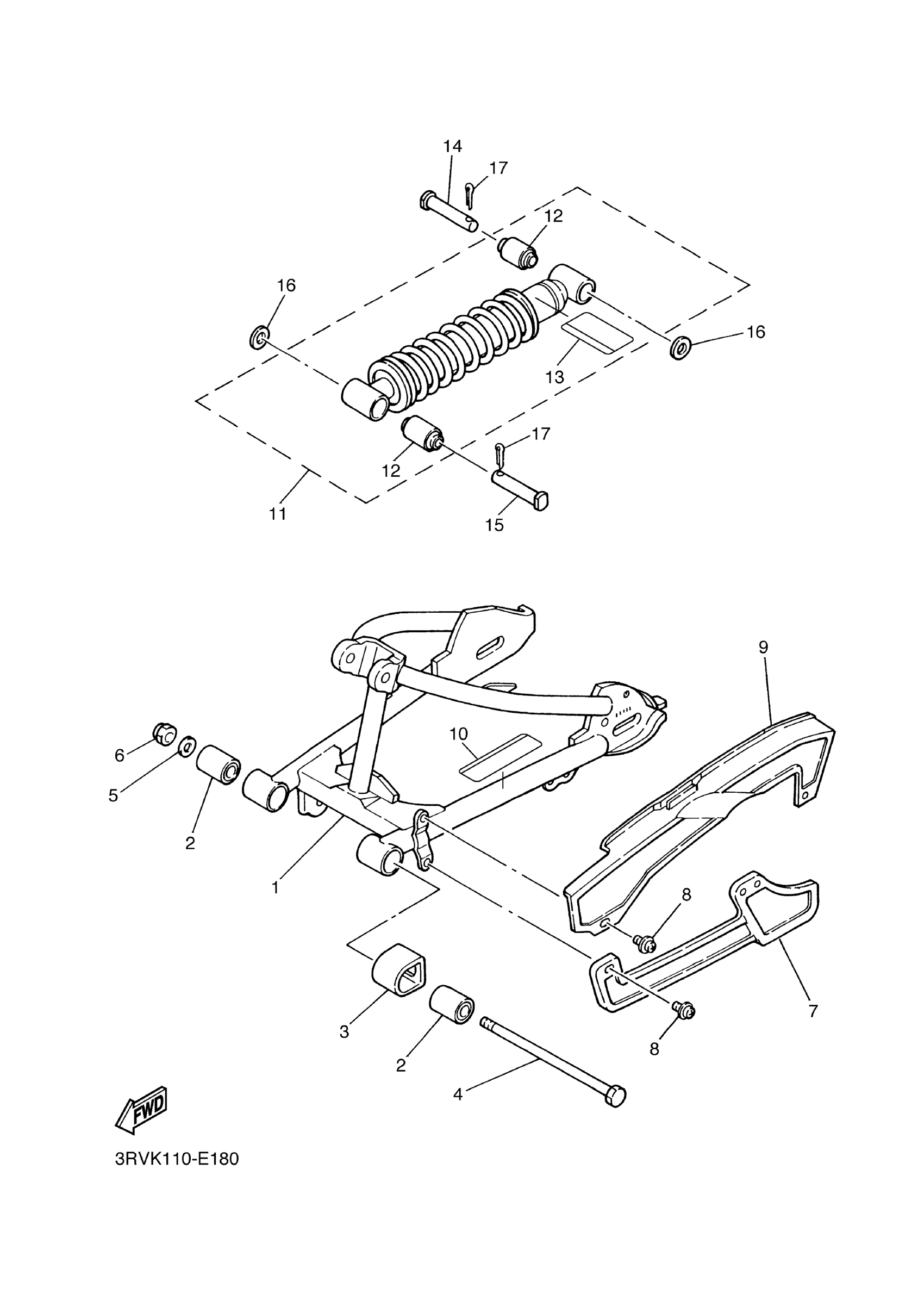

Yamaha PW80V (PW80) 3RVK 2006 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

BUSH 1

SEAL, GUARD

BOLT (583 FRAME)

WASHER PLATE (3L6)

NUT, U

SUPPORT, CHAIN

BOLT, WITH WASHER

CASE, CHAIN

LABEL, TIRE

SHOCK ABSORBER ASSY, REAR

BUSHING

LABEL, WARNING

PIN, CLEVIS (3R0)

PIN, CLEVIS (3R0)

WASHER, PLATE(56J)

PIN, COTTER
