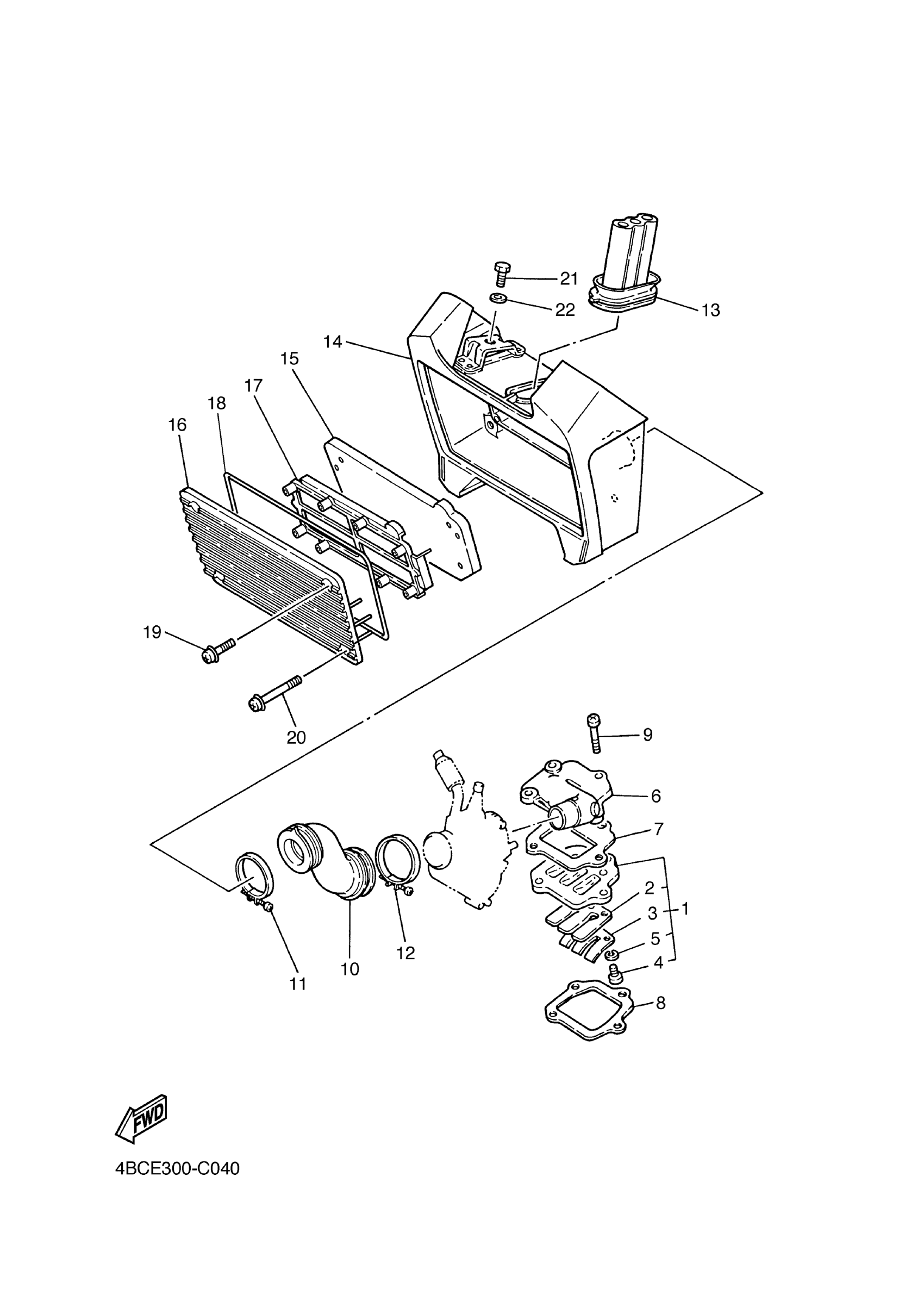

Yamaha PW80V (PW80) 3RVK 2006 INTAKE Diagram
#
Description
Price
6
MANIFOLD, INTAKE
21W-13555-00-00
Unavailable
9
SCREW, PAN
98517-06030-00
Unavailable
11
CLAMP, HOSE
90460-37130-00
Unavailable
12
CLAMP, HOSE
90460-37130-00
Unavailable
13
JOINT, SUCTION PIPE
5U8-14454-00-00
Unavailable
14
AIR CLEANER CASE COMP.
3RV-W1441-40-00
Unavailable
16
CAP, CLEANER CASE 1
4BC-14412-00-00
Unavailable
17
GUIDE
4BC-14458-00-00
Unavailable
18
SEAL
1VJ-14462-00-00
Unavailable
19
SCREW,W/WASHER
97607-05225-00
Unavailable
20
SCREW, PAN HEAD WITH WASHER
9760M-05250-00
Unavailable
21
BOLT, HEXAGON
97017-08016-00
Unavailable
22
WASHER(6TA)
92907-08600-00
Unavailable
