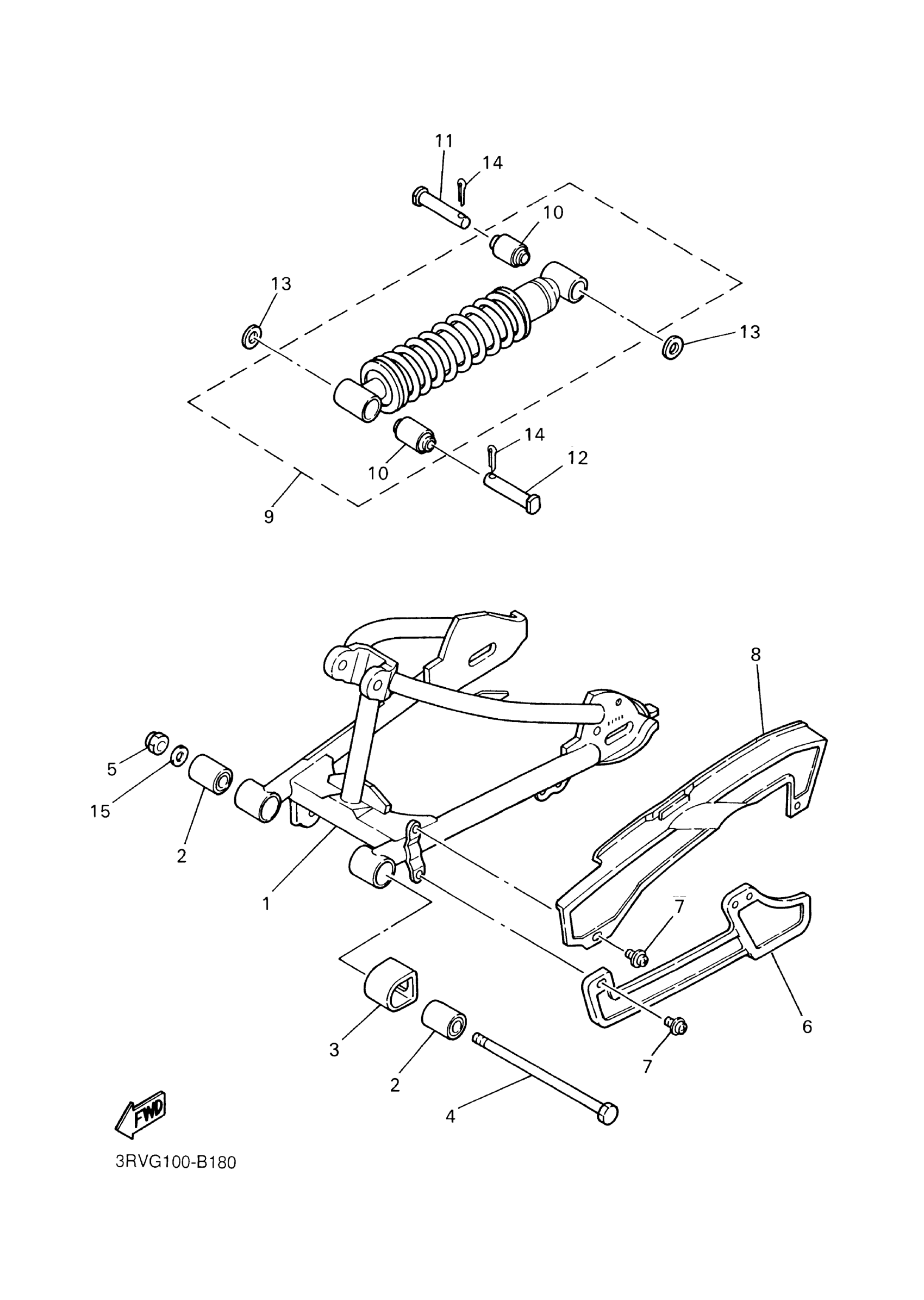

Yamaha PW80T (PW80) 3RVJ 2005 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

21W-22110-00-35

Unavailable

2

BUSH 1

102-22123-00-00

$8.96

3

SEAL, GUARD

3R0-22151-00-00

$19.48

4

BOLT (583 FRAME)

90105-10063-00

$8.37

5

NUT, U

90185-10037-00

$6.22

6

SUPPORT, CHAIN

21W-22199-00-00

Unavailable

7

BOLT, WITH WASHER

90119-05009-00

$3.26

8

CASE, CHAIN

21W-22311-00-00

$18.00

9

SHOCK ABSORBER ASSY, REAR

21W-22210-03-00

Unavailable

10

BUSHING

3M7-22216-00-00

$19.18

11

PIN, CLEVIS (3R0)

90240-10072-00

$8.26

12

PIN, CLEVIS (3R0)

90240-10069-00

$8.26

13

WASHER, PLATE(56J)

90201-106H5-00

$6.57

14

PIN, COTTER

91490-25020-00

$2.73

15

WASHER PLATE (3L6)

90201-08759-00

$2.34
