Description

Price

1

FUEL TANK COMP.

3RV-24110-20-00

$283.99

2

GROMMET (4V1)

90480-18290-00

$8.49

3

COLLAR (1T2)

90387-07598-00

$5.60

4

BOLT, FLANGE

95817-06030-00

$4.29

5

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

6

CAP ASSY

2FG-24610-10-00

$64.99

7

HOSE (L600)

90445-083J5-00

$10.49

8

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

9

SEAL, COCK

3AJ-24534-01-00

$10.99

10

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

11

O-RING

4X8-24512-00-00

$8.99

12

VALVE PACKING

3AC-24523-00-00

$12.99

13

WASHER, PLATE(3MB)

90202-05187-00

$1.38

14

SCREW 256241430000

90149-06011-00

$5.60

15

HOSE (L420)

90445-092K1-00

$12.49

16

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

17

DAMPER, LOCATING

2X6-24183-00-00

Unavailable

18

CLIP 101235600

90467-08003-00

Unavailable

19

GRAPHIC SET

3RV-24240-B0-00

Unavailable

20

WASHER PLATE 137241870000

90201-06072-00

Unavailable

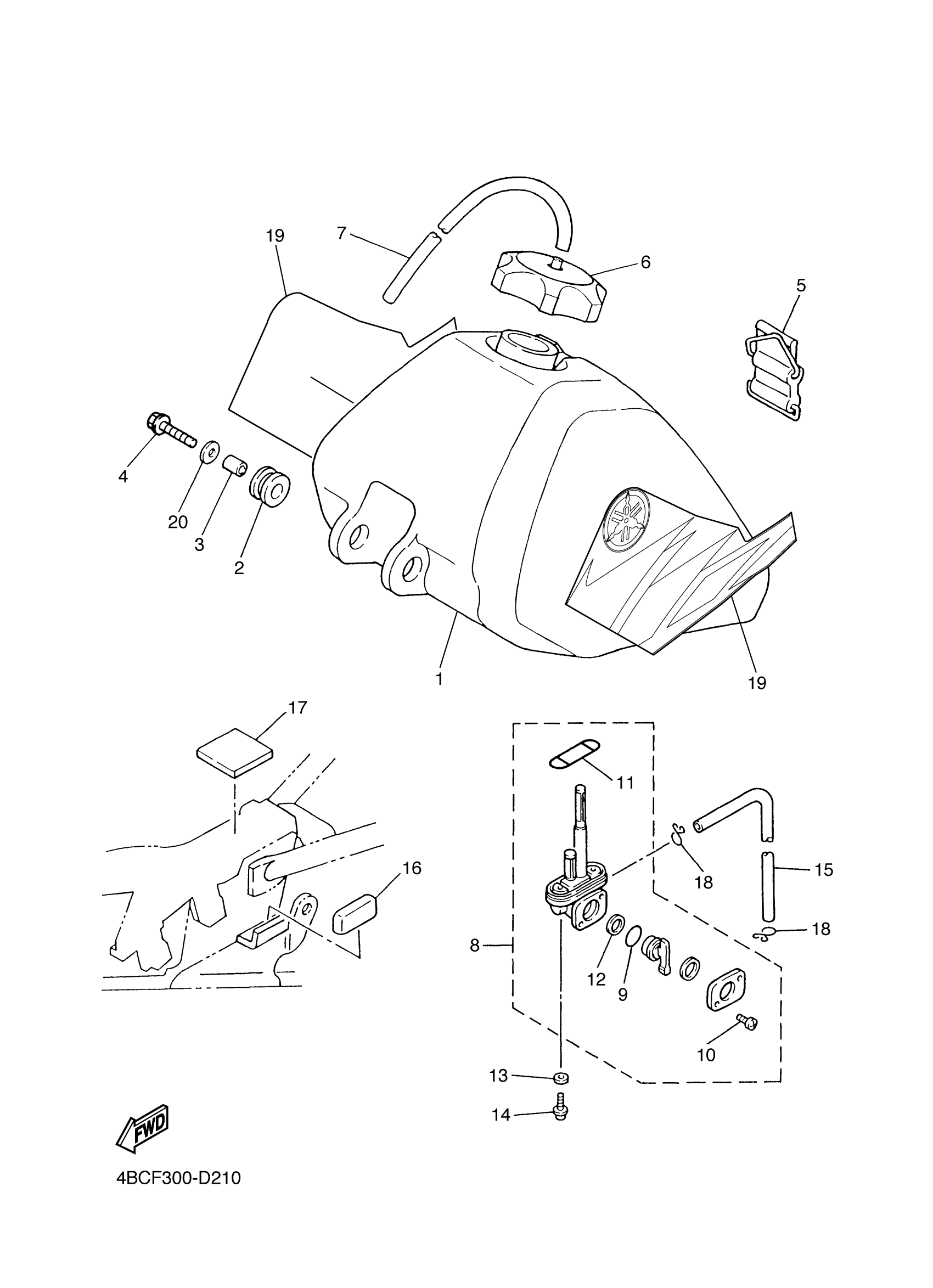

Yamaha PW80T (PW80) 3RVJ 2005 FUEL TANK Diagram

FUEL TANK COMP.

GROMMET (4V1)

COLLAR (1T2)

BOLT, FLANGE

BAND, TANK FITTING 1

CAP ASSY

HOSE (L600)

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L420)

DAMPER, LOCATING 1

DAMPER, LOCATING

CLIP 101235600

GRAPHIC SET

WASHER PLATE 137241870000
