Description

Price

1

CRANKCASE 1(1W7-03

1W7-15111-09-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

SCREW, PAN

98507-06050-00

$3.28

4

SCREW, PAN

98507-06045-00

$3.14

5

SCREW, PAN

98507-06035-00

$8.49

6

CRANKCASE 2

1W7-15121-03-00

Unavailable

7

DAMPER 1

5T9-15316-02-00

Unavailable

8

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

9

GASKET (3JD1)

90430-12207-00

$7.99

10

HOLDER (R.H)

300-15128-00-00

$17.49

11

SCREW, PAN

98507-08010-00

$8.49

12

COVER, OIL PUMP 1

517-15416-01-00

Unavailable

13

GROMMET(52W)

90480-21436-00

Unavailable

14

SCREW (4K5)

90149-06157-00

$3.50

15

BOLT (517)

90101-06394-00

$7.49

16

BOLT, WASHER BASED (7H3)

90105-10147-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

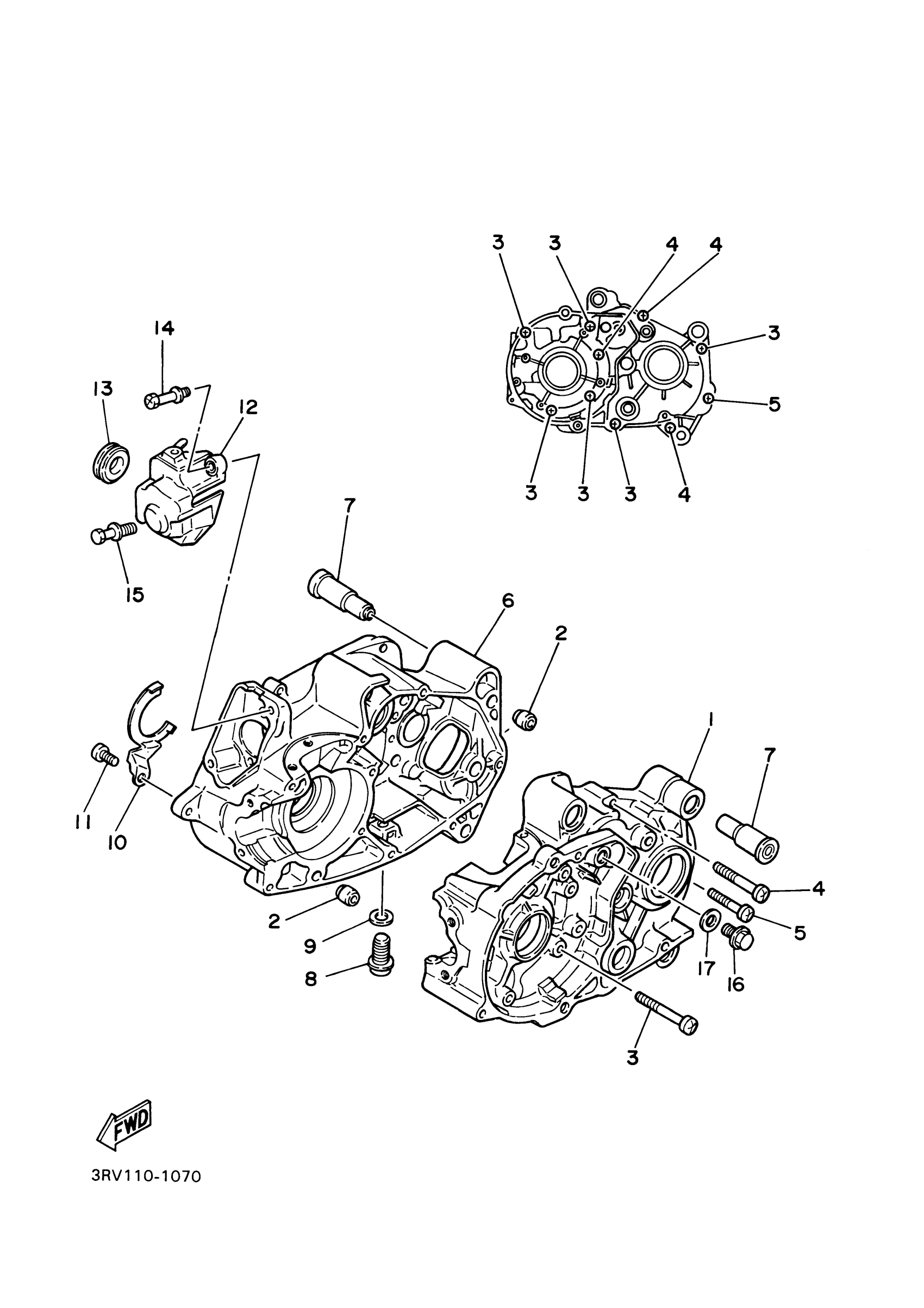

Yamaha PW80T (PW80) 3RVJ 2005 CRANKCASE Diagram

CRANKCASE 1(1W7-03

PIN, DOWEL

SCREW, PAN

SCREW, PAN

SCREW, PAN

CRANKCASE 2

DAMPER 1

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

HOLDER (R.H)

SCREW, PAN

COVER, OIL PUMP 1

GROMMET(52W)

SCREW (4K5)

BOLT (517)

BOLT, WASHER BASED (7H3)

GASKET (5R6)
