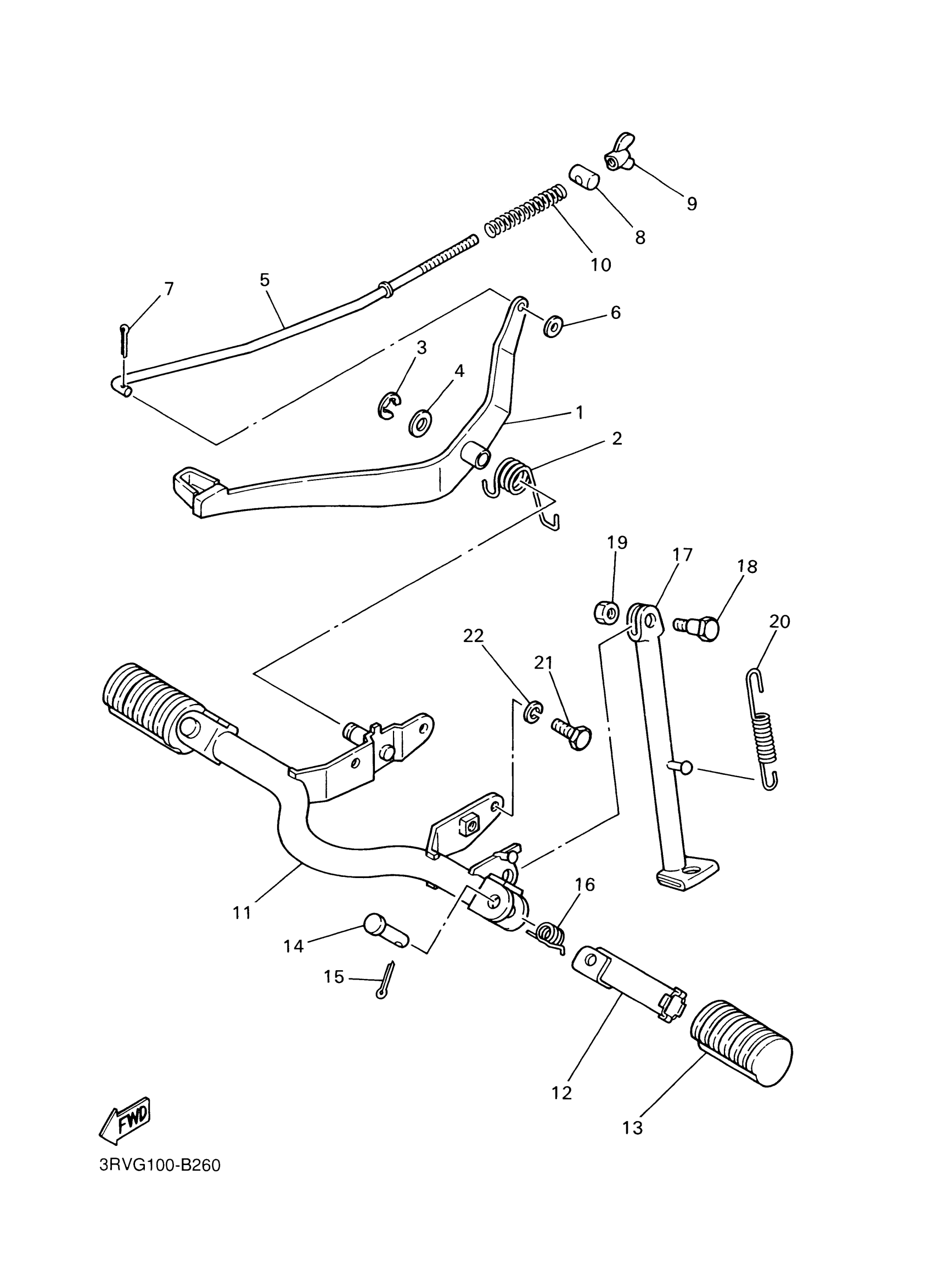

Yamaha PW80R (PW80) 3RVG 2003 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

21W-27211-00-00

$40.99

2

SPRING, TORSION (21W)

90508-29578-00

$9.49

3

CIRCLIP(J51)

99080-09600-00

$2.55

4

WASHER(6TA)

92907-12600-00

$1.71

5

ROD, BRAKE

21W-27231-00-00

$23.99

6

WASHER(6TA)

92907-06600-00

$2.72

7

PIN, COTTER (648)

91490-20015-00

$2.20

8

PIN 1562723700

90249-12008-00

$8.49

9

NUT, WING (1K5)

90175-06013-00

$4.88

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

FOOTREST 1

21W-27411-01-33

Unavailable

12

FOOT REST

214-27421-00-00

$37.99

13

COVER, FOOT REST

214-27413-00-00

$23.99

14

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

15

PIN, COTTER

91490-25020-00

$3.19

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

STAND, SIDE

21W-27311-01-00

Unavailable

18

BOLT 1092537300

90109-08063-00

Unavailable

19

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

20

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

21

BOLT, HEXAGON

97017-08020-00

Unavailable

22

WASHER(JN5)

92907-08100-00

Unavailable
