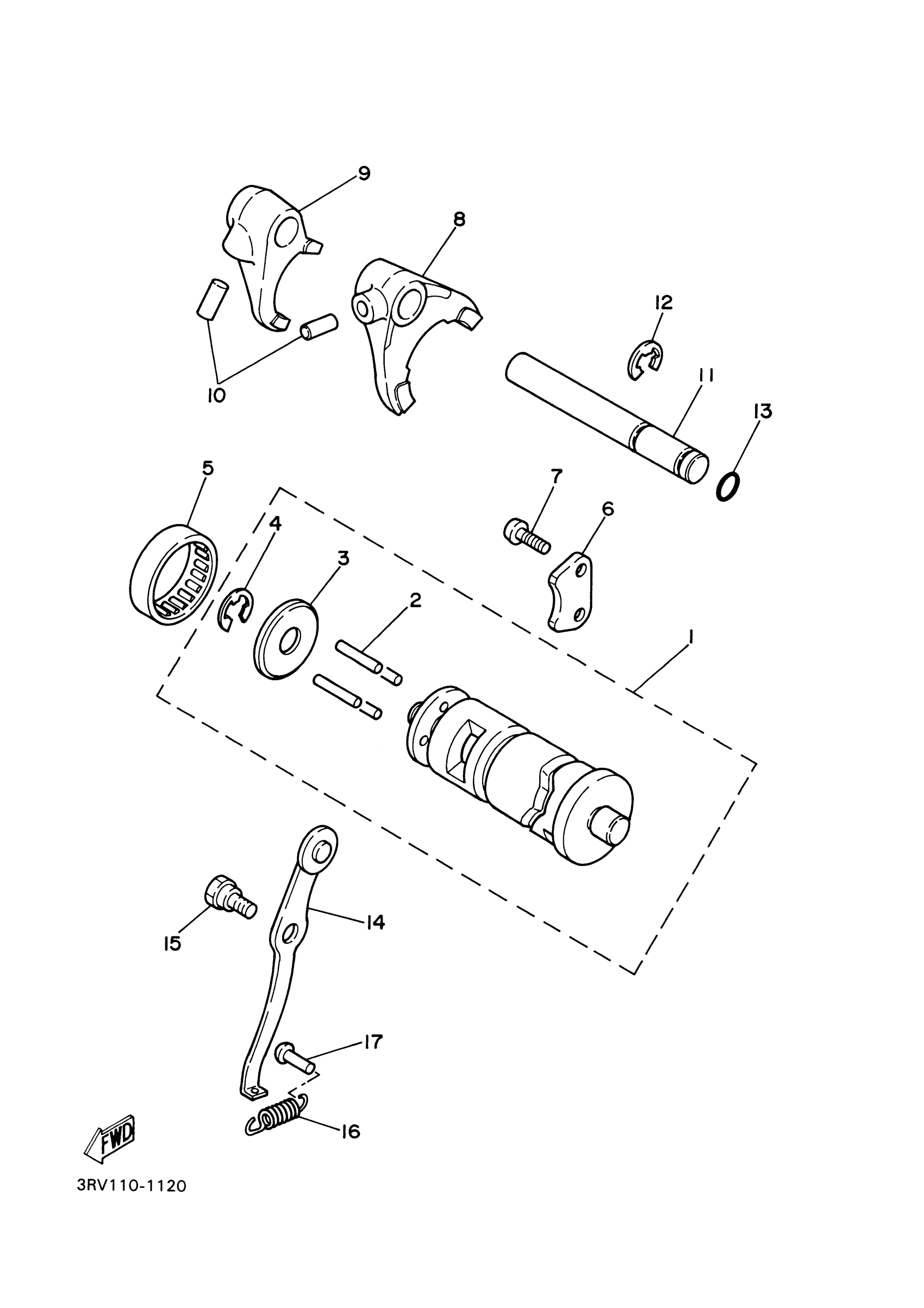

Yamaha PW80R (PW80) 3RVG 2003 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

21W-18540-01-00

Unavailable

2

PIN,DOWEL (620)

93604-22050-00

$8.49

3

PLATE, SIDE

296-18561-00-00

$6.99

4

CIRCLIP(J51)

99080-09600-00

$2.55

5

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

$34.99

6

PLATE, STOPPER

296-18562-01-00

$6.99

7

SCREW, PAN

98507-06014-00

$8.49

8

FORK, SHIFT 1

58H-18511-00-00

Unavailable

9

FORK, SHIFT 2

58H-18512-00-00

Unavailable

10

PIN,DOWEL(296)

93606-14081-00

$4.24

11

BAR SHIFT FORK GUIDE

2N8-18531-00-00

Unavailable

12

CIRCLIP

99006-10600-00

$9.49

13

O-RING (1J7)

93210-09350-00

$7.49

14

STOPPER LEVER ASSY

296-18140-03-00

Unavailable

15

BOLT

90109-06239-00

$7.49

16

SPRING, TENSION

90506-10006-00

Unavailable

17

HOOK, SPRING

132-16346-00-00

Unavailable
