Description

Price

1

EXHAUST PIPE ASSY 1

21W-14610-02-00

Unavailable

2

GASKET, EXHAUST PIPE

3RV-14623-00-00

$22.99

3

BOLT, HEXAGON

97017-08020-00

$9.49

4

WASHER(JN5)

92907-08100-00

$8.49

5

PROTECTOR ASSY

21W-14708-00-00

$129.99

6

SCREW, PAN HEAD(3AH)

98507-05006-00

$3.55

7

WASHER, PROTECTOR

3RV-14766-00-00

$6.99

8

GASKET, MUFFLER

4X4-14714-00-00

$5.49

9

CLIP (4X4)

90467-22048-00

$8.49

10

BOLT, HEXAGON

97017-08016-00

$8.49

11

WASHER(JN5)

92907-08100-00

$8.49

12

WASHER(6TA)

92907-08600-00

$3.03

13

SILENCER, EXHAUST

21W-14753-02-00

$214.99

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

WASHER(JN5)

92907-08100-00

$8.49

16

WASHER(6TA)

92907-08600-00

$3.03

17

PROTECTOR, SILENCER

21W-14758-00-00

Unavailable

18

SCREW, PAN HEAD(3AH)

98507-05006-00

$3.55

19

WASHER, PROTECTOR

3RV-14766-00-00

$6.99

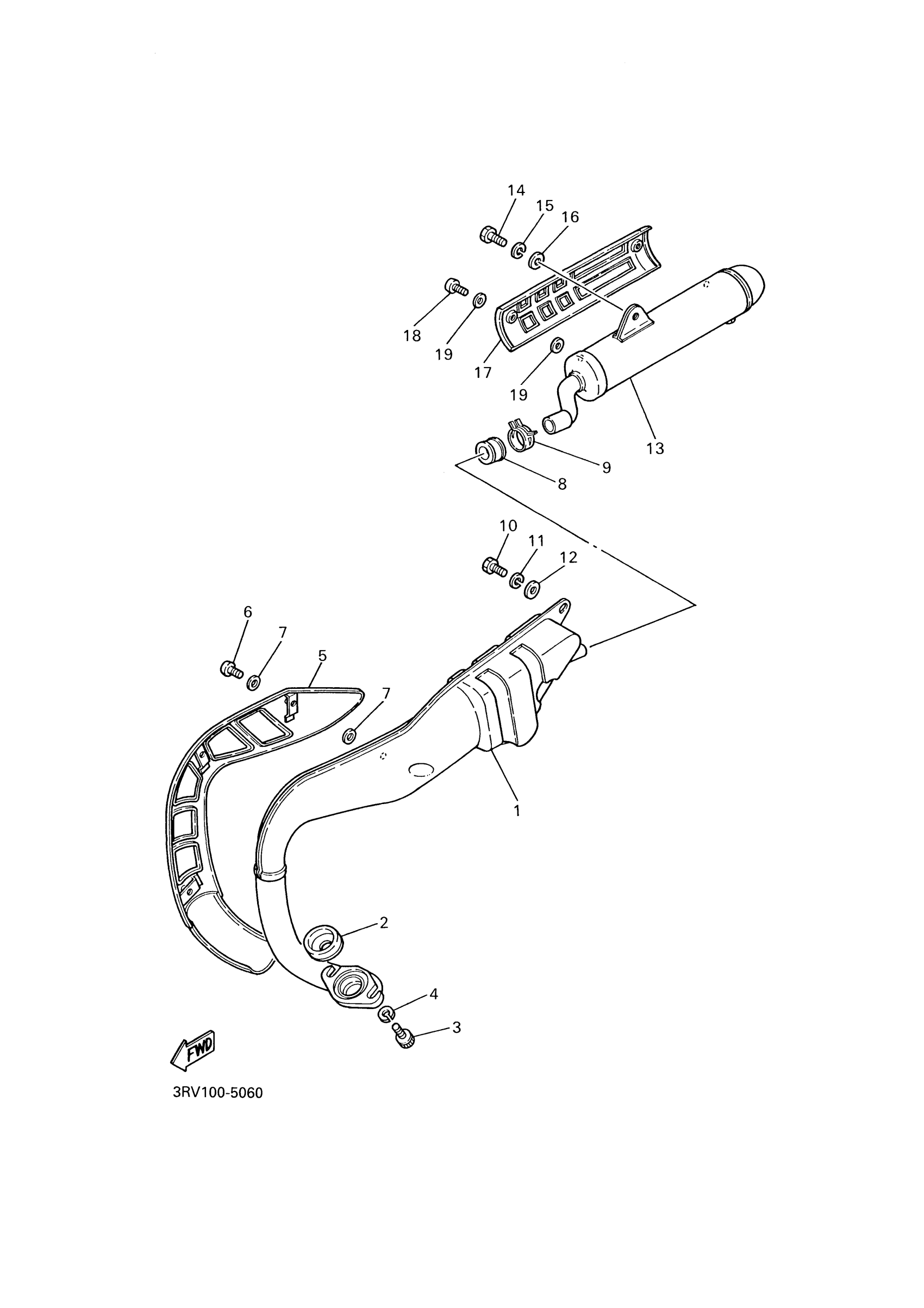

Yamaha PW80R (PW80) 3RVG 2003 EXHAUST Diagram

EXHAUST PIPE ASSY 1

GASKET, EXHAUST PIPE

BOLT, HEXAGON

WASHER(JN5)

PROTECTOR ASSY

SCREW, PAN HEAD(3AH)

WASHER, PROTECTOR

GASKET, MUFFLER

CLIP (4X4)

BOLT, HEXAGON

WASHER(JN5)

WASHER(6TA)

SILENCER, EXHAUST

BOLT, HEXAGON

WASHER(JN5)

WASHER(6TA)

PROTECTOR, SILENCER

SCREW, PAN HEAD(3AH)

WASHER, PROTECTOR
