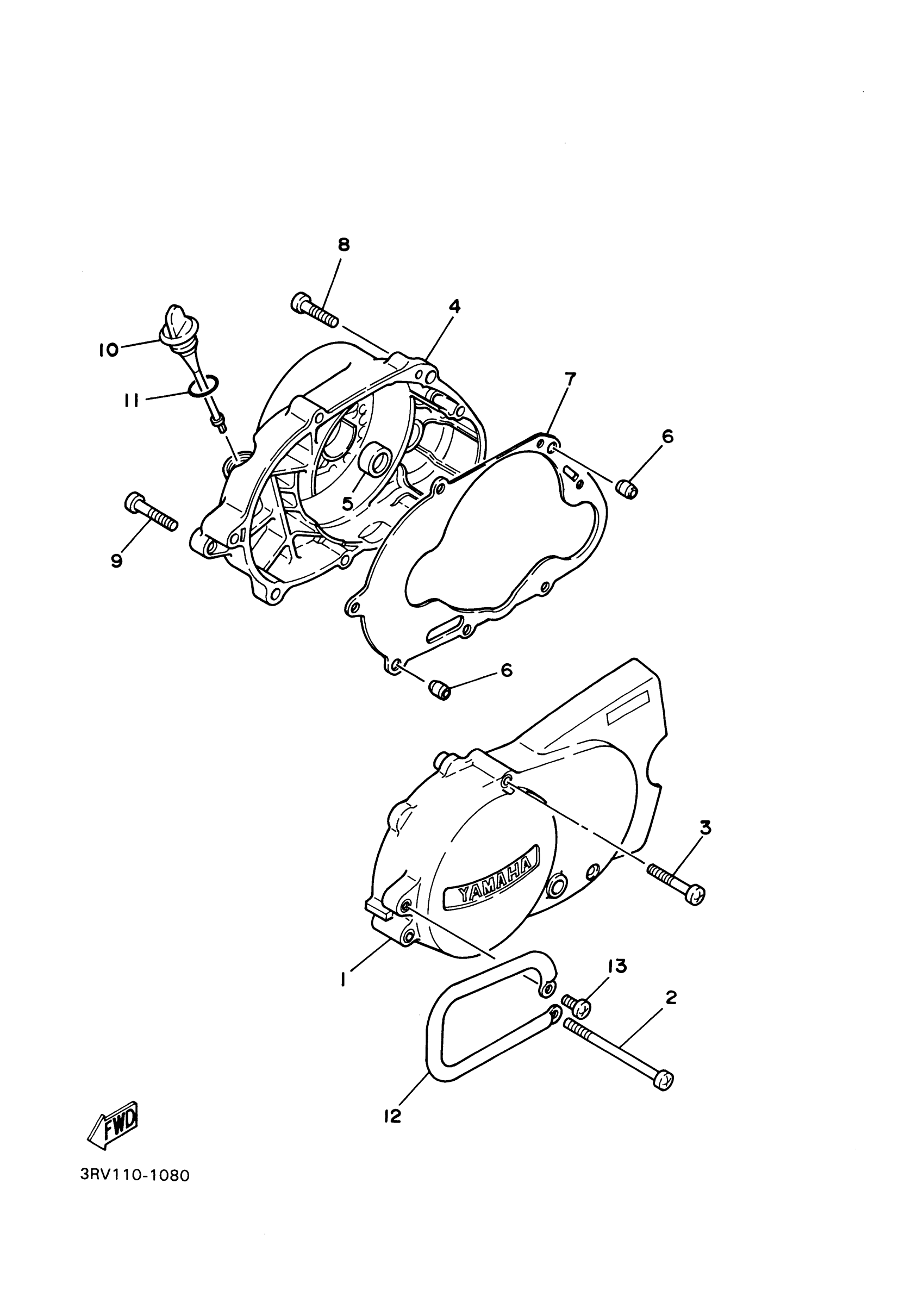

Yamaha PW80R (PW80) 3RVG 2003 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

21W-15411-00-00

$111.99

2

SCREW, PAN

98507-06100-00

$8.49

3

SCREW, PAN

98507-06045-00

$3.14

4

COVER, CRANKCASE 2

5R7-15421-00-00

Unavailable

5

OIL SEAL (10.8X20X9-517)

93104-11053-00

$7.49

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

GASKET, CRANKCASE COVER 1

4AW-15451-00-00

$19.99

8

SCREW, PAN

98507-06035-00

$8.49

9

SCREW, PAN

98507-06040-00

$3.22

10

PLUG, OIL LEVEL

517-15362-10-00

$17.49

11

O-RING (646)

93210-19123-00

Unavailable

12

PROTECTOR

4BC-15491-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78
