Description

Price

1

FUEL TANK COMP.

3RV-24110-20-00

$283.99

2

GROMMET (4V1)

90480-18290-00

$8.49

3

COLLAR (1T2)

90387-07598-00

$5.60

4

BOLT, HEXAGON

97017-06030-00

$3.61

5

WASHER, SPRING

92907-06100-00

$4.25

6

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

7

CAP ASSY

2FG-24610-10-00

$64.99

8

HOSE (L600)

90445-083J5-00

$10.49

9

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

10

SEAL, COCK

3AJ-24534-01-00

$10.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

O-RING

4X8-24512-00-00

$8.99

13

VALVE PACKING

3AC-24523-00-00

$12.99

14

WASHER, PLATE(3MB)

90202-05187-00

$1.38

15

SCREW 256241430000

90149-06011-00

$5.60

16

HOSE (L420)

90445-092K1-00

Unavailable

17

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

18

DAMPER, LOCATING

2X6-24183-00-00

Unavailable

19

CLIP 101235600

90467-08003-00

Unavailable

20

GRAPHIC SET

3RV-24240-80-00

Unavailable

21

WASHER PLATE 137241870000

90201-06072-00

Unavailable

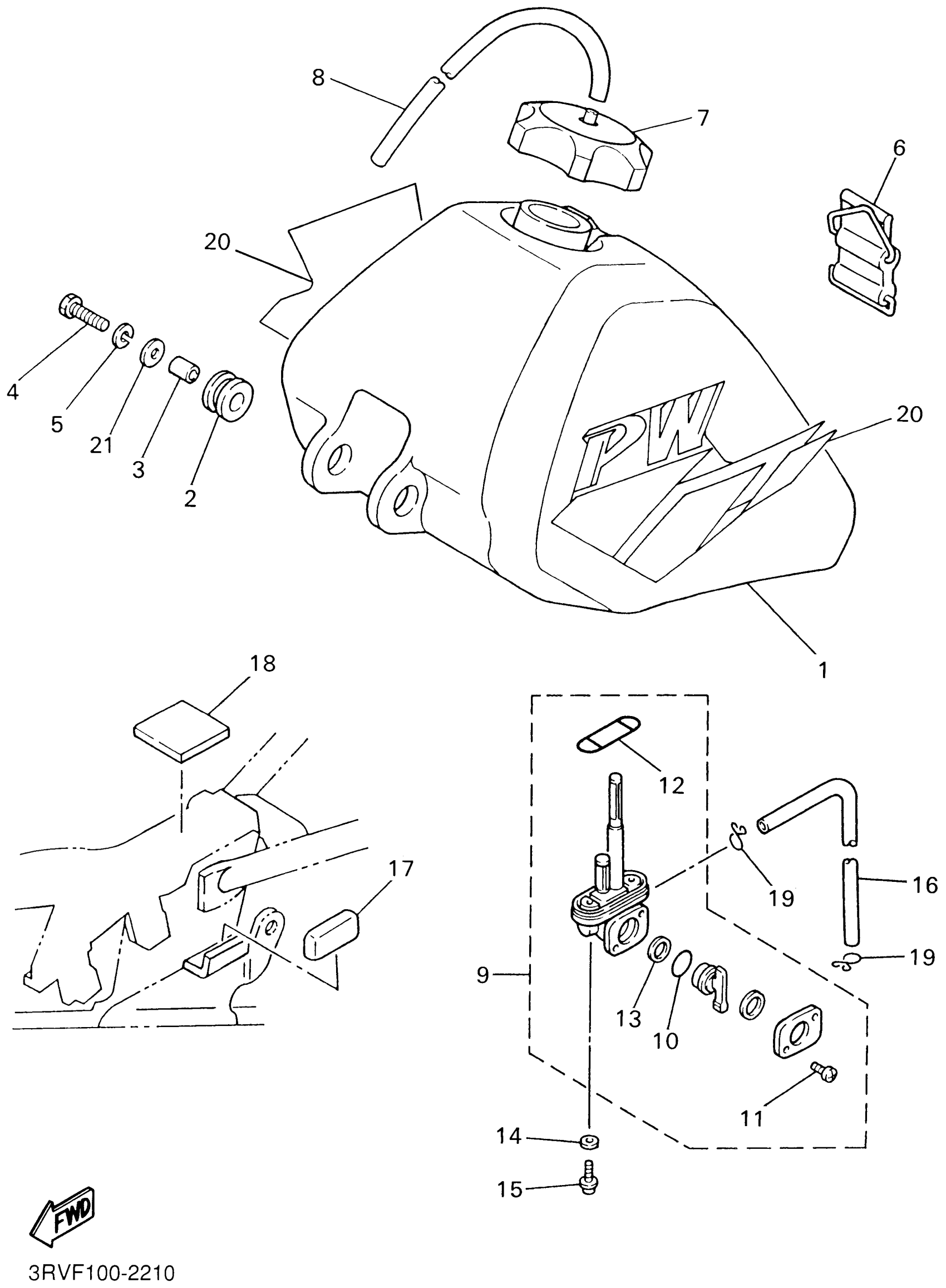

Yamaha PW80P (PW80) 3RVF 2002 FUEL TANK Diagram

FUEL TANK COMP.

GROMMET (4V1)

COLLAR (1T2)

BOLT, HEXAGON

WASHER, SPRING

BAND, TANK FITTING 1

CAP ASSY

HOSE (L600)

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L420)

DAMPER, LOCATING 1

DAMPER, LOCATING

CLIP 101235600

GRAPHIC SET

WASHER PLATE 137241870000
