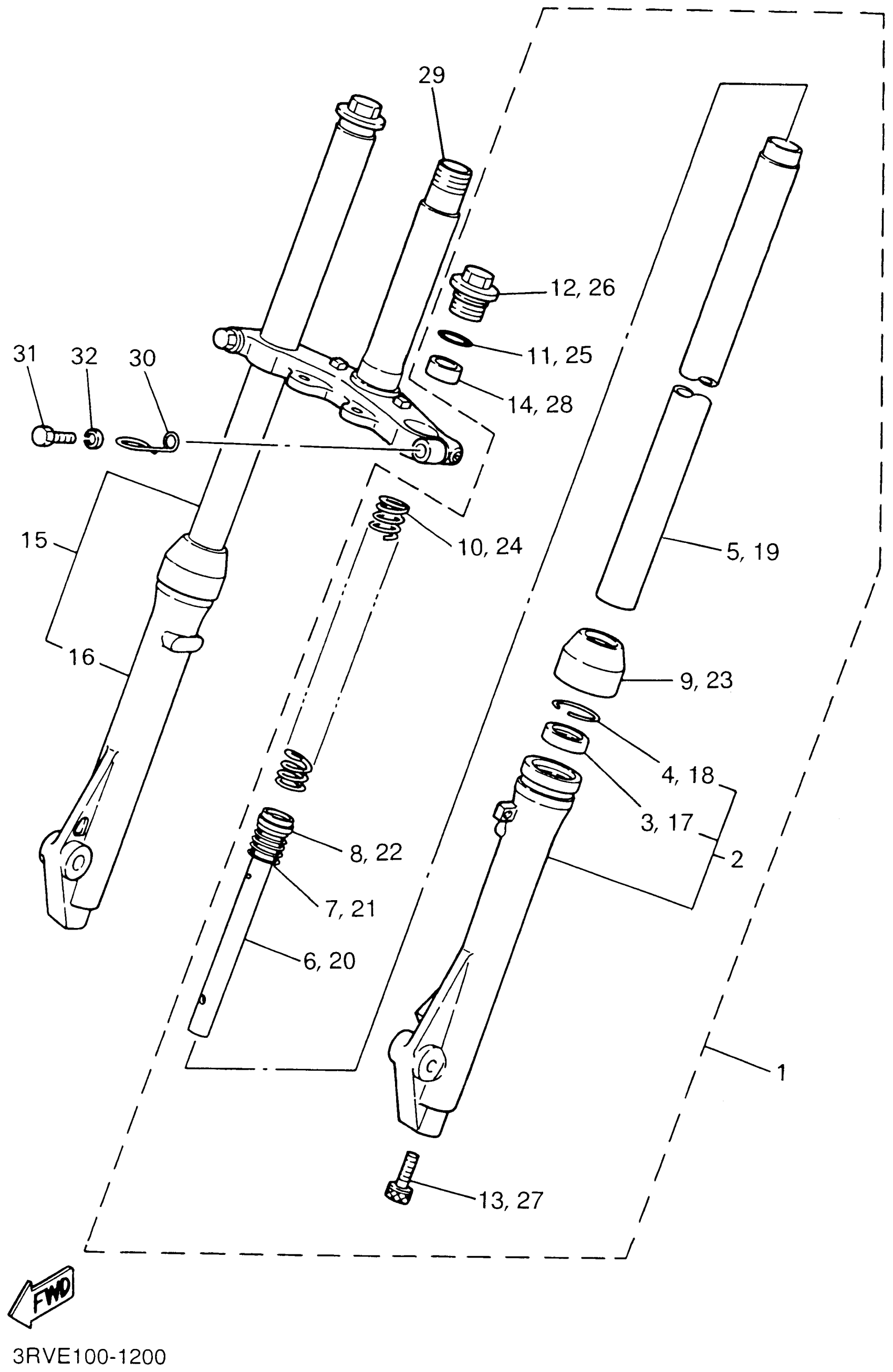

Yamaha PW80P (PW80) 3RVF 2002 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

3RV-23102-01-00

Unavailable

2

TUBE, OUTER (LEFT)

3RV-23126-01-00

Unavailable

3

OIL SEAL

1RY-23145-00-00

$32.99

4

CLIP, OIL SEAL

3M7-23156-00-00

$7.99

5

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

6

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

7

SPRING, REBOUND

2J5-23151-00-00

$7.99

8

RING, PISTON

2J5-23157-00-00

$7.99

9

SEAL, DUST

3M7-23144-00-00

$19.99

10

SPRING, FRONT FORK

21W-23141-00-00

$29.99

11

O-RING(36Y)

93210-17570-00

$7.49

12

BOLT, CAP

3M7-23111-01-00

Unavailable

13

BOLT

3M7-23181-00-00

$8.99

14

BOLT, INNER TUBE

3M7-23142-00-00

$15.49

15

FRONT FORK ASSY (R.H)

3RV-23103-01-00

$184.99

16

TUBE, OUTER (RIGHT)

3RV-23136-01-00

Unavailable

17

OIL SEAL

1RY-23145-00-00

$32.99

18

CLIP, OIL SEAL

3M7-23156-00-00

$7.99

19

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

20

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

21

SPRING, REBOUND

2J5-23151-00-00

$7.99

22

RING, PISTON

2J5-23157-00-00

$7.99

23

SEAL, DUST

3M7-23144-00-00

$19.99

24

SPRING, FRONT FORK

21W-23141-00-00

$29.99

25

O-RING(36Y)

93210-17570-00

$7.49

26

BOLT, CAP

3M7-23111-01-00

Unavailable

27

BOLT

3M7-23181-00-00

$8.99

28

BOLT, INNER TUBE

3M7-23142-00-00

$15.49

29

UNDER BRACKET COMP.

5HN-23340-00-00

Unavailable

30

HOLDER, CABLE 1

3R0-23318-00-00

Unavailable

31

BOLT

451-23346-01-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
