Description

Price

1

CRANKSHAFT ASSY

4BC-11400-00-00

Unavailable

2

CRANK 1

4BC-11412-00-00

Unavailable

3

PIN, CRANK

2Y1-11681-00-00

Unavailable

4

. BEARING

93310-420F2-00

Unavailable

5

ROD, CONNECTING

1W7-11651-00-00

$68.99

6

CRANK 2

1HA-11422-00-00

Unavailable

7

WASHER, CRANK PIN (1H9)

90209-20159-00

$5.60

8

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

9

WASHER (492)

90201-12535-00

Unavailable

10

NUT, HEXAGON

95337-12600-00

$8.49

11

O-RING(3KX)

93210-180A6-00

$7.49

12

COLLAR (132-16136-01)

90387-20603-00

$20.99

13

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

14

OIL SEAL (25X40X8-531)

93103-25098-00

$18.99

15

OIL SEAL

93103-32183-00

$35.99

16

PISTON (STD) 0.97

3E5-11631-00-97

Unavailable

16

PISTON (1ST O/S)

3E5-11635-00-00

Unavailable

16

PISTON (2ND O/S)

3E5-11636-00-00

Unavailable

17

PIN, PISTON

527-11633-00-00

Unavailable

18

PISTON RING SET (STD)

14N-11603-00-00

Unavailable

18

PISTON RING SET (0.25MM O/S)

14N-11604-00-00

Unavailable

18

PISTON RING SET (0.50MM O/S)

14N-11605-00-00

Unavailable

19

CIRCLIP 132116340000

93450-13022-00

Unavailable

20

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

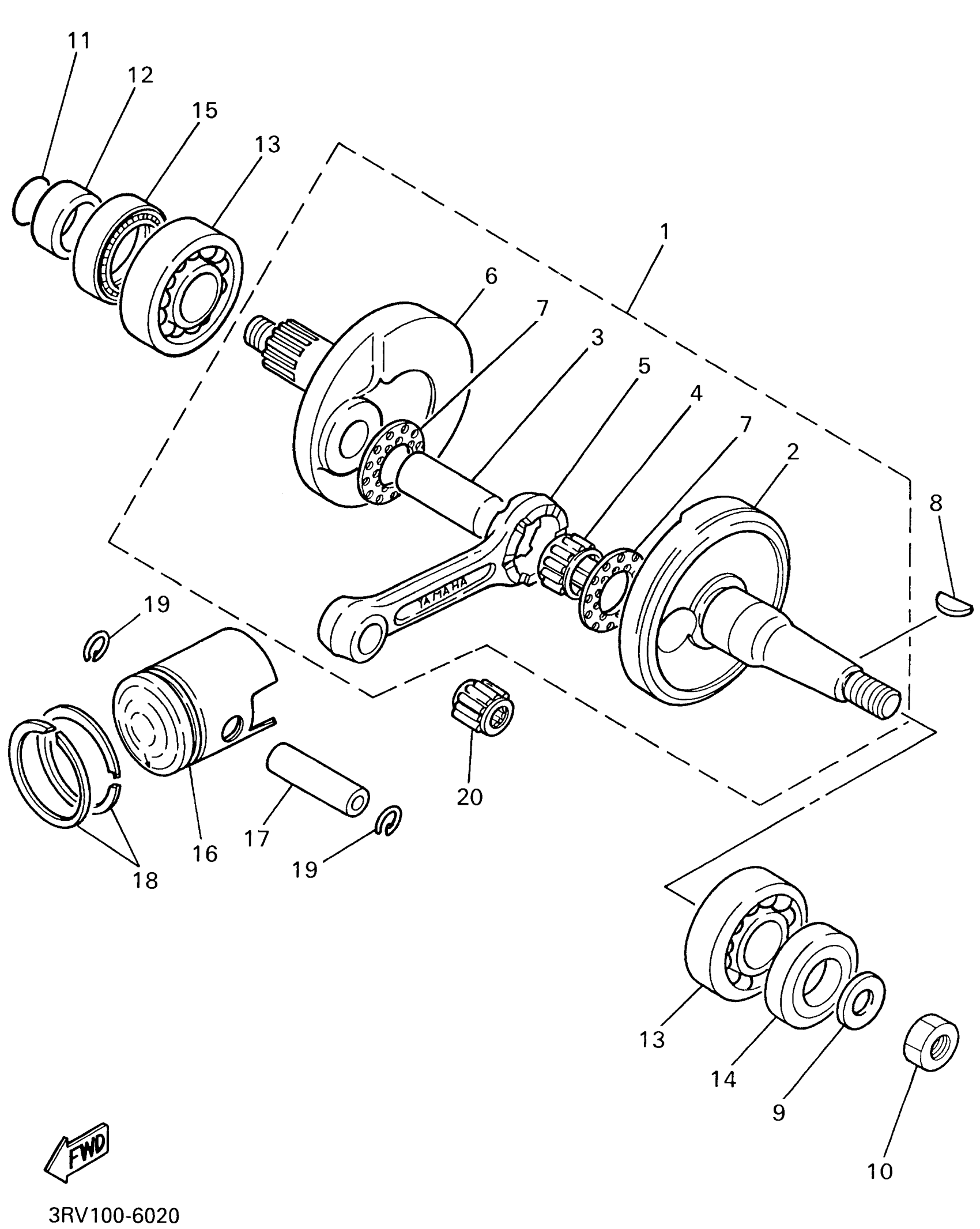

Yamaha PW80P (PW80) 3RVF 2002 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

CRANK 1

PIN, CRANK

. BEARING

ROD, CONNECTING

CRANK 2

WASHER, CRANK PIN (1H9)

KEY WOODRUFF 146115450000

WASHER (492)

NUT, HEXAGON

O-RING(3KX)

COLLAR (132-16136-01)

BRG,R-B 6205C4 52MM 130G KY

OIL SEAL (25X40X8-531)

OIL SEAL

PISTON (STD) 0.97

PISTON (1ST O/S)

PISTON (2ND O/S)

PIN, PISTON

PISTON RING SET (STD)

PISTON RING SET (0.25MM O/S)

PISTON RING SET (0.50MM O/S)

CIRCLIP 132116340000

BRG,CYL-CAL ROLLER 5G TM
