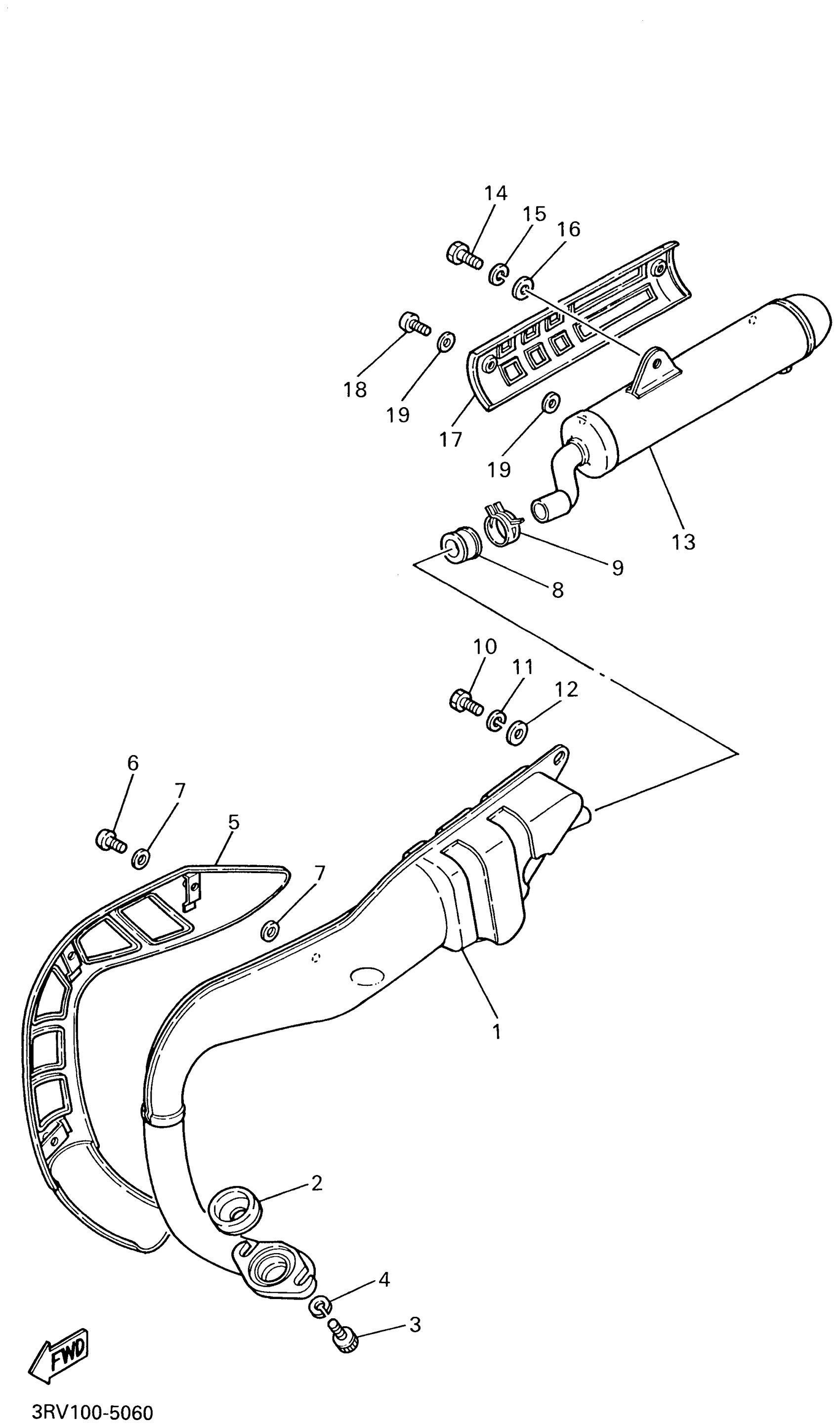

Yamaha PW80N1 (PW80) 3RVE 2001 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

21W-14610-02-00

Unavailable

2

GASKET, EXHAUST PIPE

3RV-14623-00-00

$17.03

3

BOLT, HEXAGON

97017-08020-00

$5.96

4

WASHER(JN5)

92907-08100-00

$5.59

5

PROTECTOR ASSY

21W-14708-00-00

$104.47

6

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.52

7

WASHER, PROTECTOR

3RV-14766-00-00

$5.37

8

GASKET, MUFFLER

4X4-14714-00-00

$4.40

9

CLIP (4X4)

90467-22048-00

$5.75

10

BOLT, HEXAGON

97017-08016-00

$5.79

11

WASHER(JN5)

92907-08100-00

$5.59

12

WASHER(6TA)

92907-08600-00

$2.34

13

SILENCER, EXHAUST

21W-14753-02-00

$209.32

14

BOLT, HEXAGON

97017-08016-00

$5.79

15

WASHER(JN5)

92907-08100-00

$5.59

16

WASHER(6TA)

92907-08600-00

$2.34

17

PROTECTOR, SILENCER

21W-14758-00-00

Unavailable

18

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.52

19

WASHER, PROTECTOR

3RV-14766-00-00

$5.37
