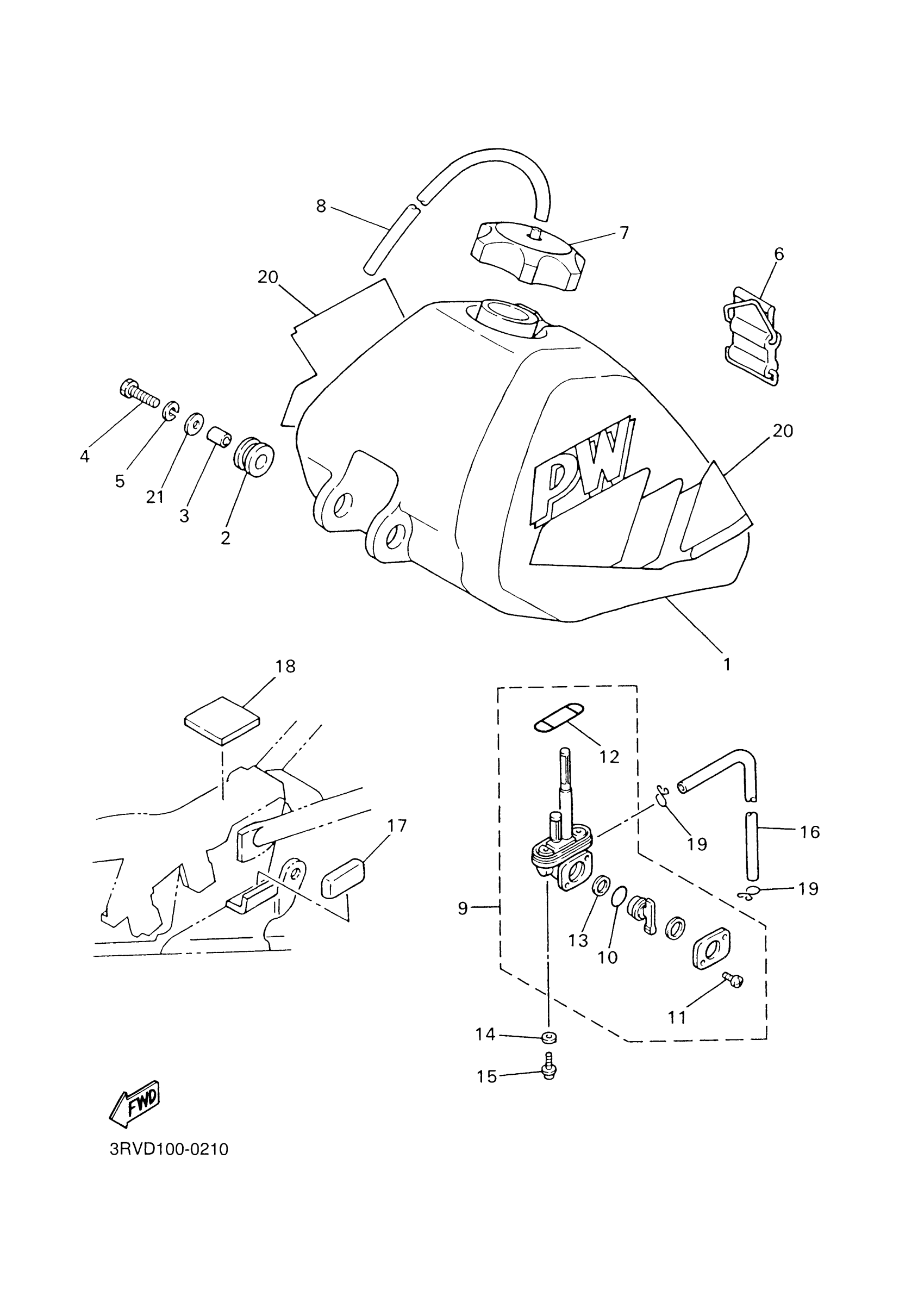

Yamaha PW80M1 (Y-ZINGER) 3RVD 2000 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3RV-24110-20-00

$271.55

2

GROMMET (4V1)

90480-18290-00

$6.54

3

COLLAR (1T2)

90387-07598-00

$4.51

4

BOLT, HEXAGON

97017-06030-00

$2.80

5

WASHER, SPRING

92907-06100-00

$0.98

6

BAND, TANK FITTING 1

59V-24173-00-00

$14.81

7

CAP ASSY

2FG-24610-10-00

$56.52

8

HOSE (L600)

90445-083J5-00

$7.13

9

FUEL COCK ASSY 1

23F-24500-20-00

$34.50

10

SEAL, COCK

3AJ-24534-01-00

$8.69

11

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

12

O-RING

4X8-24512-00-00

$6.25

13

VALVE PACKING

3AC-24523-00-00

$10.82

14

WASHER, PLATE(3MB)

90202-05187-00

$1.01

15

SCREW 256241430000

90149-06011-00

$1.56

16

HOSE (L420)

90445-092K1-00

Unavailable

17

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

18

DAMPER, LOCATING

2X6-24183-00-00

$1.68

19

CLIP 101235600

90467-08003-00

Unavailable

20

GRAPHIC SET

3RV-24240-60-00

Unavailable

21

WASHER PLATE 137241870000

90201-06072-00

Unavailable
