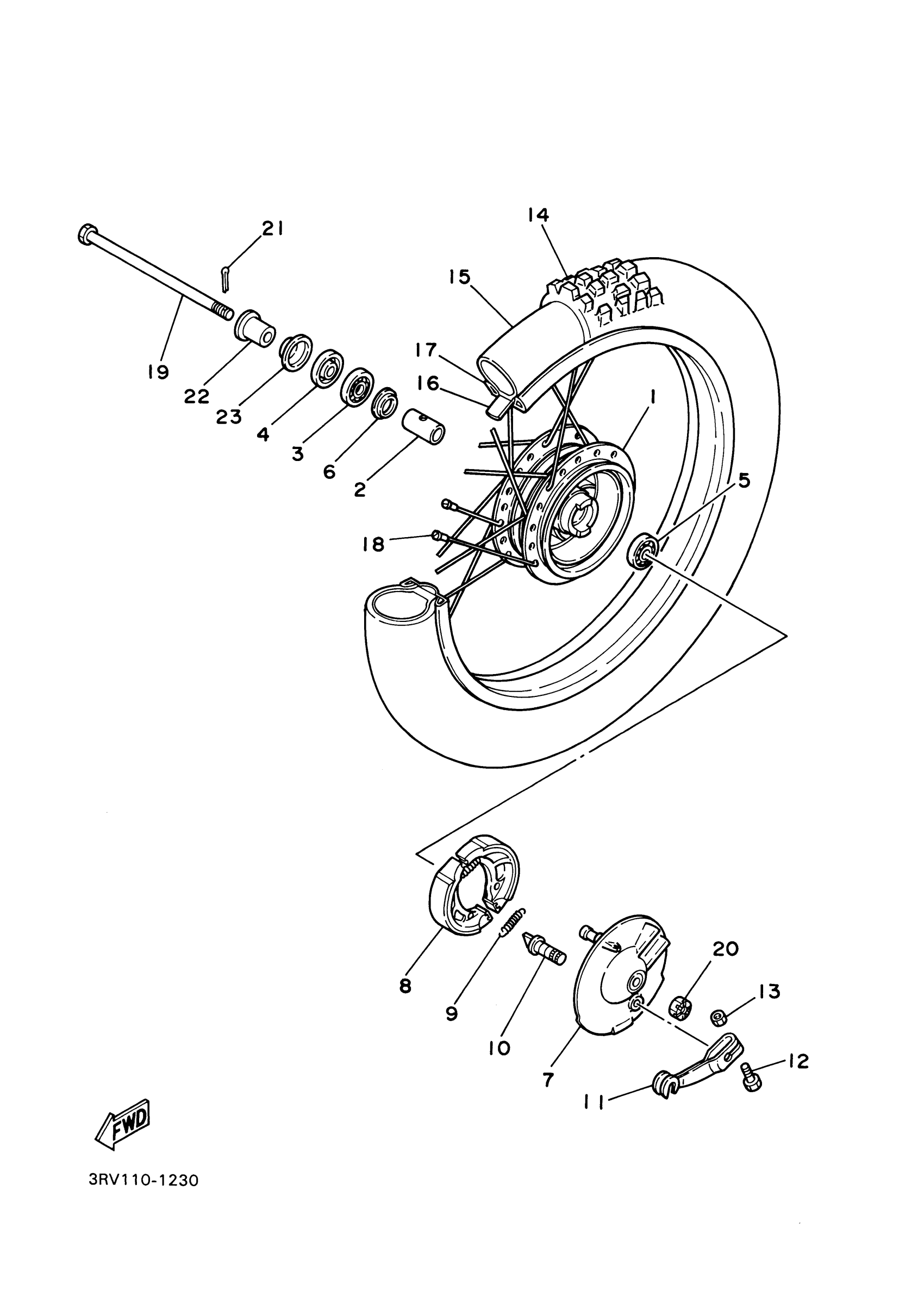

Yamaha PW80M1 (Y-ZINGER) 3RVD 2000 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

451-25111-00-98

$111.99

2

SPACER 451251170000

90560-10103-00

$17.99

3

BEARING

93306-20004-00

Unavailable

4

OIL SEAL (17X30X8.5-451)

93106-17006-00

$11.49

5

BEARING (3R0)

93306-20009-00

$44.99

6

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

7

PLATE, BRAKE SHOE

3R0-25121-00-98

Unavailable

8

BRAKE SHOE KIT

3EC-W253A-00-00

$32.99

9

SPRING TENSION 451251330000

90506-14081-00

$8.49

10

CAMSHAFT

1YT-25351-00-00

Unavailable

11

LEVER, CAM SHAFT

451-25155-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

NUT(6TA)

95317-06600-00

$3.55

14

TIRE

94125-141A6-00

Unavailable

15

TUBE (3L8)

94220-14143-00

$36.99

16

BAND, RIM (1K8)

94327-14076-00

Unavailable

17

RIM

94414-14227-00

Unavailable

18

SPOKE SET, FRONT

3R0-25104-00-00

Unavailable

19

AXLE, WHEEL

99999-02188-00

Unavailable

20

NUT 3532518200

90171-10004-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

COLLAR (3R0)

90387-10744-00

Unavailable

23

COVER, HUB DUST

451-25118-00-00

Unavailable
