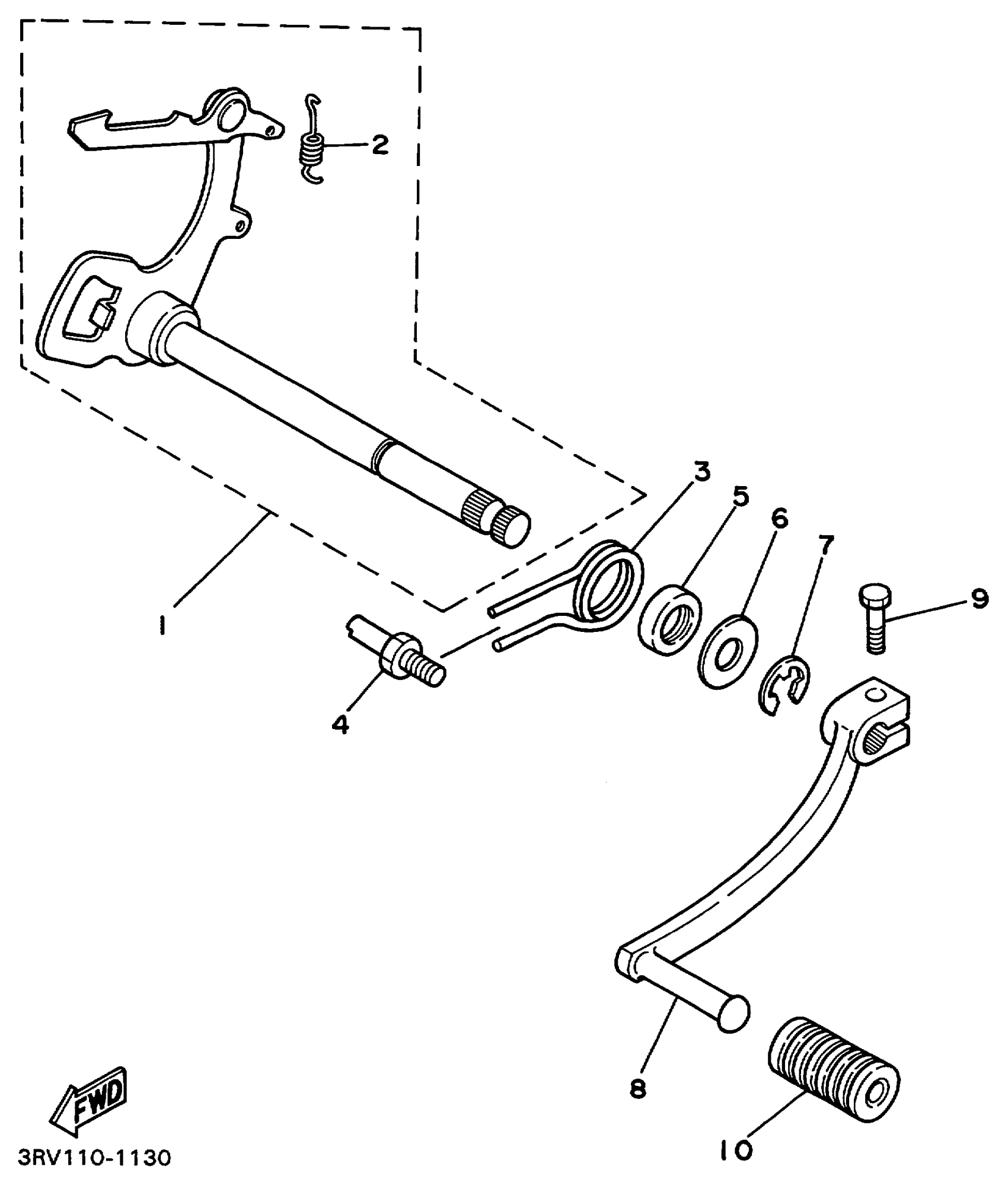

Yamaha PW80L1 (PW80) 3RVC 1999 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

58H-18101-04-00

$54.44

2

SPRING, TENSION (296)

90506-08122-00

$5.42

3

SPRING, TORSION(3KX)

90508-320A6-00

$6.74

4

STOPPER, SCREW

278-18127-01-00

$15.32

5

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

6

WASHER, PLATE (353)

90201-12575-00

$5.75

7

CIRCLIP

99006-10600-00

$6.45

8

PEDAL, SHIFT

21W-18111-00-00

$16.06

9

BOLT, HEXAGON

97017-06020-00

$2.37

10

COVER, CHANGE PEDAL

132-18113-01-00

$5.96
