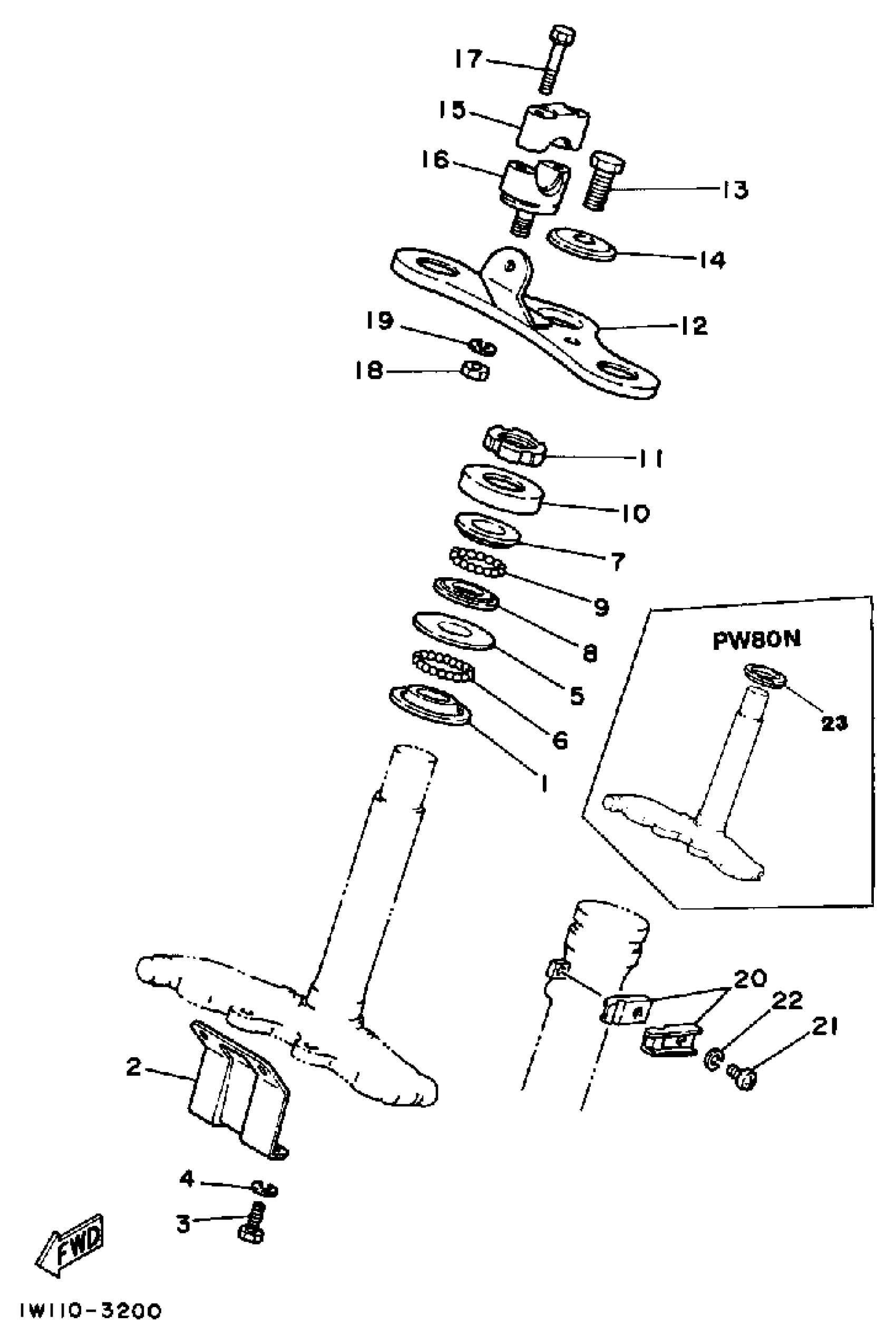

Yamaha PW80K (PW80) 1983 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

STAY, PLATE

21W-23486-00-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

RACE, BALL 2

B6E-23412-00-00

$13.49

6

BALL

93501-04011-00

$8.49

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

RACE, BALL 2

BP2-23412-00-00

$7.49

9

BALL

93503-16003-00

$2.72

10

BALL

93503-16003-00

$2.72

11

NUT (122-23453-00)

90179-25051-00

$33.99

12

CROWN, HANDLE

21W-23435-00-00

Unavailable

13

BOLT 1222345100

90105-10006-00

$11.49

14

WASHER (1YJ)

90209-10160-00

$7.49

15

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

16

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

17

BOLT(3RV)

97014-06035-00

Unavailable

18

NUT(3BM)

95314-10600-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

CLAMP (3R0)

90462-14055-00

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

SEAL, DUST

164-23462-00-00

Unavailable
