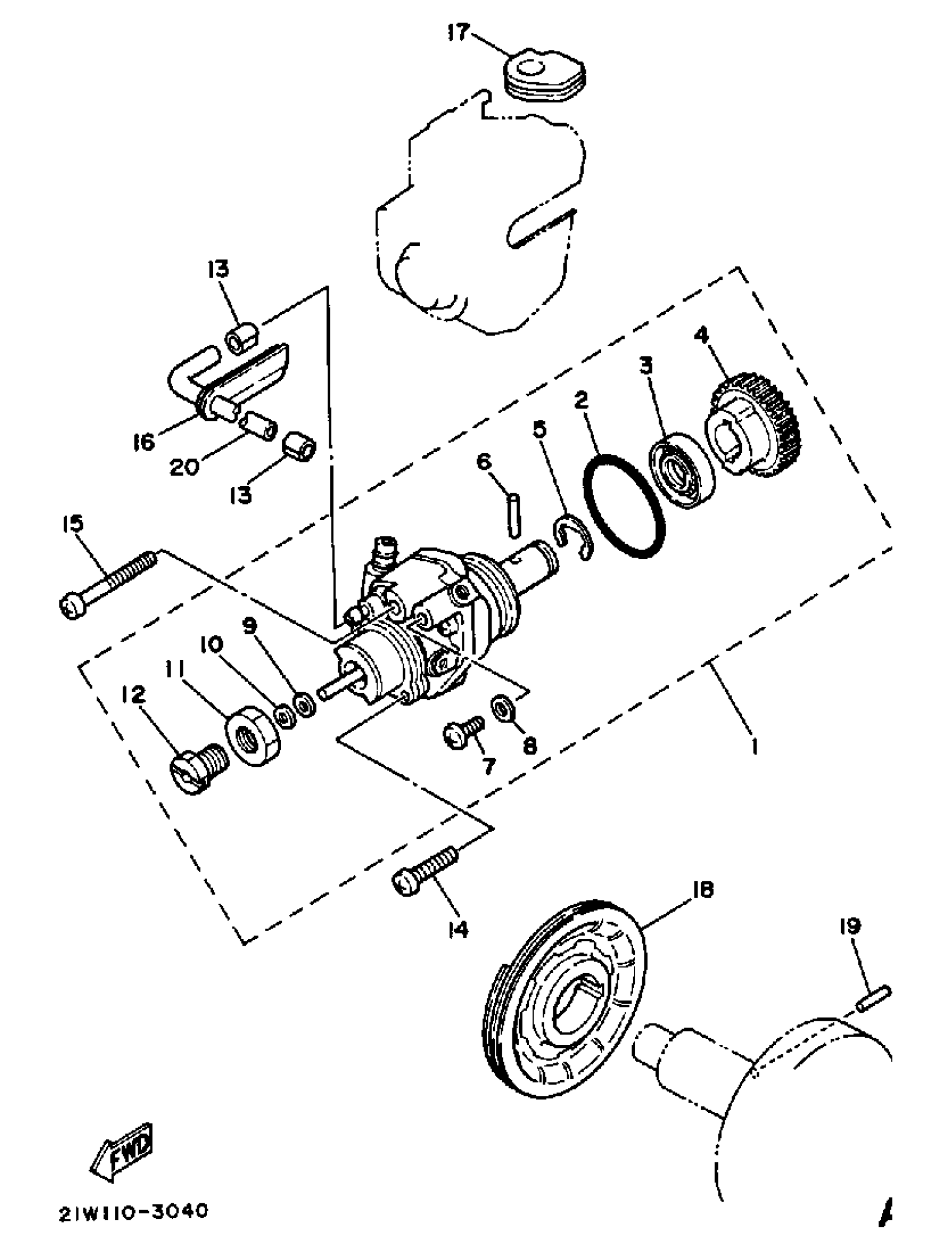

Yamaha PW80K (PW80) 1983 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2T8-13101-01-00

$188.99

1

OIL PUMP ASSY

2T8-13101-01-00

$188.99

2

O-RING

93210-26240-00

$8.49

3

OIL SEAL (J10)

93101-10090-00

$8.49

4

GEAR, WORM WHEEL

2T5-13124-00-00

Unavailable

5

CIRCLIP

99080-07600-00

Unavailable

6

PIN, DOWEL

93603-14026-00

$8.49

7

SCREW (3L5)

90149-04135-00

$1.11

7

SCREW, BIND

98980-04008-00

Unavailable

8

GASKET 137131870000

90430-04004-00

$9.49

9

SHIM

296-13147-00-00

$3.54

10

PLATE, ADJUSTING

384-13138-00-00

$6.99

11

NUT

90170-10105-00

Unavailable

12

BOLT, UNION (527 CKD)

90401-10029-00

Unavailable

13

CLIP (214-13164-00)

90468-02033-00

$8.49

14

SCREW, PAN HEAD

98580-05020-00

Unavailable

15

SCREW, PAN

98507-05035-00

Unavailable

16

GROMMET (384)

90480-10005-00

Unavailable

17

HOLDER, OIL PIPE

384-13174-00-00

Unavailable

18

GEAR, PUMP DRIVE

2W9-13178-00-00

Unavailable

19

. PIN, DOWEL

93603-08072-00

Unavailable

20

PIPE, DELIVERY 1

19E-13161-00-00

Unavailable
