1983 Yamaha PW80 (PW80K) Clutch Diagram

← All diagrams

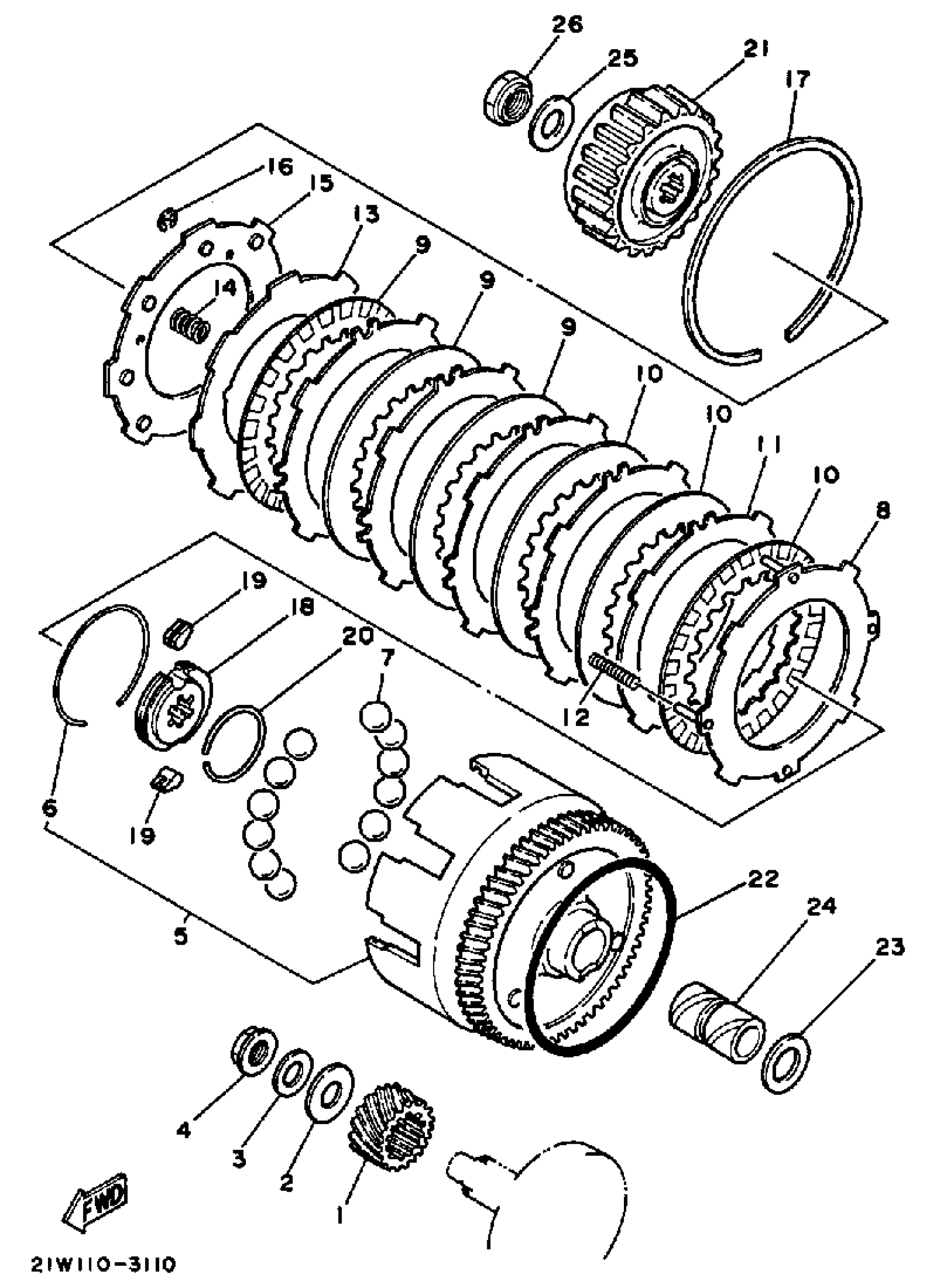

Find the part on the Clutch diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha PW80 (PW80K) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRV GEAR ASSEMBLY

(1W7-16110-00-30)

1
Out of stock

2

WASHER (856)

90201-12317-00

—
Out of stock

3

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

4

NUT(1EE)

90179-12659-00

1
Out of stock

5

PRI DRVN GEAR

(3E5-16150-00-20)

1
Out of stock

5

PRI DRVN GEAR

(3E5-16150-00-40)

1
Out of stock

5

PRIMARY DRIVEN GEAR COMP.

3E5-16150-02-00

—
Out of stock

6

CIRCLIP (3E1)

90468-16090-00

1
Out of stock

7

BALL (5/8INCH) (527 CKD)

93505-08030-00

1
Out of stock

8

PLATE, THRUST WEIGHT

527-16520-10-00

—
Out of stock

9

PLATE, FRICTION

3E5-16521-00-00

1
Out of stock

10

PLATE, FRICTION

3E5-16521-00-00

1
Out of stock

11

PLATE, CLUTCH 1

517-16524-10-00

—
Out of stock

11

PLATE, CLUTCH 2

517-16524-20-00

1
Out of stock

11

PLATE, CLUTCH 3

517-16524-30-00

—
Out of stock

12

SPRING, COMPRESSION (4G2)

90501-10602-00

—
Out of stock

13

PLATE, PRESSURE 1

517-16550-10-00

—
Out of stock

14

SPRING COMPRESSION116165330000

90501-12088-00

—
Out of stock

15

PLATE, PRESSURE 2

517-16561-01-00

—
Out of stock

16

UNAVAILABLE IN PRICE BOOK

93430-03018-00

1
Out of stock

17

CIRCLIP (22F)

93451-08094-00

—
Out of stock

18

BOSS, ONEWAY

517-16180-00-00

—
Out of stock

19

PAWL, ONE WAY

384-15635-00-00

—
Out of stock

20

SPRING, PAWL

2T4-15637-01-00

—
Out of stock

21

BOSS, CLUTCH

527-16571-01-00

—
Out of stock

22

O-RING (353)

93210-98202-00

—
Out of stock

23

PLATE, THRUST

122-16164-00-00

—
Out of stock

24

SPACER (517)

90560-17146-00

—
Out of stock

25

WASHER (517 CLUTCH)

90208-16019-00

—
Out of stock

26

NUT (517 CLUTCH)

90179-16190-00

—
Out of stock
