1983 Yamaha PW80 (PW80K) Carburector Diagram

← All diagrams

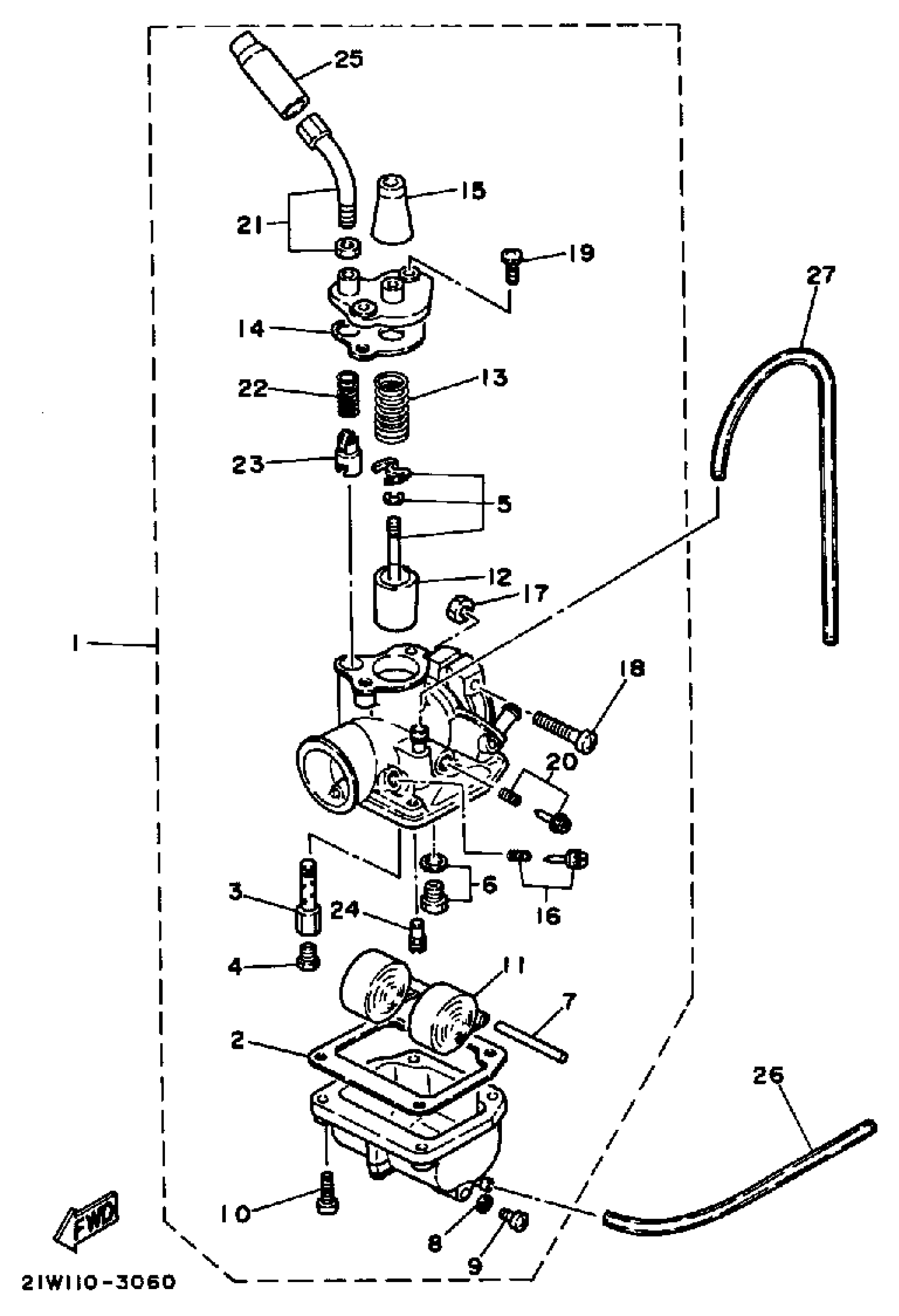

Find the part on the Carburector diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha PW80 (PW80K) Carburector Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

21W-14101-01-00

—
Out of stock

2

GASKET, FLOAT CHAMBER

296-14184-01-00

1
Out of stock

3

NOZZLE, MAIN(FSI)

127-14141-14-00

1
Out of stock

4

JET, MAIN (NO.120)

127-14143-24-00

1
Out of stock

4

JET, MAIN (#125)

127-14143-25-00

1
Out of stock

4

JET, MAIN (NO.130)

127-14143-26-00

1
Out of stock

5

NEEDLE SET

21W-1490J-00-00

—
Out of stock

6

NEEDLE VALVE SET

21W-14107-12-00

—
Out of stock

7

PIN, FLOAT

127-14186-00-00

1
Out of stock

8

WASHER, PLUG SCREW

296-14117-00-00

1
Out of stock

9

SCREW, PAN HEAD(62X)

97885-05010-00

1
Out of stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

1
Out of stock

11

FLOAT

2E9-14185-00-00

1
Out of stock

12

VALVE,THROTTLE 1

18E-14112-25-00

1
Out of stock

13

SPRING, THROTTLE VALVE

296-14131-00-00

—
Out of stock

14

GASKET, MIXING CHAMBER

296-14198-01-00

—
Out of stock

15

CAP

307-14169-10-00

—
Out of stock

16

AIR SCREW SET

36R-14104-00-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

18

SCREW, PAN HEAD

98517-05030-00

—
Out of stock

19

SCREW, PAN HEAD (E56)

98580-04010-00

—
Out of stock

20

THROTTLE SCREW SET

12G-14103-00-00

—
Out of stock

21

ADJUST SCREW SET

21W-14503-00-00

—
Out of stock

22

SPRING, PLUNGER

127-14135-00-00

—
Out of stock

23

PLUNGER, STARTER

58E-14171-00-00

—
Out of stock

24

JET, PILOT (# 15)

193-14142-15-A0

—
Out of stock

25

CAP

1R0-14169-00-00

—
Out of stock

26

HOSE (L200)

90445-05N13-00

—
Out of stock

27

HOSE (L200)

90445-07176-00

—
Out of stock
