1983 Yamaha PW80 (PW80K) Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1983 Yamaha PW80 (PW80K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

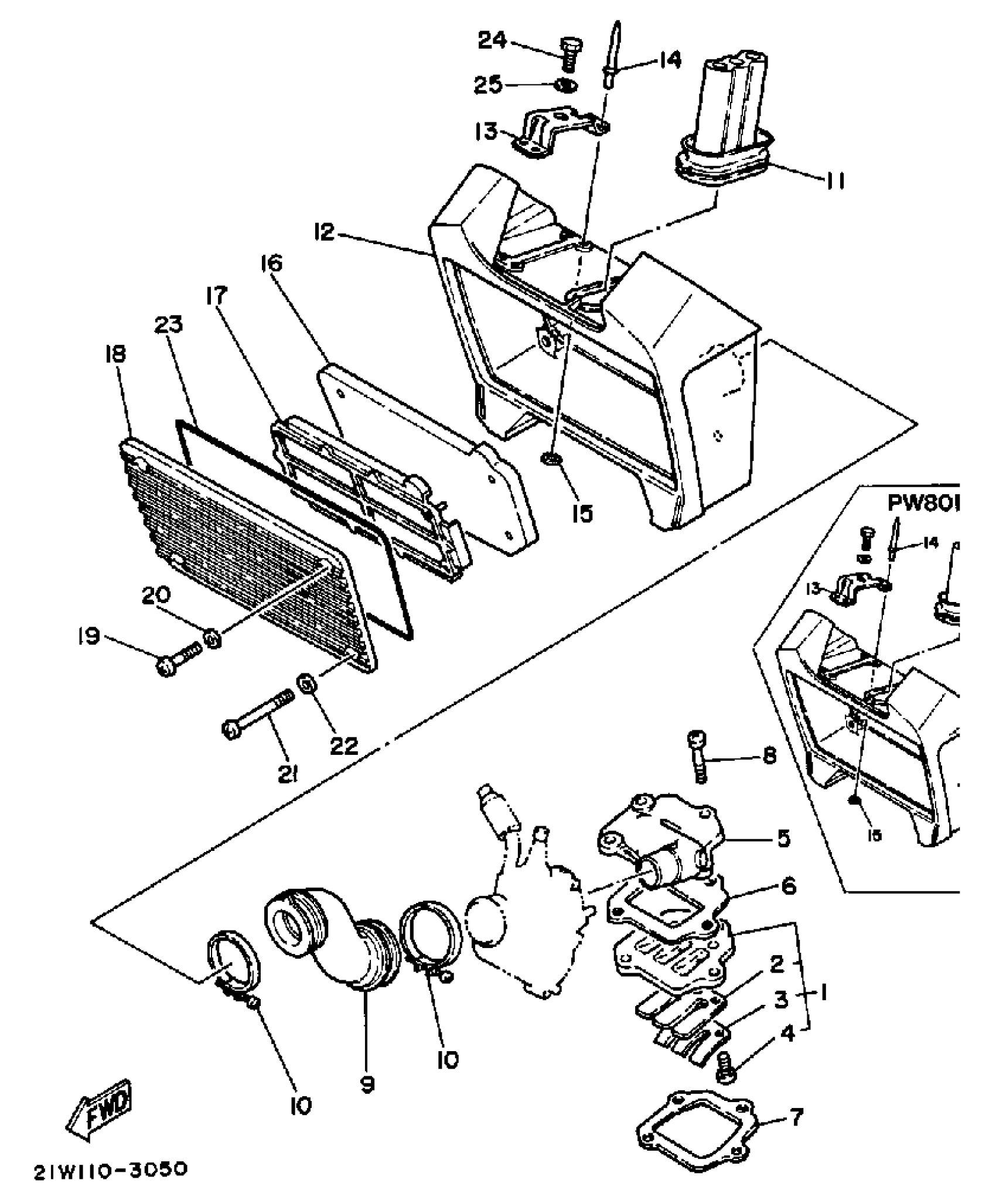

1983 Yamaha PW80 (PW80K) Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

1HA-13610-01-00

1
Out of stock

2

REED, VALVE

56J-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

300-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1
Out of stock

5

MANIFOLD, INTAKE

21W-13555-00-00

—
Out of stock

6

GASKET, VALVE SEAT

300-13622-10-00

1
Out of stock

7

GASKET, VALVE SEAT

300-13621-10-00

1
Out of stock

8

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

9

JOINT, AIR CLEANER 1

21W-14453-00-00

1
Out of stock

10

CLAMP, HOSE

90460-37130-00

1
Out of stock

11

JOINT, SUCTION PIPE

5U8-14454-00-00

—
Out of stock

12

AIR CLEANER CASE (21W-W1441-00)

21W-W1441-00-00

1
Out of stock

13

STAY 1

(21W-14498-00-00)

1
Out of stock

14

RIVET,BLIND

90267-40080-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

16

ELEMENT, AIR CLEANER

21W-14451-00-00

—
Out of stock

17

GUIDE

21W-14458-00-00

1
Out of stock

18

CAP, CLEANER CASE 1

21W-14412-00-00

1
Out of stock

19

SCREW, PAN HEAD(4MY)

98507-05025-00

—
Out of stock

20

WASHER(1RW)

92907-05600-00

—
Out of stock

21

SCREW, PAN HEAD

98507-05050-00

—
Out of stock

22

WASHER(1RW)

92907-05600-00

—
Out of stock

23

SEAL

1VJ-14462-00-00

—
Out of stock

24

BOLT, HEXAGON

97017-08016-00

—
Out of stock

25

WASHER(6TA)

92907-08600-00

—
Out of stock
